VENTILATION HOSE

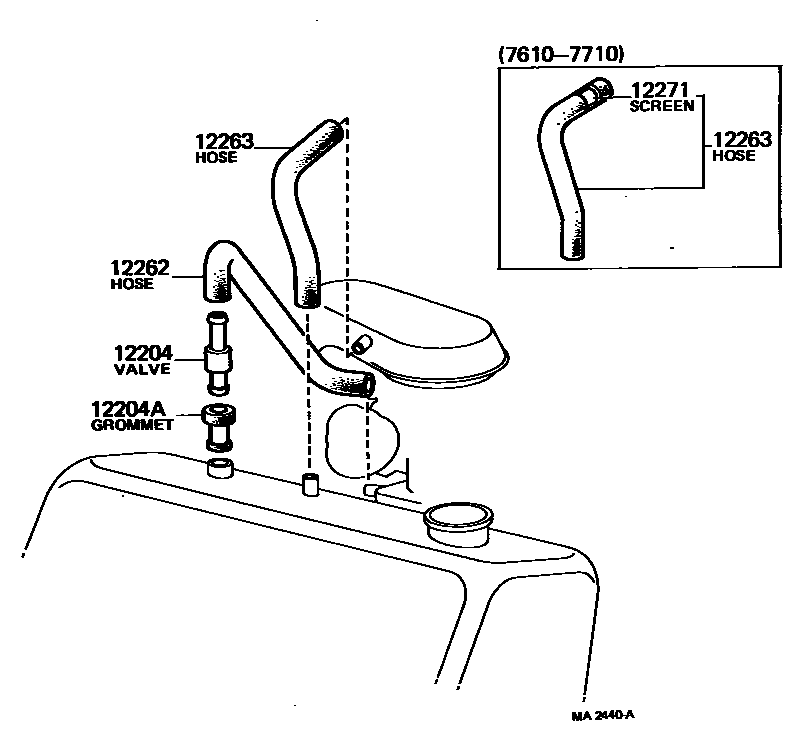

Parts diagram

12204VALVE SUB-ASSY, VENTILATION

main12204-13030i198004-198210

main12204-15020i197910-198008

main12204-24011i197610-198004

main12204-28010i198008-198210

main12204-34010i197610-197910

main12204-35010i198206-198210

main12204-41010i197808-197910

main12204-45010i197910-198206

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-16003i197710-198210

main90480-16157i197610-197710

main90480-18180i197610-198210

12262HOSE, VENTILATION, NO.2

main12261-13030i198108-198210

main12261-24020i197610-197707

main12261-24021i197707-198108

main12261-25011i197610-197910

main12261-25012i197910-198210

main90445-14013i197808-198210

12263HOSE, VENTILATION, NO.3

main12029-24031i197610-197704

main12029-24032i197704-197710

main12262-13010i197910-198210

main12262-26010i197610-197910

main12262-26011i197910-198210

main90445-17035i197710-197910

main90910-05132i197808-198210

12271SCREEN, OIL SEPARATOR

main12271-24010i197610-197710

5 parts on this diagram · 4 diagrams in section
