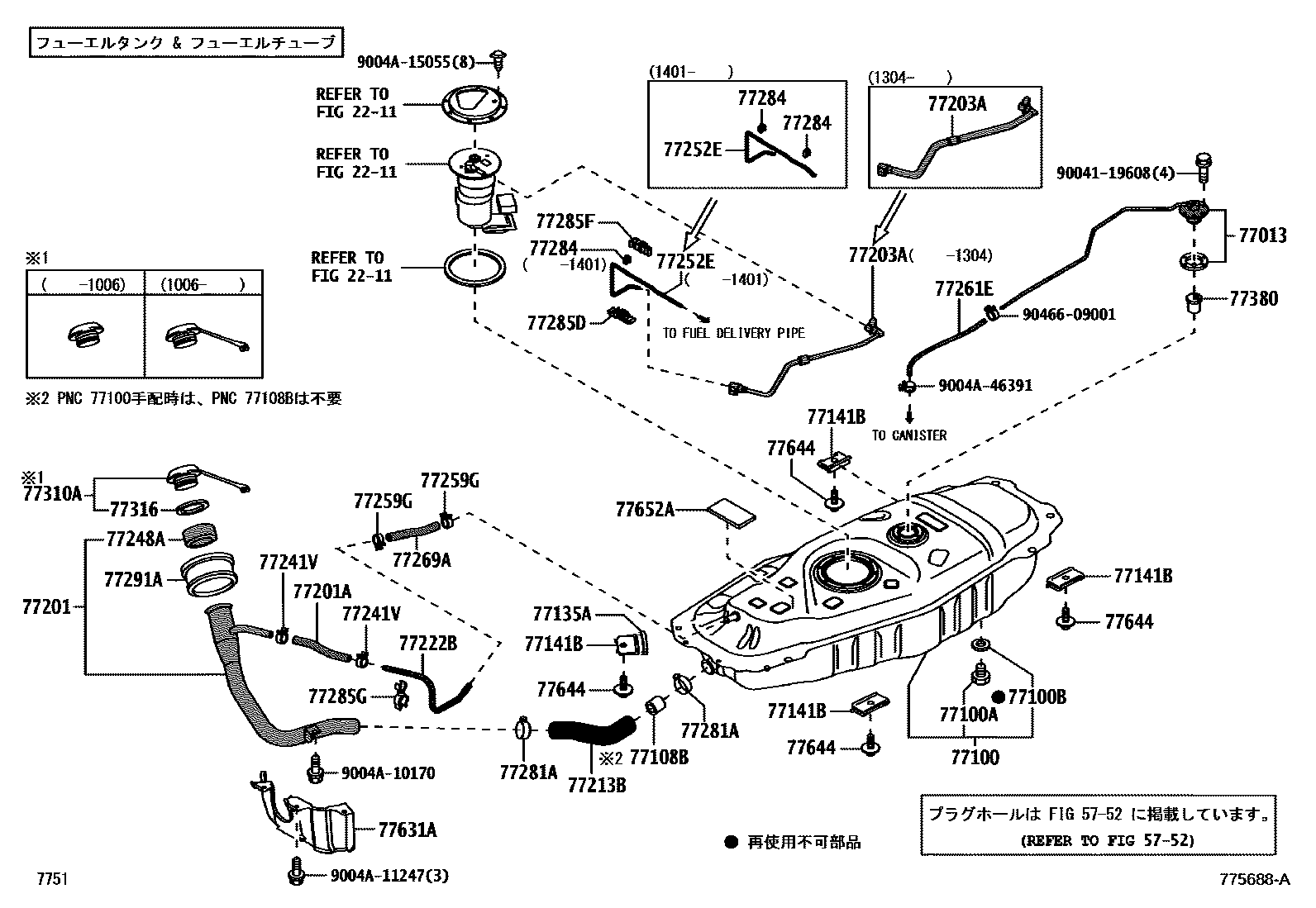

FUEL TANK & TUBE

0001 1TANK&TUBING 0002 1TANK&TUBING 0003 1CANISTER 0004 1CANISTER 0005 1 0006 1FUEL LID CABLE

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

5752HOLE PLUG

→ Go to FIG 57-52

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77013-BZ030iS402200801-202007

77100TANK ASSY, FUEL

main77001-BZ120iS412201007-202007

main77001-BZ610iS403,413..PIC;S403,413..VAN..4FC202007

77100APLUG(FOR FUEL TANK)

main90041-05177iS402200801-201308

main9004A-10137iS402,412201309-202007

77100BGASKET(FOR FUEL TANK)

main90044-30291iS403,413..PIC;S403,413..VAN..4FC202007

77108BVALVE SUB-ASSY, FUEL TANK FILLER CHECK

main77108-B2010iS412201007-202007

77135APROTECTOR, FUEL TANK SIDE

main55358-97206iS402200801-201603

main55358-BZ090iS403,413..PIC;S403,413..VAN..4FC202007

77141BREINFORCEMENT, FUEL TANK FLANGE, NO.1

main77141-BZ090×4iS403,413..PIC;S403,413..VAN..4FC202007

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-BZ100iS402,412200801-202007

main77201-BZ220iS403,413..PIC;S403,413..VAN..4FC202007

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77269-BZ060iS403,413202007-202209

main77269-BZ200iS403,413..PIC;S403,413..VAN..4FC202209

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-BZ050iS402200801-201304

main77203-BZ120iS402,412201304-202007

main77203-BZ250iS403,413..PIC;S403,413..VAN..4FC202209

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-BZ060iS402200801-202007

main77213-BZ280iS403,413..VAN..5F202209-202912

77222BTUBE, FUEL TANK BREATHER, NO.2

main77222-BZ030iS402,412200801-202007

77241VCLIP, TUBE JOINT

main90959-04001×2iS403,413..VAN..5F202007-202912

77248AHOLDER, FUEL TANK FILLER PIPE COVER

main77248-20030iS402,412200801-202007

77252PROTECTOR, FUEL TUBE

main87268-BZ030iS403,413..VAN..5F202007-202912

77252ETUBE, FUEL MAIN, NO.2 (FOR FRONT FUEL MAIN)

main77251-BZ100iS402,412..VAN200801-201401

main77251-BZ101iS402,412..VAN201401-202007

main77251-BZ110iS402,412..PIC200801-201401

main77251-BZ111iS402,412..PIC201401-202007

main77251-BZ350iS403,413..PIC202007

main77251-BZ360iS403,413..VAN..5F202007-202912

77259GCLIP, FUEL HOSE

main90959-04001×2iS402200801-202007

77261EHOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)

main77259-BZ030iS403,413..VAN..5F202007-202912

77269AHOSE, FUEL TANK BREATHER

main77269-BZ060iS412201007-202007

main77269-BZ200iS403,413..PIC;S403,413..VAN..4FC202209

77281ACLAMP, FUEL FILLER PIPE

main90044-60129×2iS402200801-202007

main90460-46005×2iS403,413..VAN..5F202210-202912

77284CLAMP, FUEL TUBE

main90044-64856iS402,412200801-201401

main9004A-46361×2iS402,412201512-202007

77285DCLAMP, FUEL TUBE, NO.1

main77285-BZ010iS403,413..PIC;S403,413..VAN..4FC202007

main90044-64690iS402,412200801-201601

main9004A-46378iS402,412201602-202007

77285FCLAMP, FUEL TUBE, NO.1

main77285-BZ010iS403,413..VAN..5F202007-202912

main90044-64690iS402,412200801-201601

main9004A-46378iS402,412201602-202007

77285GCLAMP, FUEL TUBE, NO.1

main23841-B5010iS403,413..VAN..5F202007-202912

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-BZ040iS402,412200801-201405

main77291-BZ041iS403,413..PIC;S403,413..VAN..4FC202007

77310ACAP ASSY, FUEL TANK

main77300-28010iS402,412201006-202007

main77300-52030iS403,413..PIC;S403,413..VAN..4FC202007

main77310-48010iS402200801-201006

77316GASKET, FUEL TANK CAP

main77316-16010iS402,412200801-202007

main77316-52040iS403,413..VAN..5F202007-202912

77380VALVE ASSY, FUEL CUT OFF

main77380-0K010iS403,413..VAN..5F202007-202912

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-BZ030iS403,413..VAN..5F202007-202912

77644BOLT, FUEL TANK

main90041-20155×4iS403,413202007-202103

main90041-20292×4iS403,413..PIC;S403,413..VAN..4FC202104

77652ACUSHION, FUEL TANK, NO.2

main77651-BZ030iS403,413..PIC;S403,413..VAN..4FC202007

main77652-B2010iS412201007-201609

9004119608

main90041-19608

9004A10170

main9004A-10170

9004A11247

main9004A-11247

9004A15055

main9004A-15055

9004A46391

main9004A-46391

9046609001

main90466-09001

39 parts on this diagram · 6 diagrams in section
