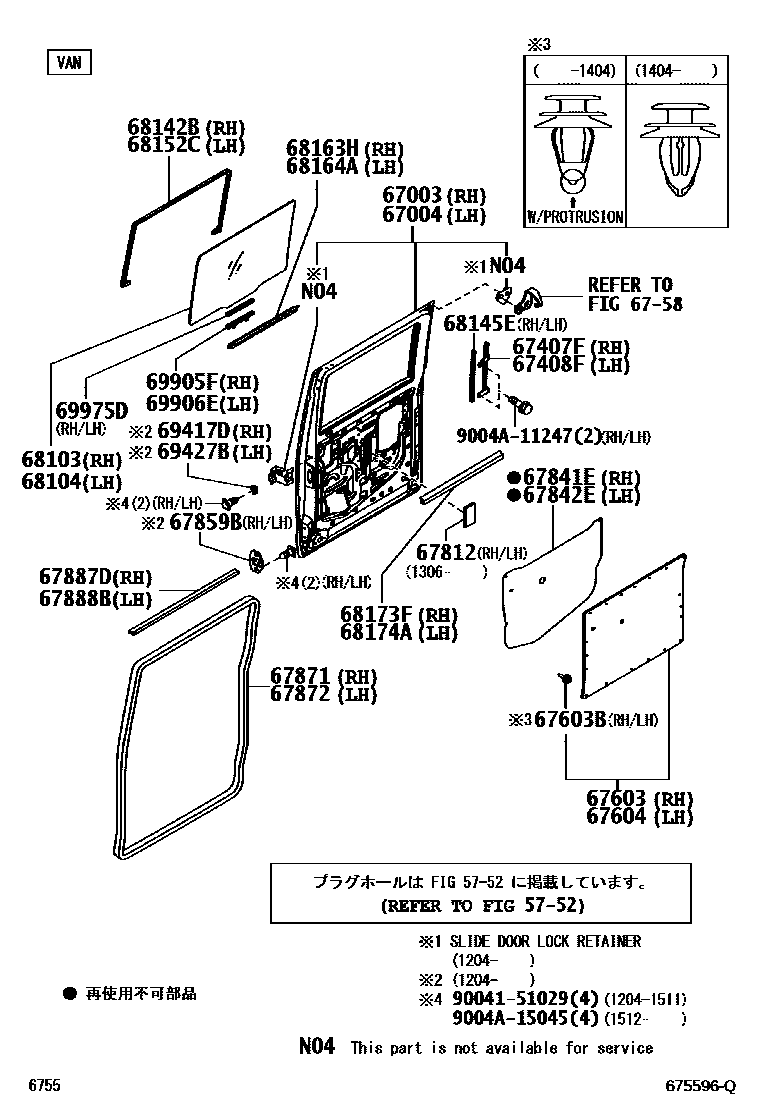

REAR DOOR PANEL & GLASS

0001 1 0002 1

5752HOLE PLUG

→ Go to FIG 57-52

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-BZ220iS402..VAN..DX200801-200911

main67003-BZ230iS402..VAN..DX200911-201109

main67003-BZ231iS402,412..VAN201109-201204

main67003-BZ232iS403,413..VAN..5F202007-202503

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-BZ230iS402..VAN..DX200801-200911

main67004-BZ240iS402..GL;S412..VAN200801-201109

main67004-BZ241iS402,412..VAN201109-201204

main67004-BZ242iS402,412..VAN201204-202007

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-BZ050iS403,413..VAN..5F202007-202503

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-BZ050iS403,413..VAN..5F202007-202503

6758SLIDE ROLLER & RAIL

→ Go to FIG 67-58

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-BZ240-B0iS402,412..GL200801-202007

DK.GRAY,TRIM1#

main67630-BZ240-B1iS403,413..4FC..GL202007

-,TRIM1#

main67630-BZ280-B0iS403,413..VAN..4FC..DX202007

DK.GRAY,TRIM1#

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main67771-87705×38iS402,412..VAN200812-201404

main67771-B2040×38iS402,412..VAN201404-201511

main67771-BZ070×38iS403,413..VAN..4FC202007

main90467-10161×38iS402..VAN200801-200812

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-BZ240-B0iS402,412..GL200801-202007

DK.GRAY,TRIM1#

main67640-BZ240-B1iS403,413..5F..GL202007-202503

-,TRIM1#

main67640-BZ280-B0iS403,413..VAN..4FC..DX202007

DK.GRAY,TRIM1#

67812PAD, REAR DOOR SILENCER

main67812-BZ010×2iS403,413..VAN..5F202007-202503

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-BZ140iS402,412..VAN200801-202007

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-BZ140iS403,413..VAN..4FC202007

67859BCOVER, REAR DOOR LOWER HOLE

main68035-B5020×2iS402,412..VAN201204-202007

67871WEATHERSTRIP, REAR DOOR, RH

main67871-B5040iS402,412..VAN200801-202002

main67871-BZ270iS403,413..VAN..5F202007-202503

67872WEATHERSTRIP, REAR DOOR, LH

main67872-B5010iS402,412..VAN200801-202002

main67872-BZ260iS402,412..VAN202003-202007

67887DWEATHERSTRIP, SLIDE DOOR, NO.2 RH

main67887-B5010iS403,413..VAN..4FC202007

67888BWEATHERSTRIP, SLIDE DOOR, NO.2 LH

main67887-B5010iS403,413..VAN..5F202007-202503

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-BZ150iS403,413..VAN..5F..DX202007-202503

main68113-BZ340iS403,413..5F..GL202007-202503

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-BZ150iS403,413..VAN..5F..DX202007-202503

main68114-BZ340iS403,413..4FC..GL202007

68142BRUN, REAR DOOR WINDOW, RH

main68142-BZ060iS403,413..VAN..4FC202007

68145ERUN, REAR DOOR GLASS, LOWER REAR

main68145-BZ010×2iS403,413..VAN..4FC202007

68152CRUN, REAR DOOR GLASS, LH

main68152-BZ060iS402,412..VAN200801-202007

68163HWEATHERSTRIP, REAR DOOR GLASS, OUTER RH

main68163-BZ070iS403,413..VAN..5F202007-202503

68164AWEATHERSTRIP, REAR DOOR GLASS, OUTER LH

main68164-BZ060iS403,413..VAN..5F202007-202503

68173FWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-BZ080iS403,413..VAN..5F202007-202503

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-BZ050iS403,413..VAN..5F202007-202503

69417DCOVER, SLIDE DOOR OPEN STOP, RH

main69480-97501iS403,413..VAN..5F202007-202503

69427BCOVER, SLIDE DOOR OPEN STOP, LH

main69480-97501iS403,413..VAN..5F202007-202503

69905FCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-87502iS403,413..VAN..5F202007-202503

69906ECHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69905-87502iS403,413..VAN..5F202007-202503

69975DFILLER, REAR DOOR GLASS CHANNAL

main69975-87Z01×2iS403,413..VAN..5F202007-202503

9004151029

main90041-51029

9004A11247

main9004A-11247

9004A15045

main9004A-15045

34 parts on this diagram · 2 diagrams in section
