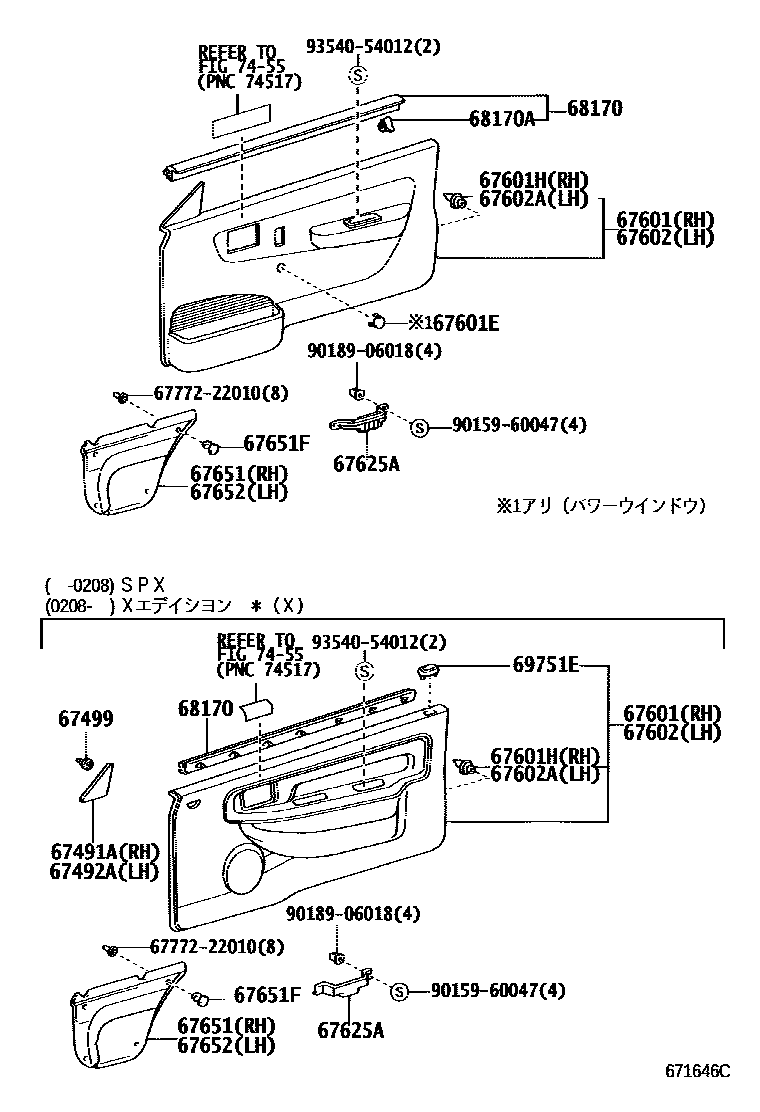

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-95700iKM70,80..SPX199906-200208

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-95700iKM70,80..SPX199906-200208

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67772-95J01×2iKM8#..TS..CBU;KM7#..SJL..TS..3SO..CBU200208

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-27090-B2iKM70,80..SPX199906-200205

main67610-27100-B0iCM7#,8#,KM7#,8#..DX199906-200205

DK.CHARCOAL,TRIM1#

main67610-27110-B0iCM7#,8#,KM7#,8#..DX199906-200205

main67610-27120-B0iCM7#,8#,KM7#,8#..DX200205-200208

DK.CHARCOAL,TRIM14

main67610-27130-B0iCM7#,8#,KM7#,8#200208-200708

main67610-27140-B1iKM8#..TS..CBU;KM7#..SJL..TS..3SO..CBU200208-200708

67601ECAP(FOR FRONT DOOR TRIM BOARD)

main47256-26020-B2×2iCM7#,8#,KM7#,8#..DX199906-200208

DK.CHARCOAL,TRIM1#

67601HRETAINER, DOOR TRIM, RH

main67771-12050×11iCM7#,8#,KM7#,8#200208-200308

main67771-26010×9iKM70,80..SPX199906-200208

main90467-10188×11iCM7#,8#,KM7#,8#200308

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-27110-B2iKM70,80..SPX199906-200205

main67620-27120-B0iCM7#,8#,KM7#,8#..DX199906-200205

DK.CHARCOAL,TRIM1#

main67620-27130-B0iCM7#,8#,KM7#,8#..DX199906-200205

main67620-27140-B0iCM7#,8#,KM7#,8#..CBU,IV3200208-200708

main67620-27150-B0iCM7#,8#,KM7#,8#200208-200708

main67620-27160-B1iKM8#..TS..CBU;KM7#..SJL..TS..3SO..CBU200208-200708

67602ARETAINER, DOOR TRIM, LH

main67771-12050×10iCM7#,8#,KM7#,8#200208-200308

main67771-26010×9iKM8#..TS..CBU;KM7#..SJL..TS..3SO..CBU200208

main90467-10188×10iCM7#,8#,KM7#,8#200308

67625ABRACKET, FRONT DOOR TRIM, NO.1

main67625-27010×2iCM7#,8#,KM7#,8#200208

main67625-95700×2iKM8#..TS..CBU;KM7#..SJL..TS..3SO..CBU200208

67651BOARD, FRONT DOOR TRIM, LOWER RH

main67628-27010-B2iCM85..TS;CM7#,80,KM7#,8#199906-200208

DK.CHARCOAL,TRIM1#

67651FCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-08046-B6×8iCM85..TS;CM7#,80,KM7#,8#199906-200208

DK.CHARCOAL,TRIM1#

67652BOARD, FRONT DOOR TRIM, LOWER LH

main67629-27010-B2iCM85..TS;CM7#,80,KM7#,8#199906-200208

DK.CHARCOAL,TRIM1#

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-95700×2iKM70,80..SPX199906-200208

main68171-27010iCM7#,8#,KM7#,8#..DX199906-200208

main68172-27010iCM7#,8#,KM7#,8#..DX199906-200208

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-12080×14iKM7#,8#200208

69751EHOLDER, FRONT DOOR LOCK CONTROL KNOB

main69751-32010-B4×2iKM70,80..SPX199906-200208

DK.CHARCOAL,TRIM1#

7455CAUTION PLATE

→ Go to FIG 74-55

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9015960047

main90159-60047

9018906018

main90189-06018

9354054012

main93540-54012

20 parts on this diagram · 4 diagrams in section
