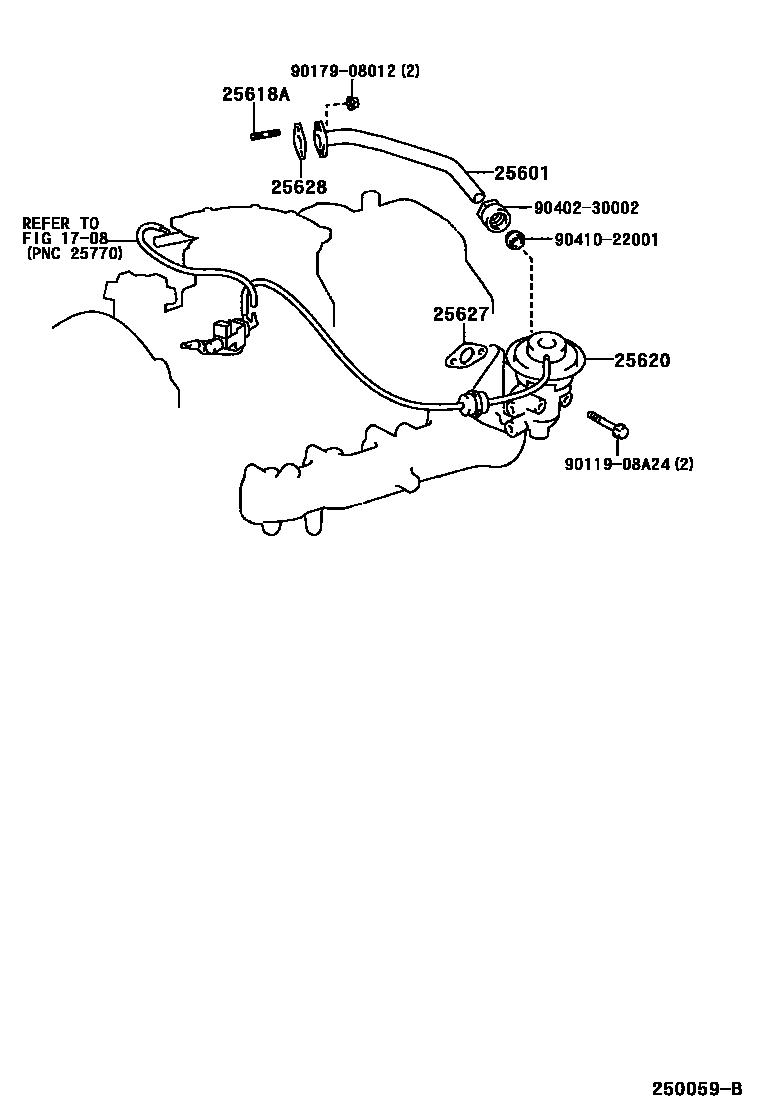

EXHAUST GAS RECIRCULATION SYSTEM

1708VACUUM PIPING

→ Go to FIG 17-08

25601PIPE SUB-ASSY, EGR, NO.1

main25601-64041i3CE..CM7#,8#199906-200208

25618ABOLT, STUD(FOR EGR INLET)

main92122-60822×2i3CE..CM7#,8#199906-200208

25620VALVE ASSY, EGR

main25800-64170i3CE..CM7#,8#199906-200208

25627GASKET, EGR VALVE

main25627-64041i3CE..CM7#,8#199906-200208

25628GASKET, EGR INLET

main25628-64030i3CE..CM7#,8#199906-200208

9011908A24

main90119-08A24

9017908012

main90179-08012

9040230002

main90402-30002

9041022001

main90410-22001

10 parts on this diagram · 1 diagram in section
