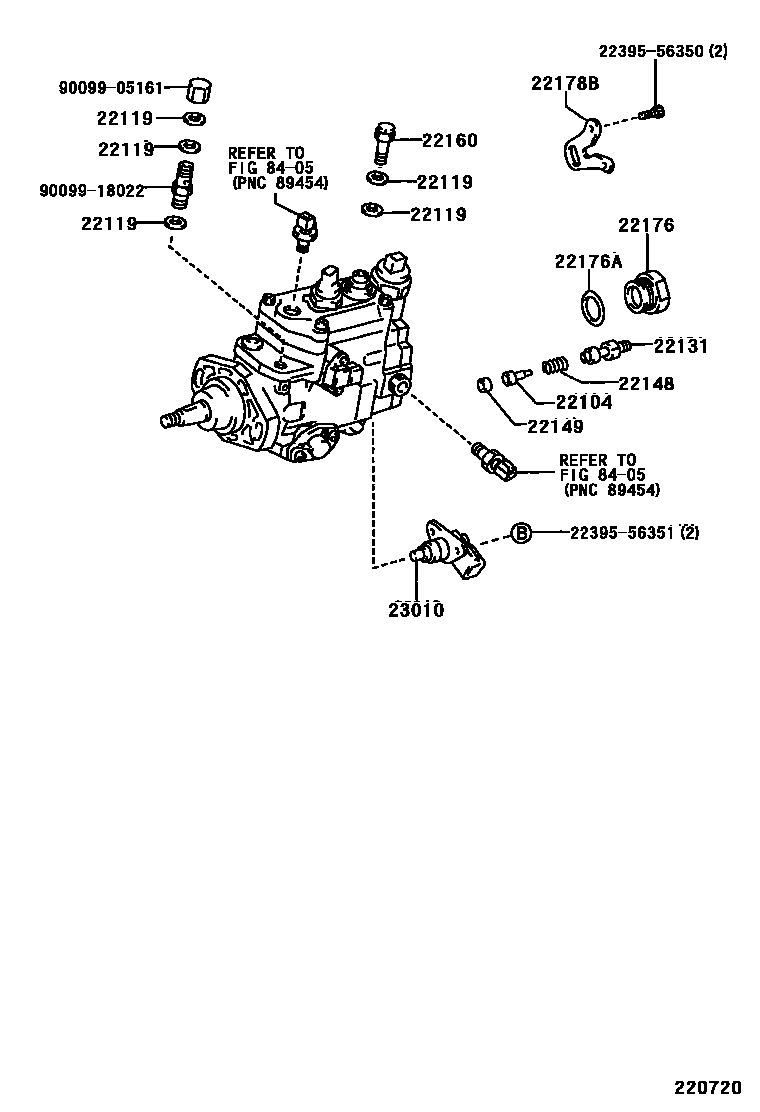

INJECTION PUMP BODY

22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY

main22104-6A640×4i3CE..CM7#,8#199906-200208

22119WASHER, AIR BLEEDER NIPPLE

main90201-12109×5i3CE..CM7#,8#199906-200208

22131HOLDER, DELIVERY VALVE

main22190-6A680×4i3CE..CM7#,8#199906-200208

22148SPRING, DELIVERY VALVE

main22148-54010×4i3CE..CM7#,8#199906-200208

22149GASKET, DELIVERY VALVE

main22149-56351×4i3CE..CM7#,8#199906-200208

22160SCREW SUB-ASSY, OVERFLOW

main22160-54271i3CE..CM7#,8#199906-200208

22176PLUG, DISTRIBUTIVE HEAD

main22176-54640i3CE..CM7#,8#199906-200208

22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)

main22193-54772i3CE..CM7#,8#199906-200208

22178BBRACKET(FOR INJECTION PUMP ASSY)

main22178-64010i3CE..CM7#,8#199906-200208

23010VALVE ASSY, TIMING CONTROL

main23010-67010i3CE..CM7#,8#199906-200208

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

2239556350BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56350

2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56351

9009905161

main90099-05161

9009918022

main90099-18022

15 parts on this diagram · 1 diagram in section
