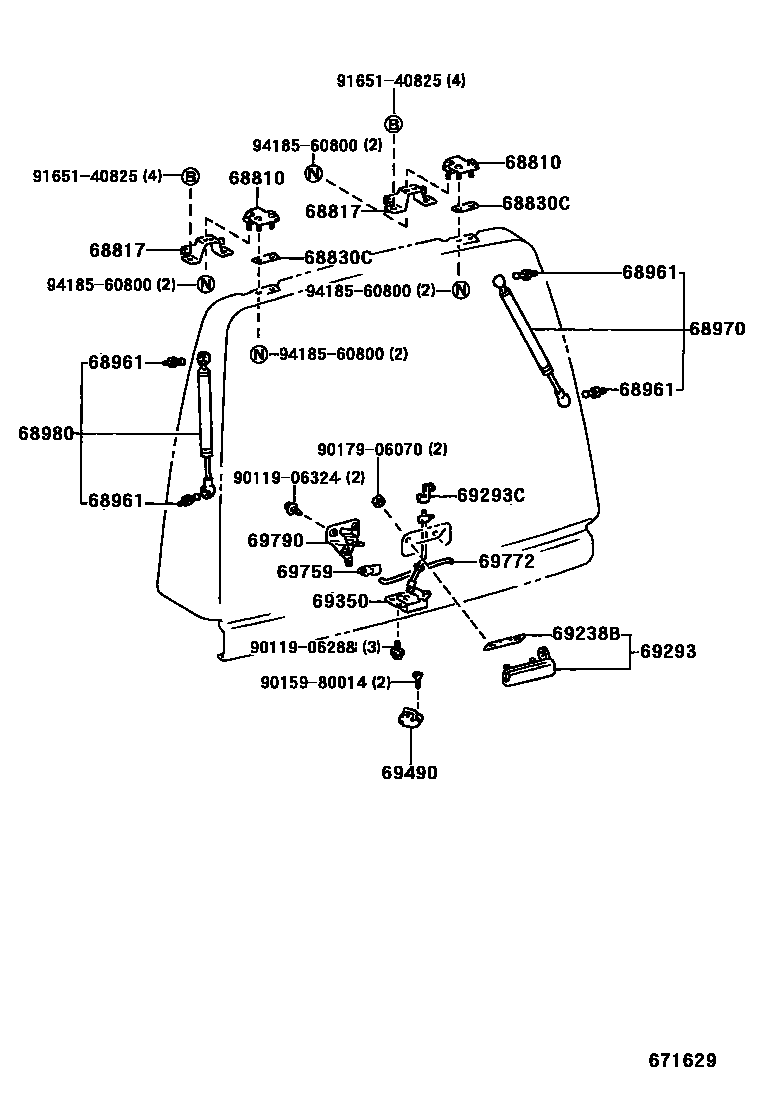

BACK DOOR LOCK & HINGE

68810HINGE ASSY, BACK DOOR, UPPER

main68810-95703iCM60,KM5#,YM60..GUT198711

main68820-95702iCM60,KM5#,YM60..GUT198711

68817BRACKET, BACK DOOR HINGE BASE

main68817-95701×2iCM60,KM5#,YM60..GUT198610

68830CRETAINER, BACK DOOR HINGE

main68719-95700×2iCM60,KM5#,YM60..GUT198610

68961BOLT, BACK DOOR STAY

main68961-95701×4iCM60,KM50,YM60..GUT198610-198808

main68961-95702×4iCM60,KM5#,YM60..GUT198808

68970STAY ASSY, BACK DOOR, RH

main68950-29605iCM60,KM5#,YM60..GUT198610

main68950-29625iCM60,KM50,YM60..GUT198610-198711

COLD SPEC OR BACK DOOR WINDOW

main68950-29635iCM60,KM50,YM60..GUT198708-198711

COLD SPEC & BACK DOOR WINDOW

68980STAY ASSY, BACK DOOR

main68950-29605iCM60,KM5#,YM60..GUT198610

main68950-29625iCM60,KM50,YM60..GUT198610-198711

COLD SPEC OR BACK DOOR WINDOW

main68950-29635iCM60,KM50,YM60..GUT198708-198711

COLD SPEC & BACK DOOR WINDOW

69238BPAD, BACK DOOR OUTSIDE HANDLE

main69238-95J00iCM60,KM5#,YM60..GUT198610

69293HANDLE, BACK DOOR

main69220-95701iCM60,KM50,YM60..GUT198610-198809

main69220-95702iCM60,KM5#,YM60..GUT198809

69293CSNAP, BACK DOOR HANDLE

main69293-12020iCM60,KM5#,YM60..GUT198610

69350LOCK ASSY, BACK DOOR

main69350-95707iCM60,KM5#,YM60..GUT198610

69490STRIKER ASSY, BACK DOOR LOCK

main69450-95J00iCM60,KM5#,YM60..GUT198610

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24090iCM60,KM5#,YM60..GUT198610

69772ROD, BACK DOOR LOCK CONTROL

main69772-95700iCM60,KM5#,YM60..GUT198610

69790CONTROL ASSY, BACK DOOR LOCK

main69790-95704iCM60,KM5#,YM60..GUT198610

9011906288

main90119-06288

9011906324

main90119-06324

9015980014

main90159-80014

9017906070

main90179-06070

9165140825

main91651-40825

9418560800

main94185-60800

20 parts on this diagram · 1 diagram in section
