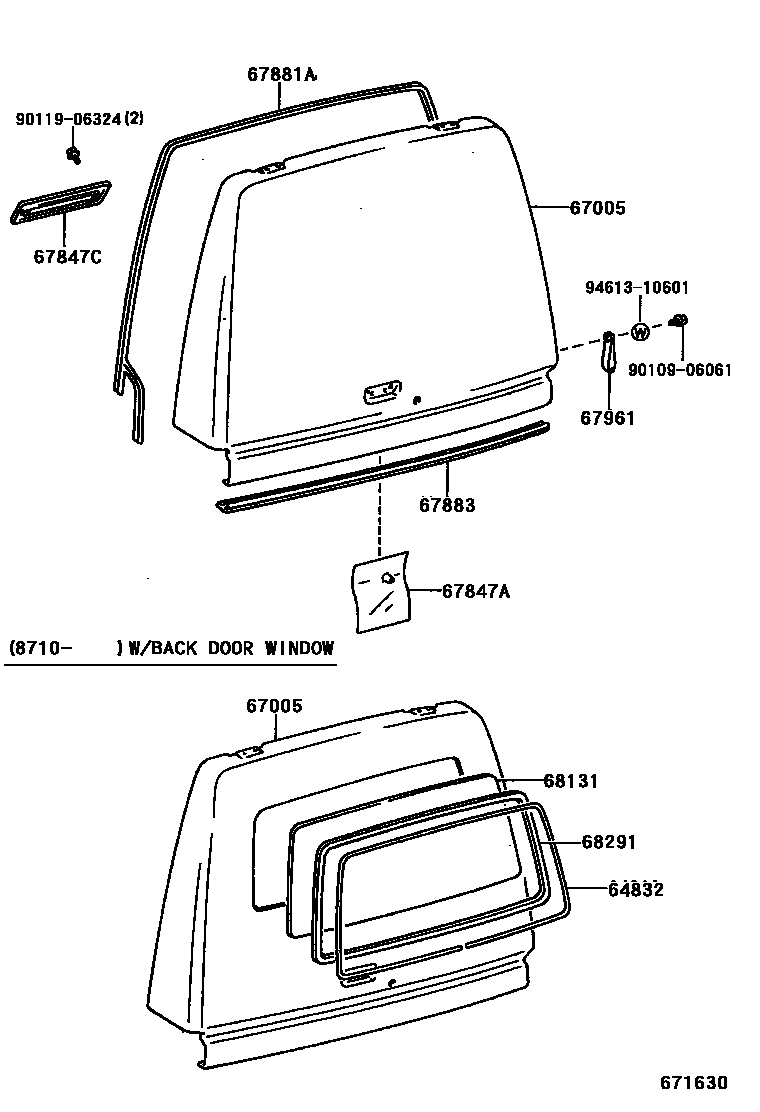

BACK DOOR PANEL & GLASS

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-95701iCM60,KM5#,YM60..GUT198708

67005PANEL SUB-ASSY, BACK DOOR

main67005-95G23iCM60,KM50,YM60..GUT198610-198708

main67005-95G26iCM60,KM5#,YM60..GUT198708

main67005-95G27iCM60,KM5#,YM60..GUT198711

67847ACOVER, BACK DOOR SERVICE HOLE

main67831-95705iCM60,KM5#,YM60..GUT198610

67847CCOVER, BACK DOOR SERVICE HOLE, NO.1

main65759-95700iCM60,KM51,YM60..GUT199008

main67847-95702iCM60,KM50,YM60..GUT198610-198708

main67847-95703iCM60,KM50,YM60..GUT198708-199008

67881AWEATHERSTRIP, BACK DOOR

main67881-95706iCM60,KM5#,YM60..GUT198610

67883WEATHERSTRIP, BACK DOOR, CENTER

main67884-95700iCM60,KM5#,YM60..GUT198610

67961STRAP, BACK DOOR PULL

main67961-95700iCM60,KM50,YM60..GUT198610-198708

main67961-95701iCM60,KM5#,YM60..GUT198708

68131GLASS, BACK DOOR

main68131-95723iCM60,KM5#,YM60..GUT198708

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-95712iCM60,KM5#,YM60..GUT198708

9010906061

main90109-06061

9011906324

main90119-06324

9461310601

main94613-10601

12 parts on this diagram · 1 diagram in section
