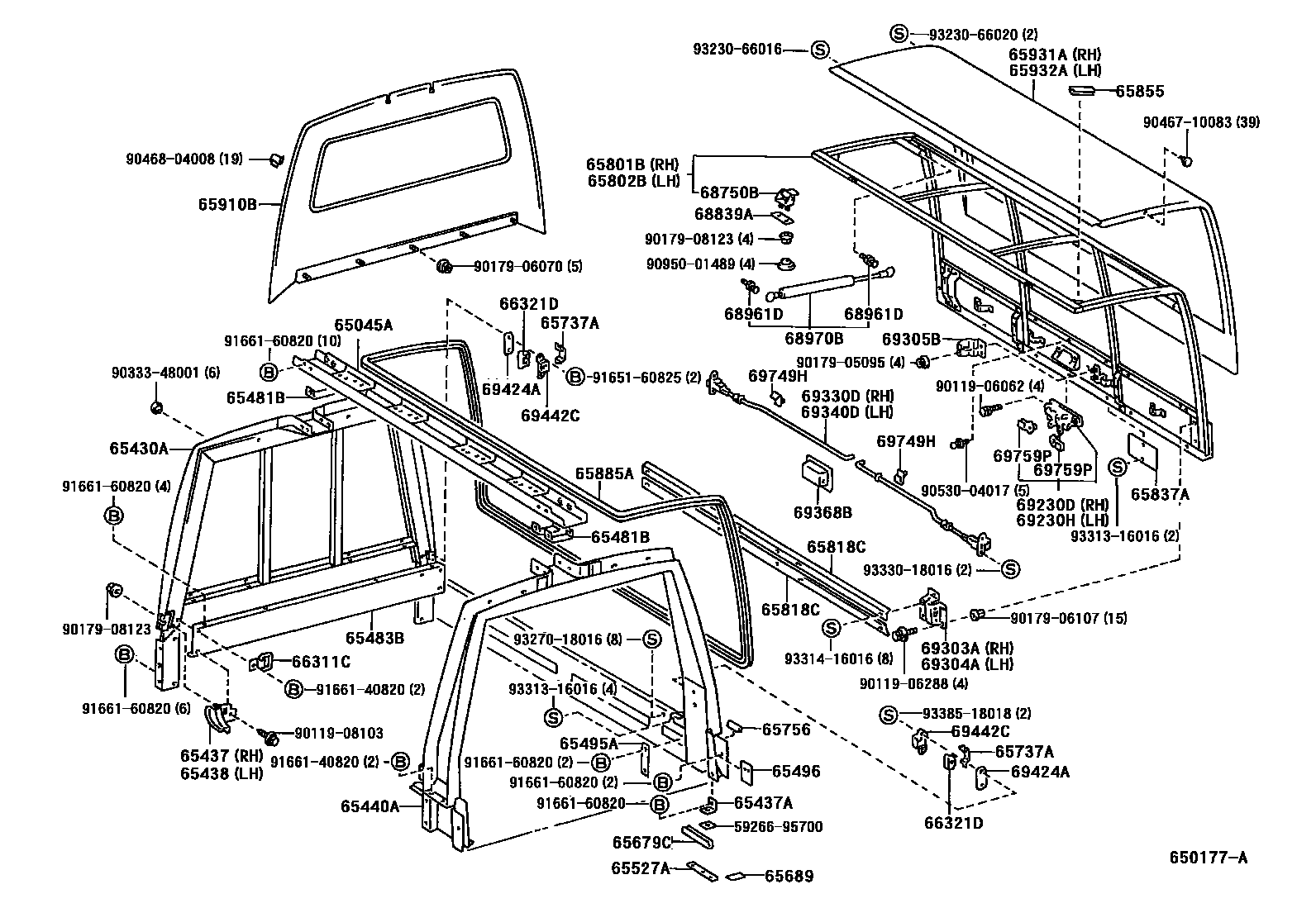

GULL TOP
65045AFRAME SUB-ASSY, TOP & TARPAULIN SUPPORT, CENTER
65430AFRAME ASSY, TOP & CURTAIN SUPPORT, FRONT
65437BRACKET, TOP & CURTAIN FRAME, FRONT RH
65437ASUPPORT, REAR BODY GUARD FRAME
65438BRACKET, TOP & CURTAIN FRAME, FRONT LH
65440AFRAME ASSY, TOP & CURTAIN SUPPORT, REAR
65481BPROTECTOR, FRONT CORNER
65483BRAIL, HEADER BOARD, UPPER
65495ASEAL, REAR BODY GUARD FRAME, NO.3
65496SEAL, REAR BODY GUARD FRAME, NO.4
65527APROTECTOR, TOP RAIL SIDE
65679CPROTECTOR, SIDE GATE
65689SEAL, SIDE GATE
65737ASTOP, SIDE TARPAULIN
65756SEAL, TAIL GATE
65801BFRAME SUB-ASSY, SIDE TARPAULIN, RH
65802BFRAME SUB-ASSY, SIDE TARPAULIN, LH
65818CRAIL, SIDE TARPAULIN
65837APLATE, TOP BOW
65855PROTECTOR, CENTER TOP TARPAULIN BOW
65885AWEATHERSTRIP, SIDE TARPAULIN
65910BTARPAULIN ASSY
65931ATARPAULIN, SIDE COVER, RH
65932ATARPAULIN, SIDE COVER, LH
66311CHOOK, ROPE
66321DBUMPER, SIDE TARPAULIN RUBBER
68750BHINGE ASSY, TARPAULIN
68839APAD, TARPAULIN HINGE
68961DBOLT, SIDE TARPAULIN STAY
68970BSTAY ASSY, SIDE TARPAULIN DAMPER
69230DHANDLE ASSY, SIDE COVER TARPAULIN
69230HHANDLE ASSY, REAR DOOR, OUTSIDE
69303ACOVER SUB-ASSY, SIDE TARPAULIN LOCK, RH
FRONT
RR
69304ACOVER SUB-ASSY, SIDE TARPAULIN LOCK, LH
RR
FR
69305BBRACKET SUB-ASSY, SIDE COVER TARPAULIN LOCK CONTROL
69330DLOCK ASSY, TARPAULIN, RH
FR
RR
69340DLOCK ASSY, TARPAULIN, LH
RR
FR
69368BSPACER, ROOF CONCEALED COVER LOCK STRIKER
69424APLATE, SIDE TARPAULIN LOCK STRIKER
69442CSTRIKER, TARPAULIN LOCK
69749HCLAMP, SIDE TARPAULIN LOCK LINK
69759PSNAP, DOOR LOCK CONTROL LINK
RH,RR;LH,FR
LH,REAR
5926695700SEAL, ENGINE SERVICE COVER, NO.2
main59266-95700
9011906062
main90119-06062
9011906288
main90119-06288
9011908103
main90119-08103
9017905095
main90179-05095
9017906070
main90179-06070
9017906107
main90179-06107
9017908123
main90179-08123
9033348001
main90333-48001
9046710083
main90467-10083
9046804008
main90468-04008
9053004017
main90530-04017
9095001489
main90950-01489
9165160825
main91651-60825
9166140820
main91661-40820
9166160820
main91661-60820
9323066016
main93230-66016
9323066020
main93230-66020
9327018016
main93270-18016
9331316016
main93313-16016
9331416016
main93314-16016
9333018016
main93330-18016
9338518018
main93385-18018
65 parts on this diagram · 1 diagram in section
