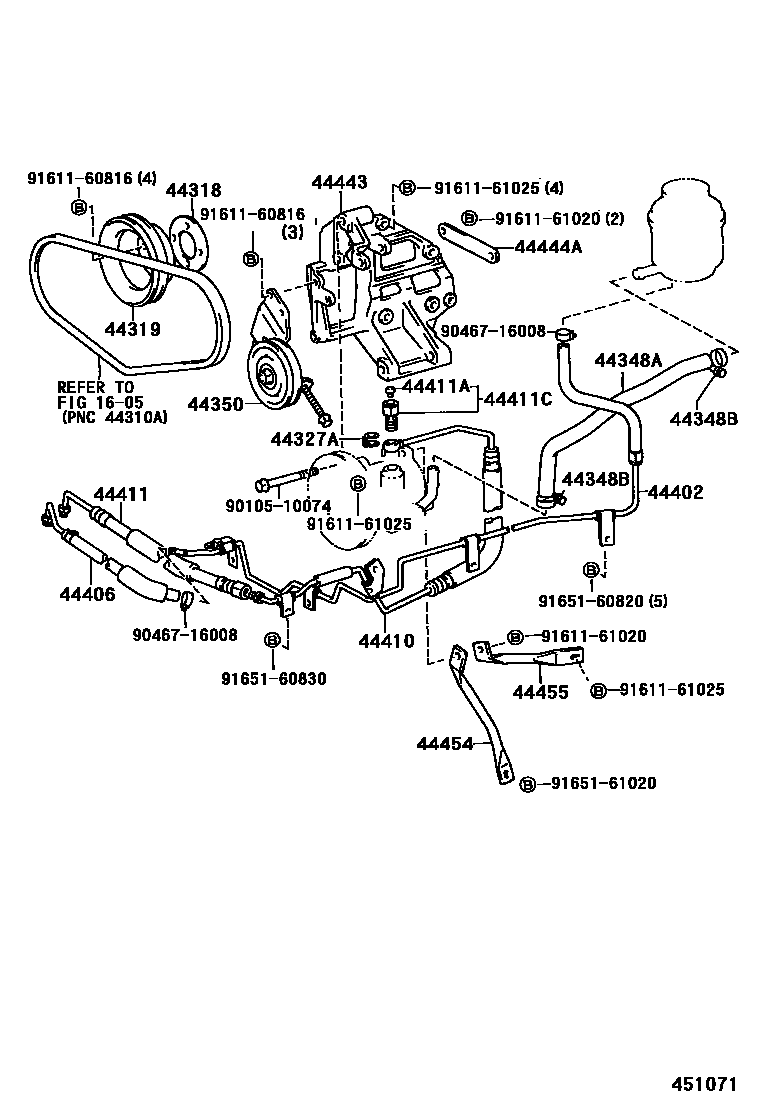

POWER STEERING TUBE

0001 1��(��� ����) 0003 1��(��� ����) 0004 1 0005 1��(��� ����) 0007 1��(��� ����) 0009 1��(��� ����) 0010 1��(��� ����) 0012 1��(��� ����) 0013 1 0014 1TECS(������) 0015 1TECS

1605V-BELT

→ Go to FIG 16-05

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-27010iKM51..DX198711-198912

main44318-28012iYM55,60198610-198711

44319PULLEY, VANE PUMP DRIVE

main44319-27010iCM51..4HC;CM51,55..SJL,SJLC;CM51..JL..5H..CBU; CM51..JL..5H..IV198912-199310

main44319-27020iKM51..JL..CBU;KM51..(SJL,T1)..DX; KM51..JL..IV198912-199310

main44319-28013iYM55..IV; YM6#;YM55..CBU199312

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iCM5#,KM51..DX; CM51..4HC;CM50,55..JL,SJL;CM6#..(JL,T1)..(GUT,TS);KM51..(SJL,T1)..(3HC,4H,5F)198610-199110

main44327-26030iCM51..SJL..IV; CM55..IV;CM55..4HC;CM51..JL..IV199310-199404

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-27021iKM51..JL..CBU;KM51..(SJL,T1)..DX; KM51..JL..IV198912-199310

main44348-27060iCM51,55199310

main44348-27100iYM55; YM6#;YM55..SJL..4H198610-199310

main44348-27160iCM51..IV;CM55..4HC..IV; CM65..IV199611

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001×2iCM5#; CM5#,6#,KM51,YM55,60; KM51,YM55..DX198610-198808

main90467-21005×2iCM51,55..CBU; CM51..SJL..IV;CM51,55..4HC..IV; CM65..IV; YM55..CBU;CM52,6#,YM6#;KM51..SJL,T1;KM51..JL..CBU199611

44350PULLEY ASSY, POWER STEERING IDLE

main44350-27010iKM51..JL; KM51..JL..CBU;KM51..(SJL,T1)..DX198912-199310

main44350-27020iCM51..IV;CM55..4HC199404-199611

main44350-28011iYM55..IV; YM6#;YM55..CBU199312

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-27010iKM51,YM55198610-198711

44406TUBE SUB-ASSY, RETURN

main44406-27010iCM55..4HC;CM51..4HC..IV;CM55,YM55..IV199312-199404

main44406-27030iCM60,65198610-199310

main44406-27040iYM6#198610-199906

44410TUBE ASSY, PRESSURE FEED

main44410-27040iYM55199310-199312

main44410-27080iKM51..DX198610-199310

main44410-27090iYM6#198610

main44410-27100iCM6#198610-198808

main44410-27110iCM5#198610-198711

main44410-27130iCM6#198808-199008

main44410-27131iCM60,65199611

main44410-27140iKM51..JL..IV198910

main44410-27150iCM51..JL..5H..IV198910

main44410-27160iYM60..IV198910

main44410-27170iCM60..IV198910

main44410-27220iCM51,55..5H..IV199210-199310

main44410-27240iCM65..IV199611

44411HOSE, PRESSURE FEED

main44411-27020iKM51,YM55..SJL..4H;KM51,YM55..3HC,4HC,5F,5H198610-199906

main44411-27030iCM51..SJL..IV; CM55..IV;CM55..4HC;CM51..4HC..IV199310-199404

main44411-27040iYM6#198610-199906

main44411-27060iCM60,65199611-199906

44411ASEAT, UNION(FOR PRESSURE FEED HOSE)

main90410-05005iKM51..DX; KM51..SPX198711-199310

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16008iCM51..4HC;CM51,55..SJL,SJLC;CM51..JL..5H..CBU; CM55..SJL;CM51..JL..IV;CM51..4HC..CBU;CM60,65..(JL,T1)..(GUT,TS)199110-199310

main90401-16010iKM51..DX198610-199310

44443BRACKET, PUMP

main44443-14030iCM5#,6#198610-198711

main44443-27010iKM51..DX198711-198912

main44443-28011iYM55; YM6#198711-199310

44444ASTAY, PUMP, REAR NO.1

main44444-27010iYM55; YM6#199108-199310

main44444-27020iKM51..JL..CBU;KM51..(SJL,T1)..DX; KM51..JL..IV198912-199310

main44444-27030iYM55; YM6#198711-199108

44454STAY, PUMP, REAR NO.2

main44454-27010iKM51..DX; KM51..SPX198711-199310

44455STAY, PUMP, REAR NO.3

main44455-27011iKM51..DX; KM51..SPX198711-199008

main44455-27020iKM51..DX; KM51..SPX199008-199207

main44455-27021iKM51..DX; KM51..SPX199207-199310

9010510074

main90105-10074

9046716008

main90467-16008

9161160816

main91611-60816

9161161020

main91611-61020

9161161025

main91611-61025

9165160820

main91651-60820

9165160830

main91651-60830

9165161020

main91651-61020

25 parts on this diagram · 11 diagrams in section
