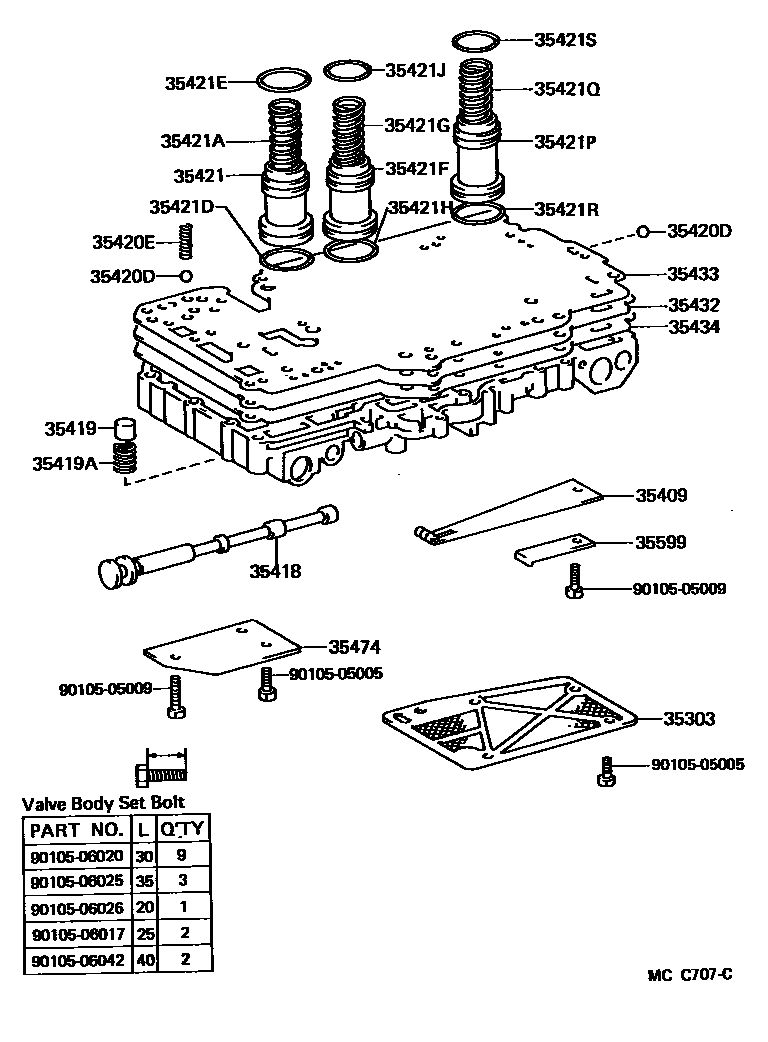

VALVE BODY & OIL STRAINER (ATM)
35409SPRING SUB-ASSY, MANUAL DETENT
35418VALVE, MANUAL
35419VALVE, CHECK, NO.1
35419ASPRING, COMPRESSION (FOR CHECK VALVE)
35420BODY ASSY, LOWER VALVE
35420DBALL (FOR LOWER VALVE BODY)
35420ESPRING (FOR LOWER VALVE BODY)
35421PISTON, ACCUMULATOR, NO.1
35421ASPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1)
35421DRING (FOR ACCUMULATOR PISTON NO.1)
35421ERING (FOR ACCUMULATOR PISTON NO.1)
35421FPISTON, ACCUMULATOR, NO.2
35421GSPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)
35421HRING (FOR ACCUMULATOR PISTON NO.2)
35421JRING (FOR ACCUMULATOR PISTON NO.2)
35421PPISTON, ACCUMULATOR, NO.3
35421QSPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3)
35421RRING (FOR ACCUMULATOR PISTON NO.3)
35421SRING (FOR ACCUMULATOR PISTON NO.3)
35432PLATE, VALVE BODY, NO.1
35433GASKET, VALVE BODY, NO.1
35434GASKET, VALVE BODY, NO.2
35474COVER, VALVE BODY, NO.4
35599COVER, MANUAL DETENT SPRING
9010505005
main90105-05005
9010505009
main90105-05009
9010506017
main90105-06017
9010506020
main90105-06020
9010506025
main90105-06025
9010506026
main90105-06026
9010506042
main90105-06042
32 parts on this diagram · 7 diagrams in section
