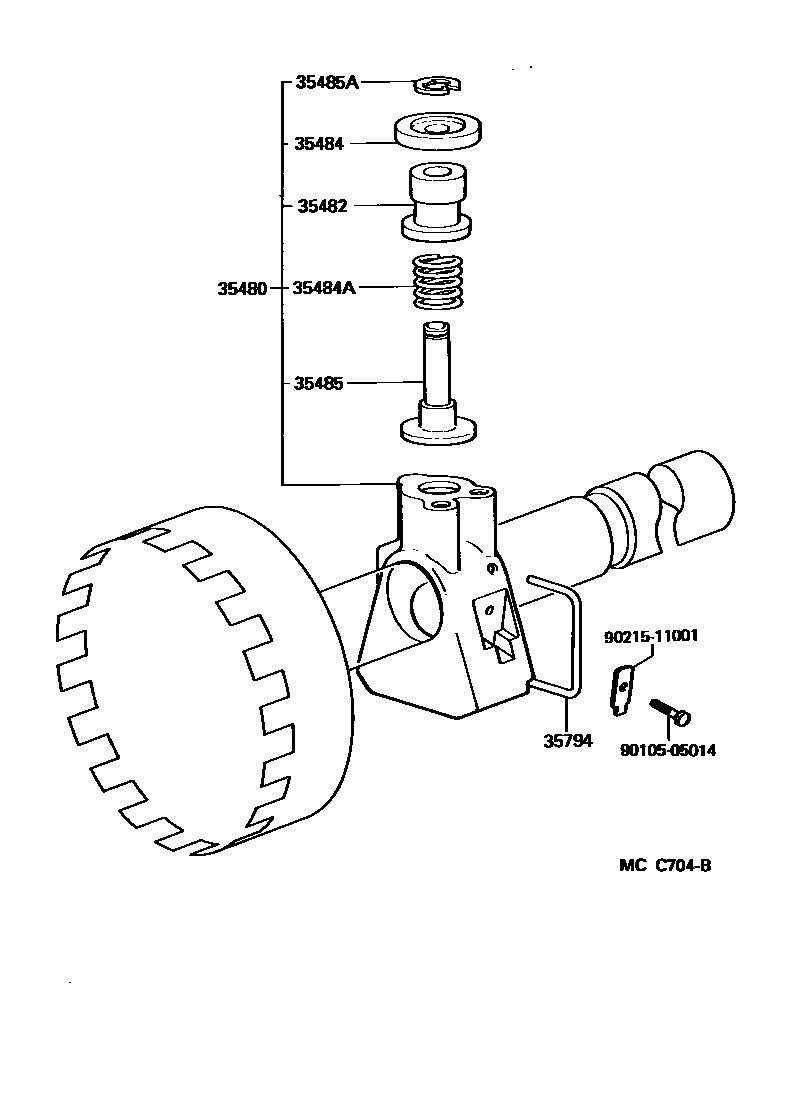

REAR OIL PUMP & GOVERNOR (ATM)

35480GOVERNOR

main35480-26010iKM51..ATM198610

main35480-28030iYM55..4HC199410

main35480-30080iCM51,55..4HC198610

35482VALVE, GOVERNOR

main35482-20010iCM51,55..4HC198610

main35482-30030iKM51,YM55..ATM198610

35484WEIGHT, GOVERNOR, OUTER

main35484-20020iCM51,55..4HC198610

main35484-22010iKM51,YM55..ATM198610

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09030iCM51,55..4HC198610

main90501-09070iYM55..4HC199410

main90501-09673iKM51..ATM198610

35485SHAFT, GOVERNOR VALVE

main35485-22010iCM51,55,KM51,YM55..ATM198610

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iCM51,55,KM51,YM55..ATM198610

35794RING, GOVERNOR RETAINING

main35794-22010iCM51,55,KM51,YM55..ATM198610

9010505014

main90105-05014

9021511001

main90215-11001

9 parts on this diagram · 1 diagram in section
