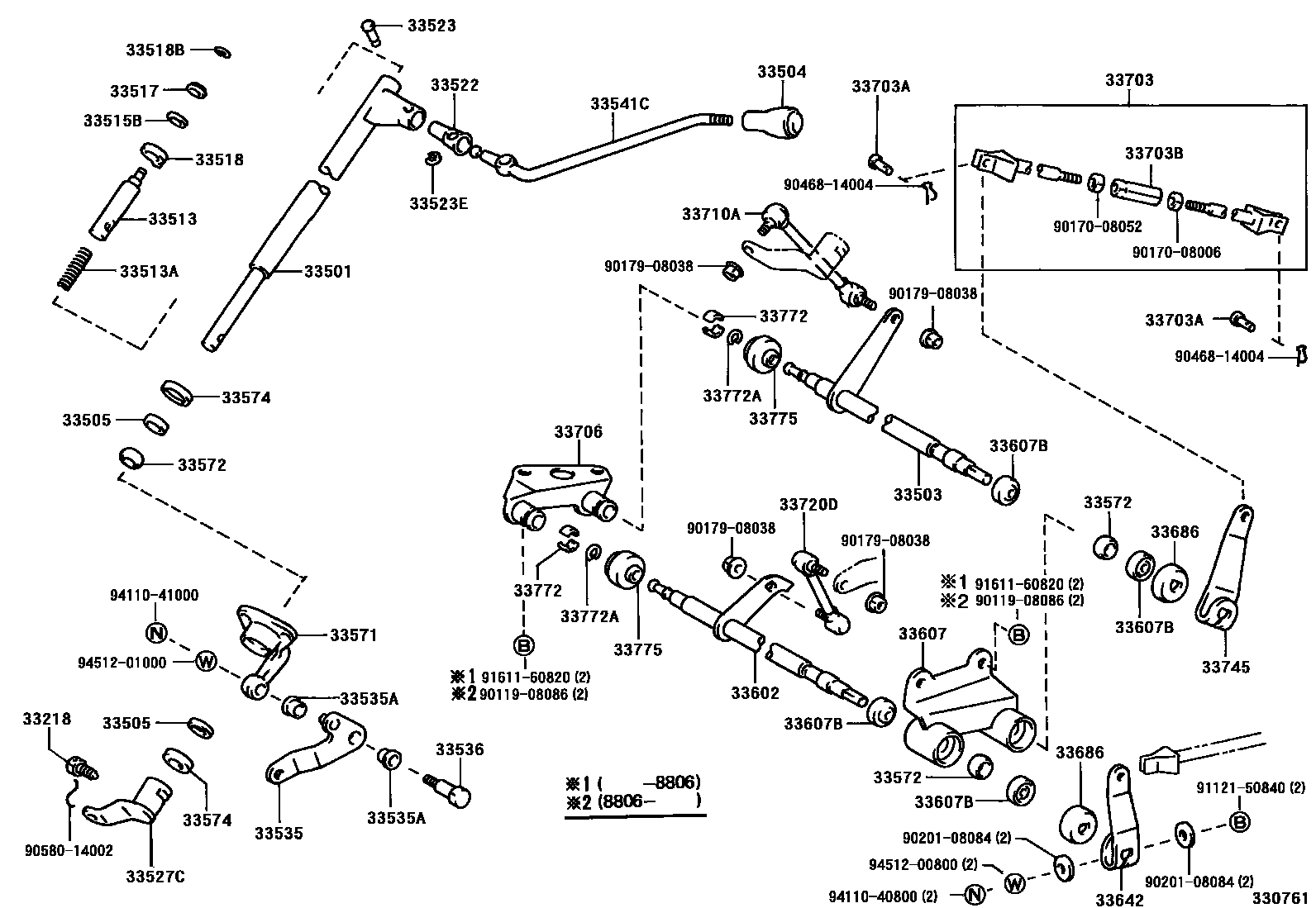

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1 0003 1 0005 1 0007 1 0008 1 0009 1 0010 1

33218BOLT, SHIFT LEVER LOCK

main33218-35010iCM5#,6#,KM51,YM55,6#..5H199611

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-27130iKM5#,YM55,60..4H198610-199008

main33501-27140iCM5#,6#,KM51,YM55,6#..5H198610-199310

main33501-27141iCM5#,6#,KM51,YM55,6#..5H199611

main33501-27150iKM51..3HC198610-198910

main33501-27151iKM51..3HC198910

main33501-27160iCM51,55..4HC198610-198910

main33501-27161iCM51,55,YM55..4HC198910

33503LEVER SUB-ASSY, SHIFT(FOR COLUMN SHIFT)

main33503-27170iCM5#,6#,KM5#,YM55,6#..MTM..DX198610-199310

33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

main33504-30110iCM5#,6#,KM5#,YM55,6#..3HC,4H,5H198610-199310

main33542-27010iCM5#,6#,KM51,YM55,6#..3HC,5H199611

33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)

main90303-17005×2iCM5#,6#,KM5#,YM55,6#..MTM..DX198610-199310

33513SHAFT, CONTROL SHAFT BRACKET, UPPER

main33513-26020iCM65..TS;CM5#,60,61,KM51,YM55,6#..5H199310-199611

main33513-36020iCM51,55,KM51,YM55..3HC,4HC198711

33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

main90501-14395iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199310-199611

33515BSEAT, CONTROL UPPER SHAFT (FOR COLUMN SHIFT)

main33515-30010iCM5#,6#,KM5#,YM55,6#..3HC,4H,4HC,5H198610-199310

33517RETAINER, CONTROL SHAFT UPPER SPRING

main33517-30010iCM5#,6#,KM51,YM55,6#..DX199611

33518BUSH, UPPER CONTROL SHAFT PIECE

main33518-35010iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199310-199611

main33518-36010iCM5#,6#,KM5#,YM55,6#..3HC,4H,4HC,5H198610-199310

33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

main90523-06019iCM5#,6#,KM5#,YM55,6#..3HC,4H,4HC,5H198610-199310

33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

main33522-36010iCM5#,6#,KM5#,YM55,6#..3HC,4H,4HC,5H198610-199310

33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)

main90249-07001iCM5#,6#,KM5#,YM55,6#..3HC,4H,4HC,5H198610-199310

33523ERING, E (FOR SHIFT LEVER PIN)

main96160-00500iCM5#,6#,KM51,YM55,6#..DX199611

33527CLEVER, CONTROL SHIFT (FOR COLUMN SHIFT)

main33527-27090iCM50,55,6#,KM5#,YM55,60..MTM..DX198610-198903

main33527-27091iCM5#,6#,KM5#,YM55,6#..MTM..DX198903-199310

33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)

main33535-27090iKM5#,YM55..4H198610-199008

main33535-27100iYM60..DX;CM5#,6#,KM51,YM55,65..5H198610-199310

33535ABUSH (FOR CONTROL SELECT LEVER)

main90386-13007×2iCM5#,6#,KM5#,YM55,6#..MTM..DX198610-199310

33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)

main33536-25010iCM5#,6#,KM5#,YM55,6#..MTM..DX198610-199310

33541CLEVER, SHIFT (FOR COLUMN SHIFT)

main33541-27200iCM50,55,6#,KM5#,YM55,60..3HC,4H,5H198610-198711

main33541-27260iCM50,55,6#..5H198711-198903

main33541-27261iCM5#,6#,KM51,YM55,6#..5H198903-199310

main33541-27262iCM65..TS;CM5#,60,61,KM51,YM55,6#..5H199502-199611

main33541-27360iCM5#,6#,KM51,YM55,6#..5H199611

main33541-27370iKM51..3HC199611

33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

main33571-27040iKM5#,YM55..4H198610-199008

main33571-27050iYM60..DX;CM5#,6#,KM51,YM55,65..5H198610-199310

main33571-27060iCM51,55,KM51..ATM198610-198910

main33571-27061iCM51,55,KM51,YM55..ATM..DX198910

33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

main33572-28010iCM51,55,KM51,YM55..3HC,4HC198610-199906

main33572-36010×2iCM65..TS;CM5#,60,61,KM51,YM55,6#..5H199310-199611

33574RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)

main33574-25010×2iCM5#,6#,KM5#,YM55,6#..MTM..DX198610-199310

33602LEVER SUB-ASSY, SELECT (FOR COLUMN SHIFT)

main33602-27090iKM5#,YM55..4H198610-199008

33607SUPPORT SUB-ASSY, CONTROL ROD (FOR COLUMN SHIFT)

main33607-27100iKM5#,YM55..4H198610-199008

main33607-27110iYM60..DX;CM5#,6#,KM51,YM55,65..5H198610-199310

33607BSEAL, OIL (FOR CONTROL ROD SUPPORT)

main90312-16004×2iCM65..TS;CM5#,60,61,KM51,YM55,6#..5H199310-199611

33642LEVER, GEAR SELECTING, NO.2

main33642-27040iKM5#,YM55..4H198610-199008

33686COVER, CONTROL LEVER DUST (FOR COLUMN SHIFT)

main33686-26010iCM5#,6#,KM51,YM55,6#..5H199611

33703ROD SUB-ASSY, GEAR SHIFTING, NO.2 (FOR COLUMN SHIFT)

main33703-27100iKM5#,YM55..4H198903-199008

main33703-27120iYM60..DX;CM5#,6#,KM51,YM55,65..5H198903-199310

33703APIN, W/HOLE (FOR GEAR SHIFTING ROD NO.2)

main90240-08042×2iCM5#,6#,KM5#,YM55,6#..MTM..DX198610-199310

33703BTURN BUCKLE(FOR GEAR SHIFTING NO.2 ROD)

main90587-08002iCM5#,6#,KM5#,YM55,6#..MTM..DX198610-199310

33706SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR COLUMN SHIFT)

main33706-27070iKM5#,YM55..4H198610-199008

main33706-27080iYM60..DX;CM5#,6#,KM51,YM55,65..5H198610-199310

33710AROD ASSY, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)

main33710-27100iCM5#,6#,KM5#,YM55,6#..MTM..DX198610-199310

33720DROD ASSY, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)

main33720-27110iKM5#,YM55..4H198610-199008

33745LEVER, GEAR SHIFTING, NO.2 (FOR COLUMN SHIFT)

main33745-27050iKM5#,YM55..4H198610-199008

main33745-27060iCM50,55,6#,YM60..MTM..DX198610-198903

main33745-27061iYM60..DX;CM5#,6#,KM51,YM55,65..5H198903-199310

33772BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)

main33772-20010×2iCM5#,6#,KM51,YM55,6#..5H199611

33772ARING, SNAP (FOR CROSS SHAFT SUPPORT BUSH)

main96151-01600iCM65..TS;CM5#,60,61,KM51,YM55,6#..5H199310-199611

33775COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT)

main33775-20020iCM5#,6#,KM5#,YM55,6#..MTM..DX198610-199310

9011908086

main90119-08086

9017008006

main90170-08006

9017008052

main90170-08052

9017908038

main90179-08038

9020108084

main90201-08084

9046814004

main90468-14004

9058014002

main90580-14002

9112150840

main91121-50840

9161160820

main91611-60820

9411040800

main94110-40800

9411041000

main94110-41000

9451200800

main94512-00800

9451201000

main94512-01000

50 parts on this diagram · 8 diagrams in section
