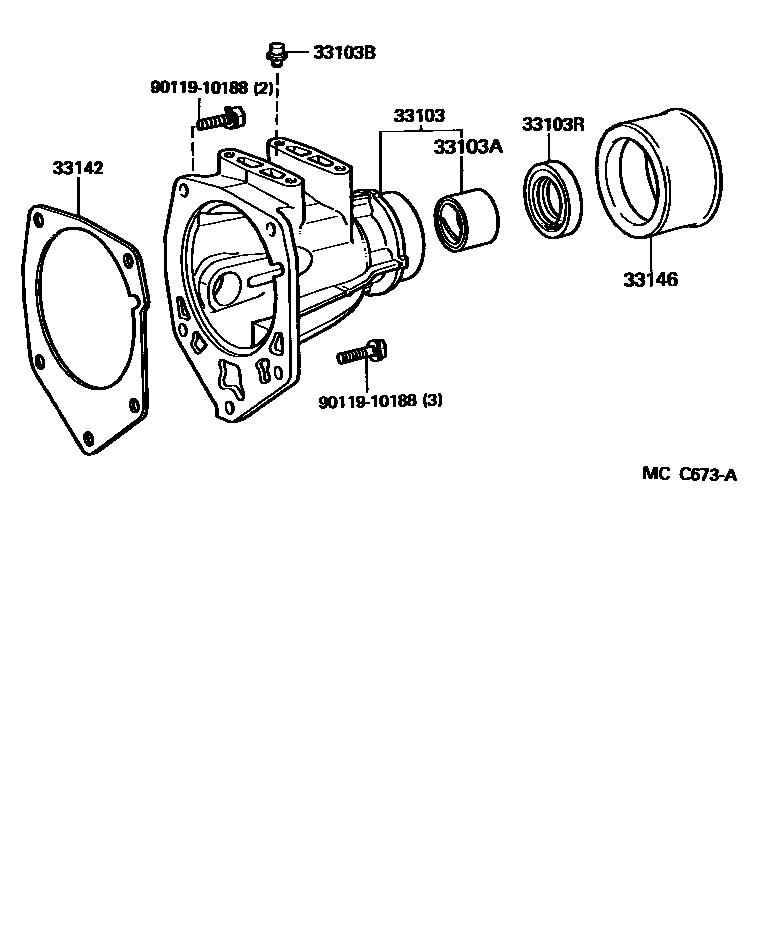

EXTENSION HOUSING (MTM)

0001 1 0002 1 0003 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-27020iKM5#,YM55..4H198610-198910

main33103-27021iKM5#,YM55..4H198910-199008

main33103-28010iCM50,55..5H198610-198808

main33103-28031iCM5#,KM51..MTM199109-199806

main33103-28040iKM51..5F198808-198810

main33103-28041iKM51..MTM; YM55..5H199109-199806

*103

main33103-28900iKM51..5F198610-198808

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72023iCM50,55,KM5#,YM55..MTM198610-198808

main90999-73120iCM5#,KM51..5F,5H198810-199906

33103BPLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)

main90930-03075iKM5#,YM55..4H198610-199008

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38032iCM5#,KM51,YM55..5F,5H198808-199906

main90311-38040iKM5#,YM55..4H198808-198910

main90311-38140iKM5#,YM55..4H198910-199008

33142GASKET, EXTENSION HOUSING(MTM)

main33138-28020iYM60;CM50,55,6#,KM51..5F,5H198610-198808

main33142-26010iKM5#,YM55..4H198610-199008

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iCM5#,KM51,YM55..MTM198610-199303

main33146-30020iCM5#,KM51,YM55..MTM199303-199806

9011910188

main90119-10188

7 parts on this diagram · 3 diagrams in section
