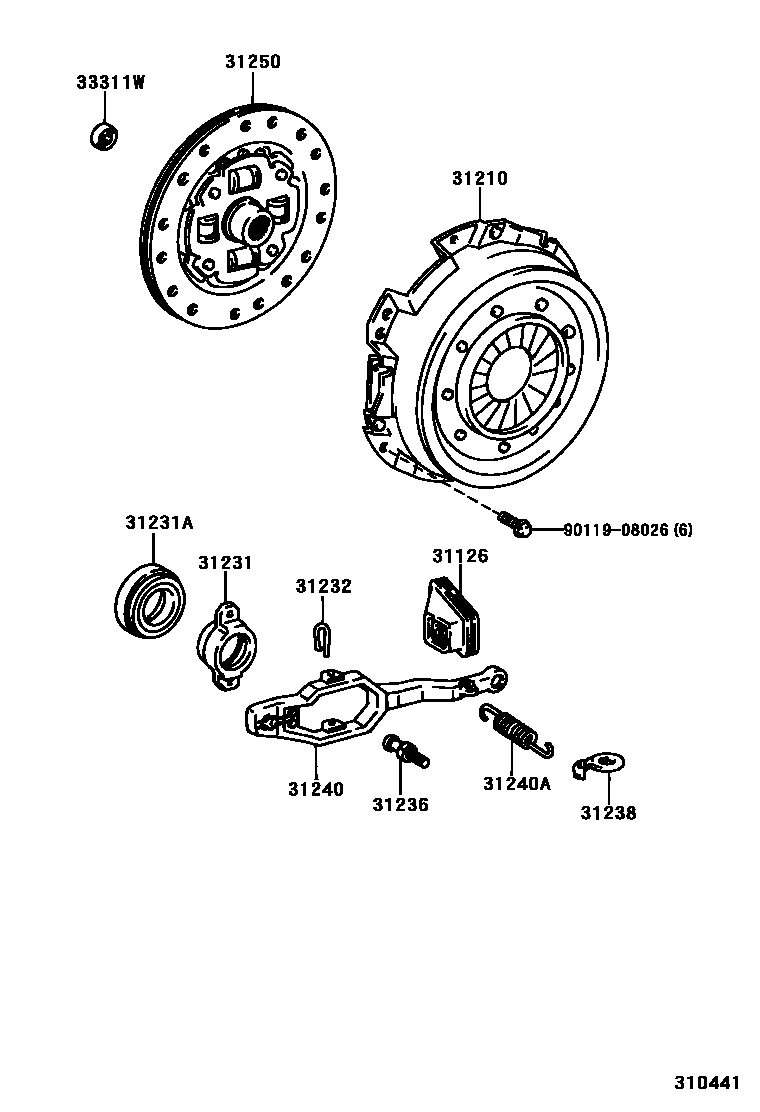

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iCM5#,6#,YM55,6#..MTM198610-199611

main31126-20070iKM51..5F,5H198610

main31126-27020iKM5#..4H198610-199008

31210COVER ASSY, CLUTCH

main31210-12180iKM51..MTM199104

main31210-22120iCM5#,YM55,6#..MTM198812

main31210-26030iCM50,55..5H198610-198702

main31210-26070iCM50,55,YM55,60..MTM198702-198808

main31210-26110iCM6#199310-199611

main31210-27010iKM5#..MTM198610-198907

main31210-27011iKM5#..MTM198907-199104

main31210-27030iCM6#198803-198808

main31210-35080iCM50,55,YM55,60..MTM198808-198812

main31210-35090iCM6#198808-199310

main31210-36029iCM6#,YM55,60198610-198803

31231HUB, CLUTCH RELEASE BEARING

main31231-27030iKM5#..4H198610-199008

main31231-36070iYM55,60;CM50,55,6#,KM51..5F,5H198610-198807

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iCM50,55,6#,KM5#,YM55,60..MTM198610-199008

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010iYM55,60;CM50,55,6#,KM51..5F,5H198610-198807

main31232-30020iKM5#..4H198610-199008

31236BALL, RELEASE FORK

main31236-30060iCM5#,6#,KM5#,YM55,6#..MTM198610-199611

31238HANGER, RELEASE FORK RETRACTING SPRING

main31238-27010iKM5#..4H198610-199008

31240FORK ASSY, CLUTCH RELEASE

main31204-20071iCM5#,6#,YM55,6#..MTM198610-199611

main31204-20080iKM51..5F198610-198807

main31204-22040iKM51..5F,5H198807

main31204-27011iKM5#..4H198610-199008

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-18311iKM5#..4H198610-199008

31250DISC ASSY, CLUTCH

main31250-20113iCM50,55..5H198610-198808

main31250-20114iCM50,55..5H198808-198811

main31250-20115iCM5#..5H198811-199007

main31250-20116iCM5#..5H199007-199205

main31250-20117iCM5#..5H199205-199708

main31250-20118iCM5#..5H199708-199906

main31250-20121iYM55,6#198610-199302

main31250-20240iYM55,6#..MTM199509-199702

main31250-20241iYM55,6#..MTM199702-199906

main31250-25122iYM55,6#..MTM199302-199509

main31250-27025iKM50198610-198910

main31250-27060iKM51..MTM198610-198908

main31250-27061iKM51..MTM198908-199509

main31250-28020iCM6#198610-198808

main31250-28021iCM6#198808-199203

main31250-28022iCM6#199203-199306

main31250-28023iCM6#199306-199812

main31250-28024iCM6#199812-199906

main31250-28140iKM51..MTM199509-199702

main31250-28141iKM51..MTM199702-199906

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iYM55,6#..MTM198610

main90363-12003iKM5#..MTM198610

main90363-12004iCM5#,6#..5H198610-199611

9011908026

main90119-08026

12 parts on this diagram · 3 diagrams in section
