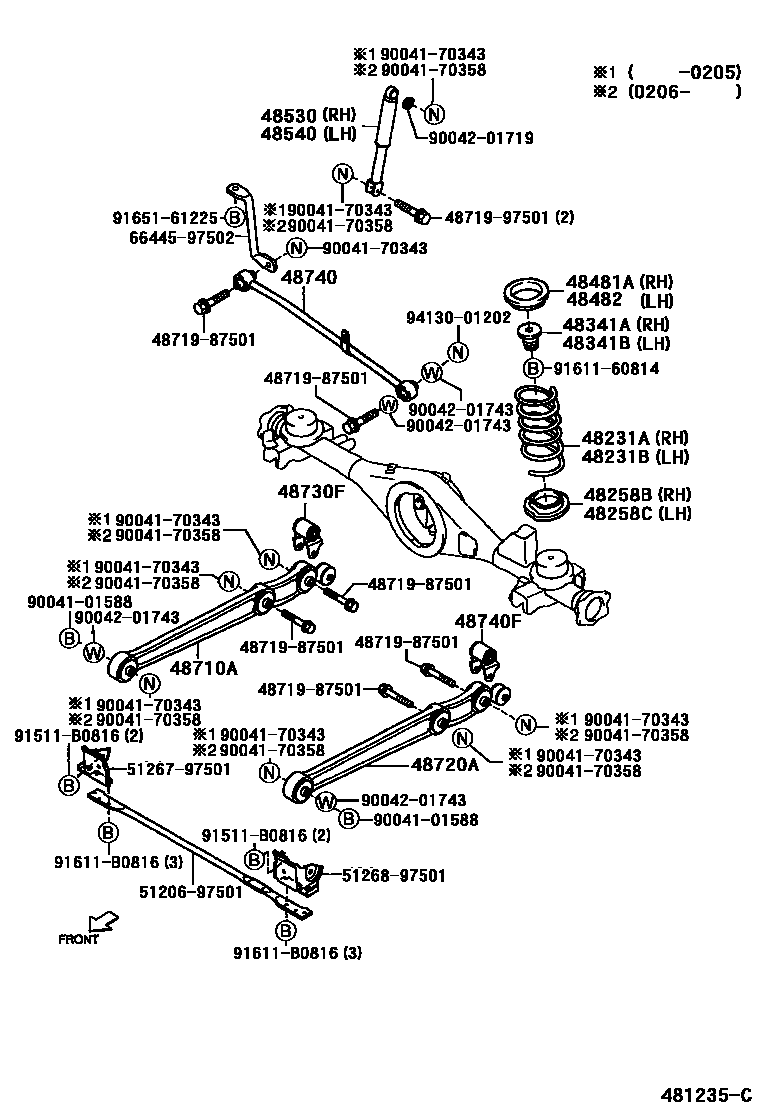

REAR SPRING & SHOCK ABSORBER
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48481ASEAT, REAR COIL SPRING, UPPER RH
48482SEAT, REAR SPRING, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
48540ABSORBER ASSY, SHOCK, REAR LH
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48740ROD ASSY, REAR LATERAL CONTROL
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
4871987501SHAFT, FRONT SUSPENSION LOWER ARM, NO.2
main48719-87501
4871997501SHAFT, FRONT SUSPENSION LOWER ARM, NO.2
main48719-97501
5120697501CROSSMEMBER SUB-ASSY, FRAME, NO.5
main51206-97501
5126797501GUSSET, FRAME CROSSMEMBER, LH
main51267-97501
5126897501REINFORCEMENT, REAR SHOCK ABSORBER MOUNTING, LH
main51268-97501
6644597502SHIM, MOUNTING, REAR
main66445-97502
9004101588
main90041-01588
9004170343
main90041-70343
9004170358
main90041-70358
9004201719
main90042-01719
9004201743
main90042-01743
91511B0816
main91511-B0816
9161160814
main91611-60814
91611B0816
main91611-B0816
9165161225
main91651-61225
9413001202
main94130-01202
31 parts on this diagram · 1 diagram in section
