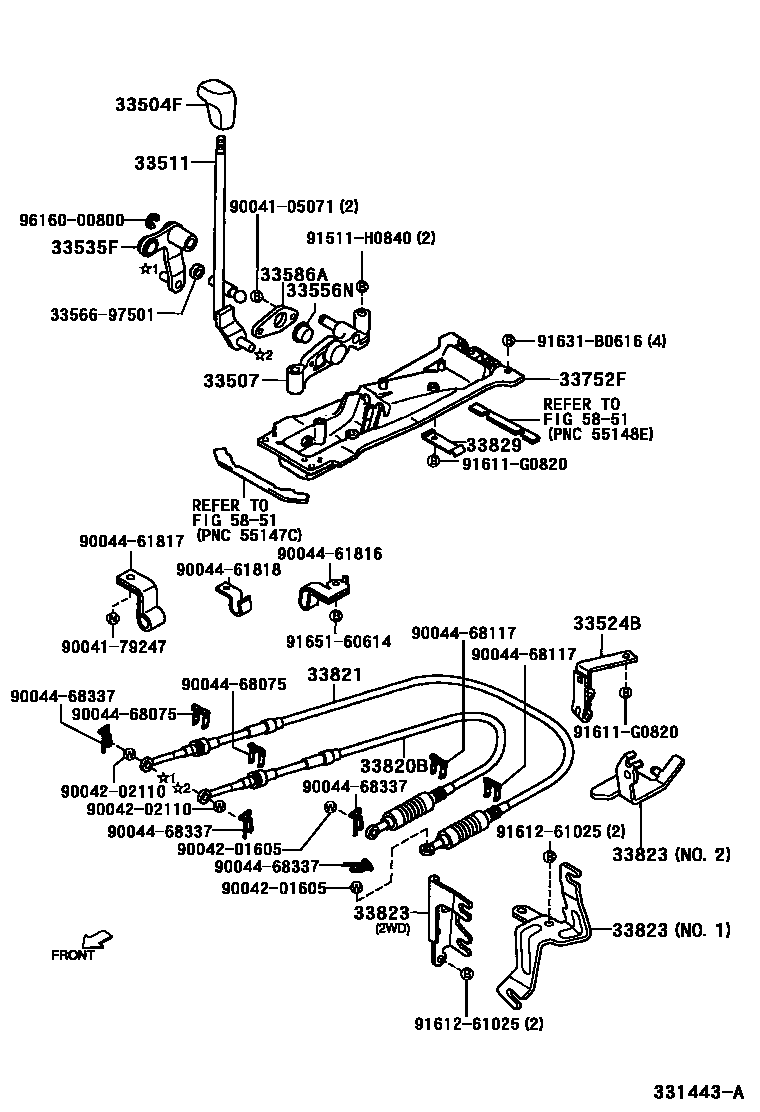

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-87401-23iS221,231..5MT200009

GRAY

33507BRACKET SUB-ASSY, SHIFT LEVER HOUSING

main33507-97501iS221,231..5MT200009

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

main33501-97501iS221,231..5MT200009

33524BBRACKET, CONTROL CABLE

main33524-97502iS221,231..5MT200009

33535FLEVER, CONTROL SELECT (FOR FLOOR SHIFT)

main33535-97501iS221,231..5MT200009

33556NSEAT, TRANSMISSION SHIFT LEVER BALL, NO.2

main33556-87202iS221,231..5MT200009

33586ASTOPPER, CONTROL LEVER (FOR FLOOR SHIFT)

main33586-97501iS221,231..5MT200009

33752FSUPPORT, CONTROL LINK (FOR FLOOR SHIFT)

main33752-97501iS221,231..5MT200009

33820BCABLE ASSY, TRANSMISSION CONTROL

main33530-97506iS221..5MT200009

main33530-97507iS231..5MT200009

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33540-97504iS221..5MT200009

main33540-97506iS231..5MT200009

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-97501iS231..5MT200009

main33823-97502iS231..5MT200009

main33823-97503iS221..5MT200009

33829SUPPORT, TRANSMISSION CONTROL CABLE

main33567-97501iS221,231..5MT200009

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

3356697501PIN, SHIFT LEVER STOP

main33566-97501

9004105071

main90041-05071

9004179247

main90041-79247

9004201605

main90042-01605

9004202110

main90042-02110

9004461816

main90044-61816

9004461817

main90044-61817

9004461818

main90044-61818

9004468075

main90044-68075

9004468117

main90044-68117

9004468337

main90044-68337

91511H0840

main91511-H0840

91611G0820

main91611-G0820

9161261025

main91612-61025

91631B0616

main91631-B0616

9165160614

main91651-60614

9616000800

main96160-00800

30 parts on this diagram · 1 diagram in section
