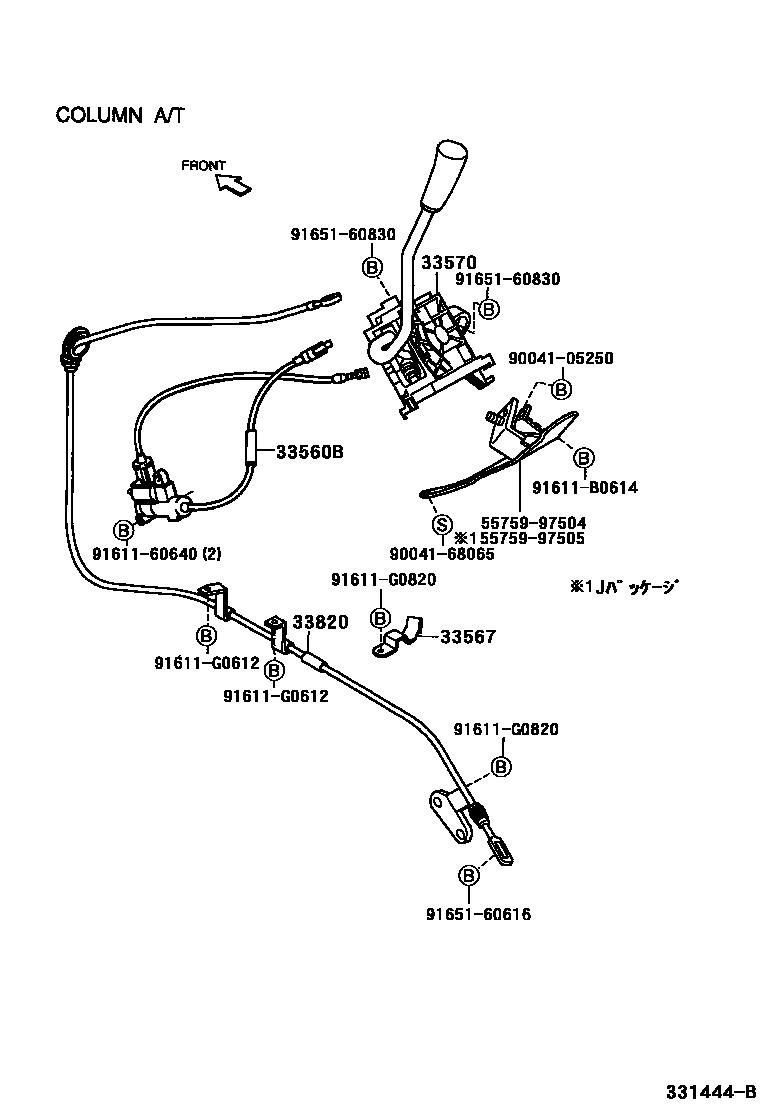

CONTROL SHAFT & CROSSSHAFT

33560BCABLE ASSY, SHIFT LOCK RELEASE

main33560-97502iS221,231..ATM200009

main33560-97503iS221,231..4AT200009-200106

main33560-97506iS221,231..ATM200106

33567CLAMP, CONTROL SHAFT TUBE

main33567-97506iS221,231..ATM200009

33570COLUMN SHIFT ASSY, TRANSMISSION

main33570-97504-03iS221,231..ATM..X200106

main33570-97507-01iS221,231..4AT..G200009-200106

main33570-97521-03iS221,231..ATM..X200106

GRAY

main33570-97524-01iS221,231..4AT..G200106-200206

main33570-97525-01iS221,231..G200206

33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)

main33520-97502iS221,231..ATM200009

5575997504CONNECTOR, COWL VENTILATOR DRAIN HOSE

main55759-97504

5575997505CONNECTOR, COWL VENTILATOR DRAIN HOSE

main55759-97505

9004105250

main90041-05250

9004168065

main90041-68065

9161160640

main91611-60640

91611B0614

main91611-B0614

91611G0612

main91611-G0612

91611G0820

main91611-G0820

9165160616

main91651-60616

9165160830

main91651-60830

14 parts on this diagram · 1 diagram in section
