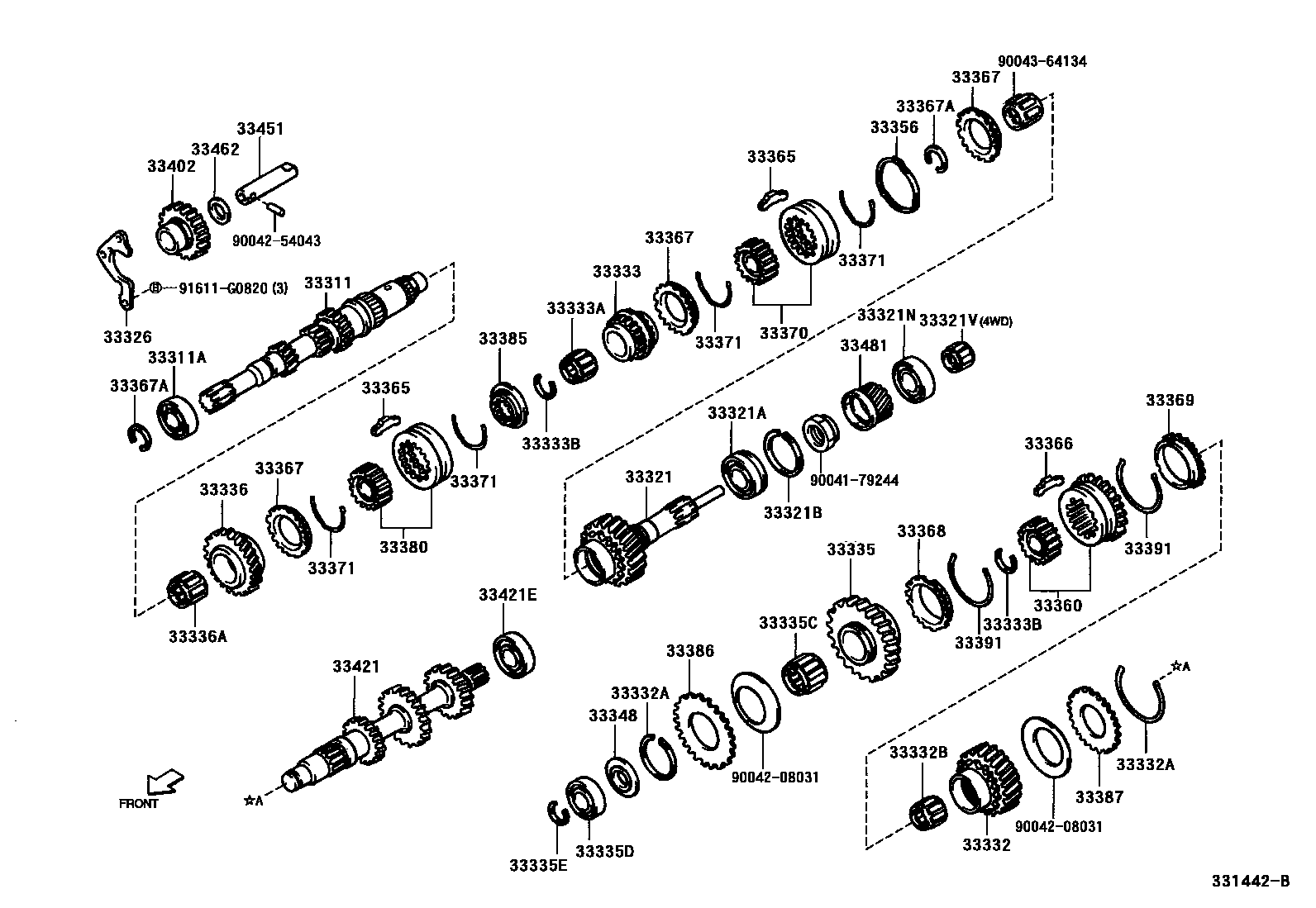

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33326PLATE, BEARING LOCK
33332GEAR, 2ND
33332ARING, SHAFT SNAP (FOR 2ND GEAR)
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33333BRING, SHAFT SNAP (FOR 3RD REAR)
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33335DBEARING(FOR 1ST GEAR)
33335ERING, SHAFT SNAP(FOR 1ST GEAR)
33336GEAR, 5TH
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33348WASHER, 1ST GEAR THRUST
33356SPRING, WAVE
33360HUB ASSY, SYNCHRONIZER, NO.1
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33367ARING, SHAFT SNAP(FOR NO.2 SYNCHRONIZER RING)
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33370HUB ASSY, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33380HUB ASSY, SYNCHRONIZER, NO.3
33385RETAINER, SHIFTING KEY
33386SUB-GEAR, NO.1
33387SUB-GEAR, NO.2
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402GEAR SUB-ASSY, REVERSE IDLER
33421GEAR, COUNTER
33421EBEARING, NEEDLE ROLLER(FOR COUNTER GEAR)
33451SHAFT, REVERSE IDLER GEAR
33462WASHER, REVERSE IDLER THRUST
33481GEAR, SPEEDOMETER DRIVE (MTM)
9004179244
main90041-79244
9004208031
main90042-08031
9004254043
main90042-54043
9004364134
main90043-64134
91611G0820
main91611-G0820
47 parts on this diagram · 1 diagram in section
