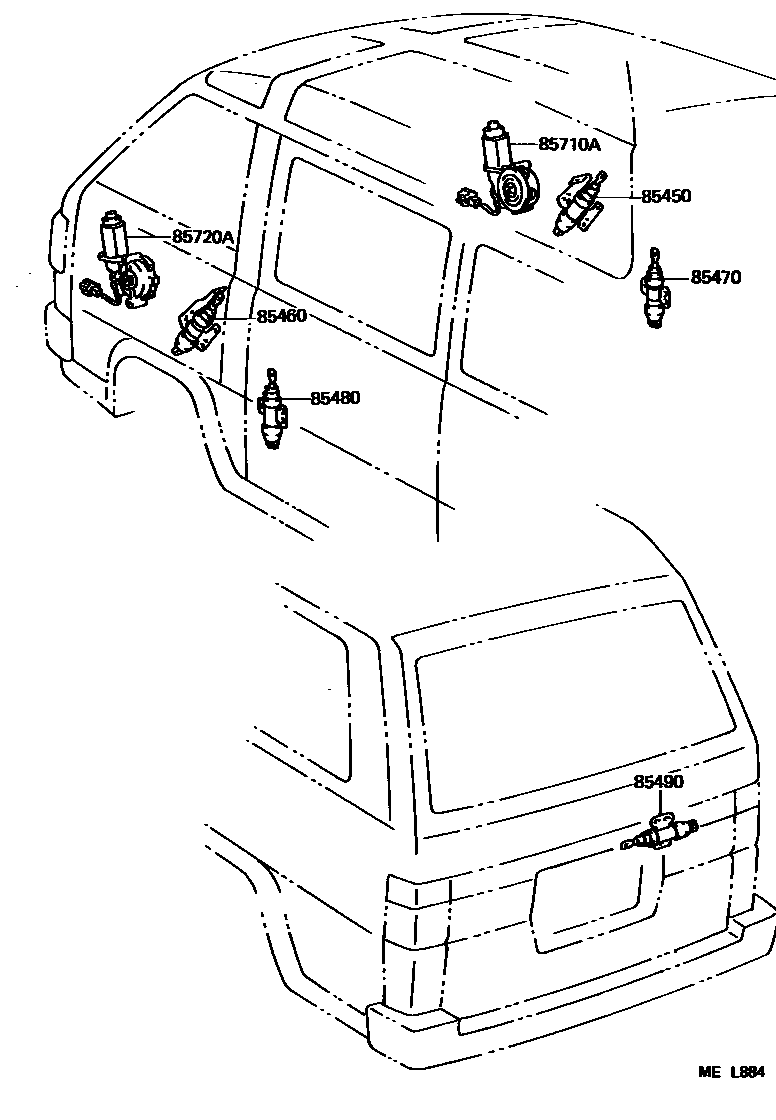

DOOR MOTOR & DOOR SOLENOID

85450SOLENOID ASSY, DOOR CONTROL, FRONT RH

main85450-95704iCM30,40,YM30,40..FXV198808-199201

main85450-95705iCM30,40,YM30,40..GXL198808-199201

85460SOLENOID ASSY, DOOR CONTROL, FRONT LH

main85460-95700iCM30,40,YM30,40..FXV198808-199201

main85460-95701iCM30,40,YM30,40..GXL198808-199201

85470SOLENOID ASSY, DOOR CONTROL, REAR RH

main85470-95700iCM3#,4#,KM3#,YM31..V5D,W5D198808-199201

85480SOLENOID ASSY, DOOR CONTROL, REAR LH

main85480-95701iCM30,40,YM30,40..FXV198808-199201

main85480-95702iCM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW198808-199201

85490SOLENOID ASSY, DOOR CONTROL BACK

main85490-95701iCM30,40,YM30,40..FXV198808-199201

main85490-95702iCM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW198808-199201

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-20060iCM30,40,YM30,40..FXV,GXL198808-199201

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85720-20060iCM30,40,YM30,40..FXV,GXL198808-199201

7 parts on this diagram · 1 diagram in section
