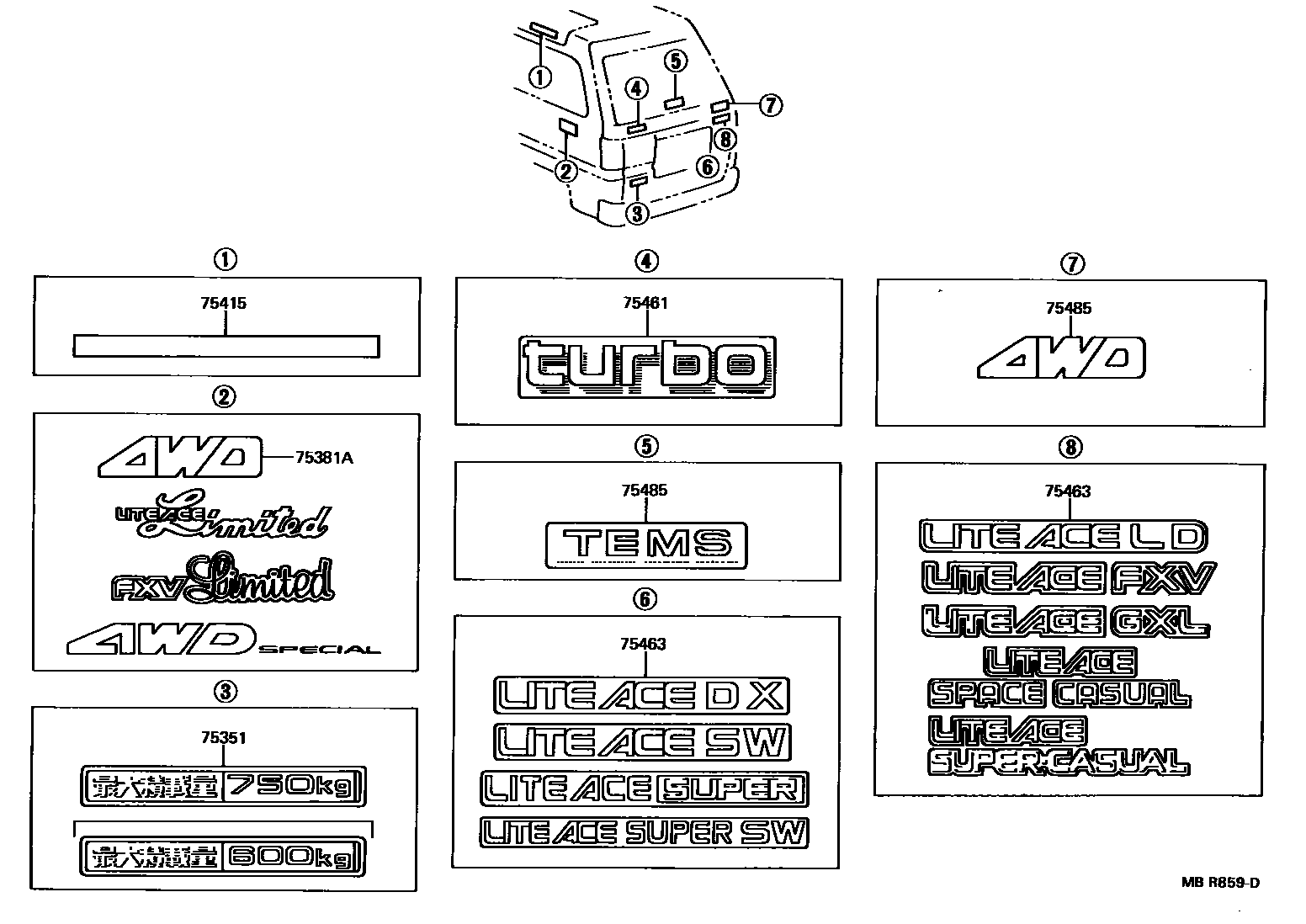

EMBLEM & NAME PLATE

0001 1 0002 1

75351PLATE, REAR NAME, NO.6 (MAXIMUM LOAD)

main75459-95703iKM35198808-199008

main75459-95704iCM31,36,41,KM31,36,YM31198808-199201

75381APLATE, QUARTER PANEL

main75357-27010iCM40..GXL199104-199104

main75381-27010iCM30,40,YM30,40..GXL198912-199002

main75381-27020iCM30,40,YM30,40..GXL199005-199007

main75381-27030iCM30,40,YM30,40..GXL199010-199011

main75381-27040iCM30,40,YM30,40..GXL199101-199103

main75381-27060iCM30,40,YM30,40..GXL199105-199108

main75381-27070iCM30,40,YM30,40..GXL199108-199112

main75381-27080iCM30,40,YM30,40..GXL199108-199112

main75381-95703-03iCM4#,YM40..DLX,LD,SSW,SW198808-199201

SILVER,3F1 ,8B2

main75381-95703-13iCM4#,YM40..DLX,LD,SSW,SW198808-199201

DARK GRAY,045

main75381-95704iCM30,40,YM30,40..GXL198903-198904

main75381-95705iCM30,40,YM30,40..GXL198906-198908

main75381-95706iCM30,40,YM30,40..GXL198909-198910

main75381-95707iCM30,40,YM30,40..FXV198909-198910

75415ORNAMENT, ROOF SIDE

main75415-95701iCM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD)198808-199201

75461PLATE, REAR NAME, NO.2 (MODEL MARK)

main75442-95700iCM30,40..TD198808-199201

75463PLATE, REAR NAME, NO.4 (GRADE MARK)

main75441-95701-04iCM40..4FC..SW;CM30,40,KM30,YM40..W4D..SW198808-199201

main75441-95701-08iCM40..4FC..SW;CM30,40,KM30,YM40..W4D..SW198808-199201

main75441-95704iCM31,KM31,36,YM31..SUP198808-199201

main75441-95706iCM36,41,KM35,36,YM31..DLX198808-199201

main75441-95712iCM30,40,YM30,40..FXV198808-199201

main75441-95713iCM30,40,YM30,40..GXL198808-199201

main75441-95714iCM30,KM30..SUC198808-199201

main75441-95715iKM30..SCA198808-199201

main75441-95716-04iCM30,40,KM30,YM40..LD198808-199201

main75441-95716-08iCM30,40,KM30,YM40..LD198808-199201

main75441-95718-04iCM30,40..SSW198910-199201

main75441-95718-08iCM30,40..SSW198910-199201

75485PLATE, BACK WINDOW NAME

main75312-95702-03iCM40,YM40..GXL199008-199201

main75312-95702-03iCM30,40,YM30,40..GXL198903-198903

main75312-95702-03iCM30,40,YM30,40..GXL198906-198908

main75312-95702-03iCM30,40,YM30,40..GXL198909-198910

main75312-95702-03iCM30,40,YM30,40..GXL198912-199002

main75312-95702-03iCM40,YM40..FXV198808-199008

main75312-95702-03iCM40,YM40..FXV198808-199201

main75312-95702-03iCM40,YM40..GXL198808-199008

main75312-95702-03iCM40,YM40..FXV199008-199201

main75312-95702-13iCM40,YM40..GXL198808-199201

main75312-95702-13iCM4#,YM40..DLX,LD,SSW,SW198808-199008

main75312-95702-13iCM4#,YM40..DLX,LD,SSW,SW198808-199201

main75312-95702-13iCM30,40,YM30,40..GXL199010-199011

main75312-95702-13iCM30,40,YM30,40..GXL199101-199103

main75312-95702-13iCM40..GXL199104-199104

main75312-95702-13iCM30,40,YM30,40..GXL199105-199108

main75312-95702-13iCM30,40,YM30,40..GXL199108-199112

main75312-95702-13iCM30,40,YM30,40..GXL199005-199007

main75312-95702-13iCM30,40,YM30,40..FXV198909-198910

main75485-95701iCM30,40,YM30,40..FXV198808-199201

6 parts on this diagram · 2 diagrams in section
