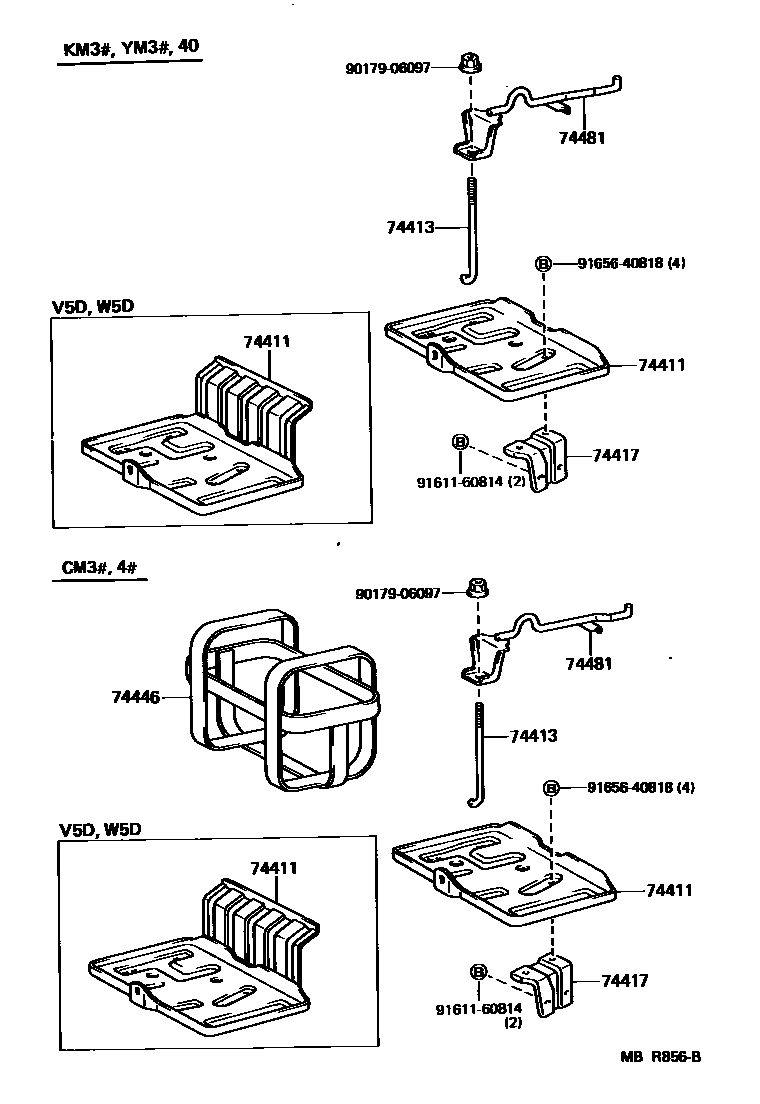

BATTERY CARRIER

74411CARRIER, BATTERY

main74410-95709iCM3#,41,KM3#,YM31..V5D,W5D198808-199201

main74410-95711iCM30,40..W4D..TD198808-199201

main74410-95712iCM36..V4D..VSG;CM41..V4D..05S;CM30,40..W4D..(FXV,GXL,LD,SUC,SW); CM36..VSP;CM41..V4D..02S198808-199201

main74410-95713iCM40..W5D..4FC;CM31,36,41..V5D198808-199201

main74410-95716iCM40..W5D198910-199201

main74411-95710iCM30,36,41,KM3#,YM3#,40..(V4D,W4D)..(CBR,DSL)198808-199201

74413BOLT, BATTERY CLAMP

main74451-95J00iCM3#,4#,KM3#,YM3#,40198808-199201

74417BRACKET, BATTERY CARRIER

main74417-95704iCM3#,4#,KM3#,YM3#,40198808-199201

74446BAND, BATTERY

main74446-95702iCM3#,4#198808-199201

74481CLAMP, BATTERY HOLD DOWN

main74404-95703iKM3#,YM3#,40198808-199201

main74404-95704iCM3#,4#198808-199201

main74404-95705iCM36..VSG;CM40..4FC;CM41..05S;CM41..V5D..02S;CM40..W4D..5F..(FXV,GXL,LD,SW);CM30,31..(V5D,W4D)..(FXV,GXL,LD,SUC,SUP,SW); CM36..VSP;CM41..V4D..02S198808-199201

9017906097

main90179-06097

9161160814

main91611-60814

9165640818

main91656-40818

8 parts on this diagram · 1 diagram in section
