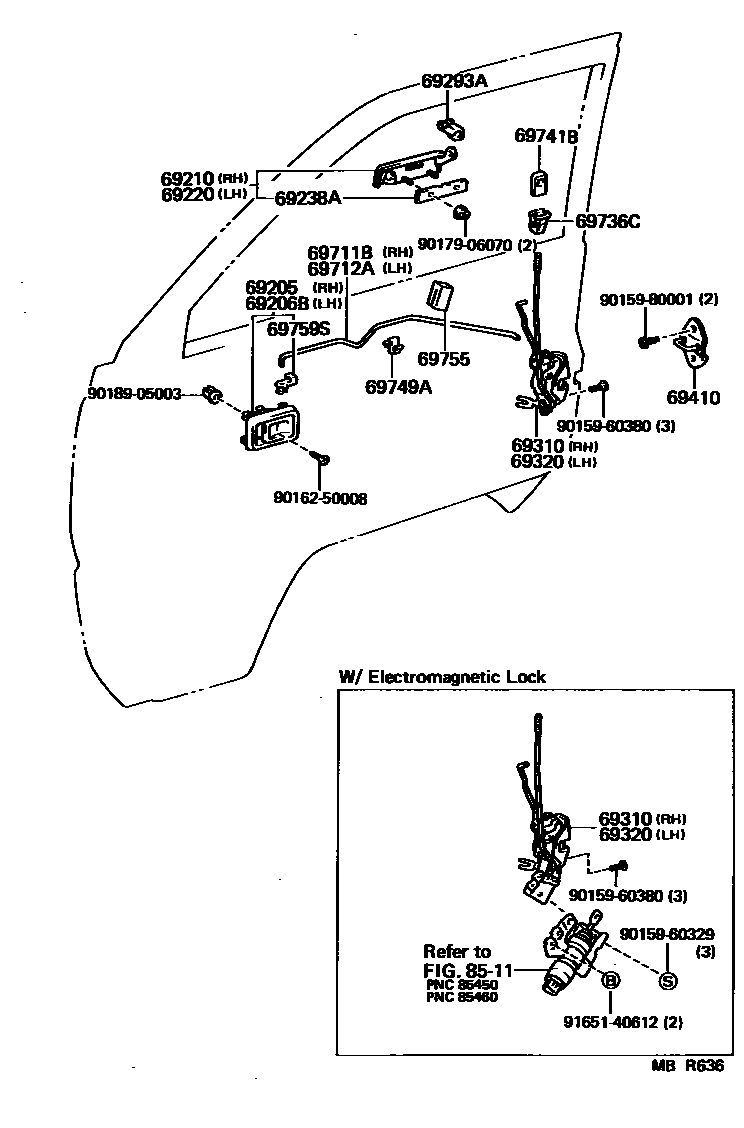

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-95703-13iCM3#,4#,KM3#,YM3#,40198808-199201

GRAY,TRIM1#

main69205-95703-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-95703-13iCM3#,4#,KM3#,YM3#,40198808-199201

GRAY,TRIM1#

main69206-95703-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-95701iCM3#,4#,KM3#,YM30,40198808-198809

main69210-95702iCM3#,4#,KM3#,YM3#,40198809-199201

main69210-95703iCM30,40,YM30,40..FXV198909-198910

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-95701iCM3#,4#,KM3#,YM30,40198808-198809

main69220-95702iCM3#,4#,KM3#,YM3#,40198809-199201

main69220-95703iCM30,40,YM30,40..FXV198909-198910

69238APAD, DOOR OUTSIDE HANDLE

main69238-95J00×2iCM3#,4#,KM3#,YM3#,40198808-199201

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iCM3#,4#,KM3#,YM3#,40198808-199201

main69293-12040iCM3#,4#,KM3#,YM3#,40198808-199201

69310LOCK ASSY, FRONT DOOR, RH

main69310-95705iCM30,40,YM30,40..FXV,GXL198808-199201

main69310-95706iCM3#,4#,KM3#,YM31,40..DLX,LD,SCA,SSW,SUC,SUP,SW198808-199201

69320LOCK ASSY, FRONT DOOR, LH

main69320-95704iCM30,40,YM30,40..FXV,GXL198808-199201

main69320-95705iCM3#,4#,KM3#,YM31,40..DLX,LD,SCA,SSW,SUC,SUP,SW198808-199201

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-89103×2iCM3#,4#,KM3#,YM3#,40198808-199201

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-95700iCM3#,4#,KM3#,YM3#,40198808-199201

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-95700iCM3#,4#,KM3#,YM3#,40198808-199201

69736CGUIDE, FRONT DOOR LOCKING LINK

main69736-12030×2iCM3#,4#,KM3#,YM3#,40198808-199201

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-90K00-03×2iCM3#,4#,KM3#,YM3#,40198808-199201

SHADOW GRAY,TRIM1#

main69741-90K00-36×2iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-30020×4iCM3#,4#,KM3#,YM3#,40198808-199201

69755SILENCER, FRONT DOOR LOCK LINK

main69759-95500×2iCM3#,4#,KM3#,YM3#,40198808-199201

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050iCM3#,4#,KM3#,YM3#,40198808-199201

PINK

main69759-24070iCM3#,4#,KM3#,YM3#,40198808-199201

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9015960329

main90159-60329

9015960380

main90159-60380

9015980001

main90159-80001

9016250008

main90162-50008

9017906070

main90179-06070

9018905003

main90189-05003

9165140612

main91651-40612

24 parts on this diagram · 1 diagram in section
