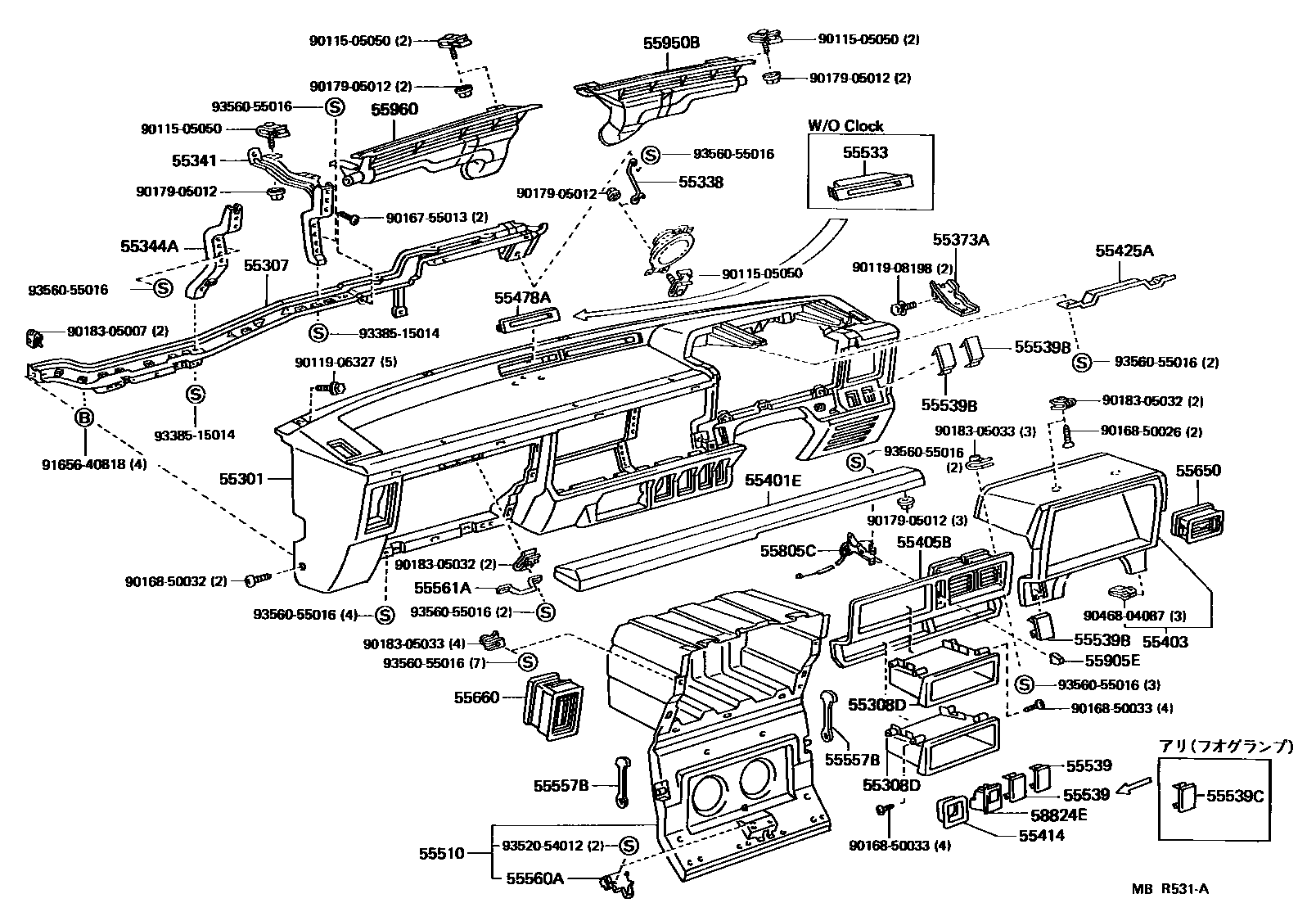

INSTRUMENT PANEL & GLOVE COMPARTMENT

55301PANEL SUB-ASSY, INSTRUMENT

main55311-95709-03iCM40,YM40..FXV; CM40,YM40..GXL198808-199201

main55311-95709-16iCM40,YM40..FXV; CM40,YM40..GXL198808-199201

main55311-95710-03iCM40,YM40..GXL;CM30,KM30,YM30..FXV,GXL,SCA,SUC198808-199201

GRAY,TRIM1#

main55311-95710-16iCM40,YM40..GXL;CM30,KM30,YM30..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

main55311-95711-03iCM30,40,KM30,YM40..LD,SSW,SW198808-199201

GRAY,TRIM1#

main55311-95713-13iCM31,36,41,KM31,35,36,YM31198808-199201

GRAY,TRIM1#

55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER

main55307-95703iCM3#,4#,KM3#,YM3#,40198808-199201

55308DBOX SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-95701iCM3#,4#,KM3#,YM3#,40198808-199201

55338EXTENSION, INSTRUMENT PANEL REINFORCEMENT, NO.1

main55338-95700iCM3#,4#,KM3#,YM3#,40198808-199201

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-95702iCM3#,4#,KM3#,YM3#,40198808-199201

55344ABRACE, INSTRUMENT PANEL TO COWL, NO.3

main55344-95700iCM3#,4#,KM3#,YM3#,40198808-199201

55373ABRACKET, OIL RESERVOIR TANK

main55035-27010iCM3#,4#,KM3#,YM3#,40199012-199201

main55373-95700iCM3#,4#,KM3#,YM3#,40198808-199012

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-95704-03iCM30,40,KM30,YM40..SSW,SW198808-199201

GRAY,TRIM1#

main55401-95707-03iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC198808-199201

GRAY,TRIM1#

main55401-95707-06iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

55403HOOD SUB-ASSY, METER

main55403-95702-03iCM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW198808-199201

GRAY,TRIM1#

main55403-95706-03iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

GRAY,TRIM1#

main55403-95706-06iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

main55403-95708-03iCM30,40,KM30,YM40..LD198808-199201

GRAY,TRIM1#

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-95703-01iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

BLACK,TRIM1#,4#

main55405-95703-13iCM3#,4#,KM3#,YM31,40..DLX,LD,SSW,SUP,SW198808-199201

GRAY,TRIM1#

55414BEZEL, CIGAR LIGHTER HOLE

main55414-95J00iCM3#,4#,KM3#,YM3#,40198808-199201

55425ABRACKET, METER HOOD SET

main55425-95702iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC198808-199201

55478ABEZEL, AUTO CLOCK HOLE

main55478-95701-13iCM40,YM40..GXL,LD,SSW,SW;CM30,36,41,KM35,36,YM3#..DLX,FXV,GXL198808-199201

GRAY,TRIM1#

main55478-95701-16iCM40,YM40..GXL;CM30,YM30..FXV,GXL198808-199201

SABLE,TRIM4#

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-95707-13iCM3#,4#,KM3#,YM31,40..DLX,LD,SCA,SSW,SUC,SUP,SW198808-199201

GRAY,TRIM1#

main55501-95707-16iCM30,KM30..SCA,SUC198808-199201

SABLE,TRIM4#

main55501-95708-03iCM30,40,YM30,40..FXV,GXL198808-199201

GRAY,TRIM1#

main55501-95708-16iCM30,40,YM30,40..FXV,GXL198808-199201

SABLE,TRIM4#

55533COVER, AUTO CLOCK HOLE

main55423-95702-13iCM3#,41,KM3#,YM31..DLX,LD,SCA,SSW,SUC,SUP,SW198808-199201

GRAY,TRIM1#

main55423-95702-16iCM30,KM30..SCA,SUC198808-199201

SABLE,TRIM4#

55539COVER, SPARE SWITCH HOLE

main55539-24010-13iCM30,40..4FC;CM31,36,41,KM3#,YM3#,40;CM30,40..5F..(LD,SSW,SW)198808-199201

GRAY,TRIM1#

main55539-24010-46iCM30,40..W4D..4FC;KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

main55539-95705-01iYM30;CM30..4FC..GXL;CM30..5F..(FXV,GXL,SUC);CM40,KM30,YM40..GXL,SCA,SUC198808-199201

BLACK,TRIM1#,4#

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-32010-13iCM36,40,YM31,40..DLX,SUP,SW;CM30,31,41,KM3#..(3FC,4H,5F,5H)..(DLX,LD,SSW,SUP,SW)198808-199201

SHADOW GRAY,TRIM1#

55539CCOVER, SPARE SWITCH HOLE

main55539-95702-03iCM40..W5D..4FC199008-199201

GRAY,TRIM1#

55557BSTOPPER, GLOVE COMPERTMENT DOOR CHECK

main55557-95700×2iCM3#,4#,KM3#,YM3#,40198808-199201

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-95704-13iCM3#,4#,KM3#,YM3#,40198808-199201

GRAY,TRIM1#

main55560-95704-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-95702iCM3#,4#,KM3#,YM30,40198808-198911

main55561-95704iCM3#,4#,KM3#,YM3#,40198911-199201

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-95701-01iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

BLACK,TRIM1#,4#

main55650-95701-13iCM3#,4#,KM3#,YM31,40..DLX,LD,SSW,SUP,SW198808-199201

GRAY,TRIM1#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-95701-13iCM3#,4#,KM3#,YM3#,40198808-199201

GRAY,TRIM1#

main55660-95701-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

55805CBRACKET SUB-ASSY, AIR DAMPER CONTROL LEVER

main55805-95704iCM3#,4#,KM3#,YM3#,40198808-199201

55905EKNOB SUB-ASSY, CONTROL

main55905-12050-01iCM3#,4#,KM3#,YM31,40..DLX,LD,SSW,SUP,SW; CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

BLACK,TRIM1#; BLACK,TRIM1#,4#

55950BNOZZLE ASSY, DEFROSTER, RH

main55950-95703iCM3#,4#,KM3#,YM3#,40198808-199201

55960NOZZLE ASSY, DEFLOSTER, LH

main55960-95702iCM3#,4#,KM3#,YM3#,40198808-199201

58824EBOX, INSTRUMENT PANEL COIN

main58824-95703-13iCM40..W4D;CM40..W5D..5F;CM3#,41,KM3#,YM3#,40198808-199201

GRAY,TRIM1#

main58824-95703-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

9011505050

main90115-05050

9011906327

main90119-06327

9011908198

main90119-08198

9016755013

main90167-55013

9016850026

main90168-50026

9016850032

main90168-50032

9016850033

main90168-50033

9017905012

main90179-05012

9018305007

main90183-05007

9018305032

main90183-05032

9018305033

main90183-05033

9046804087

main90468-04087

9165640818

main91656-40818

9338515014

main93385-15014

9352054012

main93520-54012

9356055016

main93560-55016

44 parts on this diagram · 1 diagram in section
