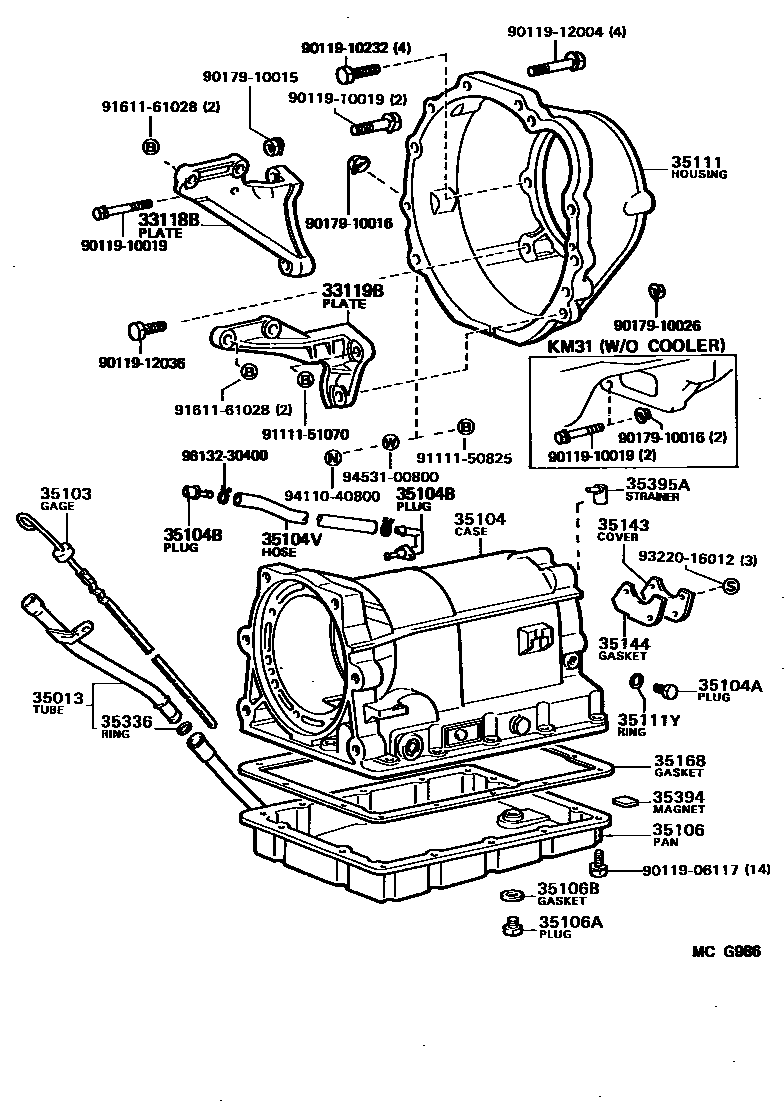

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1 0003 1

33118BPLATE, STIFFENER, RH(ATM)

main33118-12080iKM30,31,36..3FC198808-199201

main33118-14033iCM3#,40..4FC198808-199201

main33118-28010iYM3#,40..4FC198808-199201

33119BPLATE, STIFFENER, LH(ATM)

main33119-12050iKM3#..3FC199008-199201

main33119-14050iCM3#,40..4FC198808-199201

main33119-28010iYM3#,40..4FC198808-199201

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-27020iKM30,31,36..3FC198808-198908

main35013-27030iYM40..4FC198808-199201

main35013-27040iYM3#..4FC198808-199201

main35013-27050iKM30,31,36..3FC198908-199201

main35013-27060iCM3#..4FC198910-199201

main35013-28030iCM3#..4FC198808-198910

main35013-28050iCM40..4FC198808-199201

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-27010iKM30,31,36..3FC198808-198908

main35103-27020iYM3#,40..4FC198808-199201

main35103-27030iKM30,31,36..3FC198908-199201

main35103-27041iCM3#..4FC198910-199201

main35103-28020iCM40..4FC198808-199201

main35103-30101iCM3#..4FC198808-198910

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22026iKM30,31,36..3FC198808-199201

main35104-26021iCM3#..4FC198808-199201

main35104-26030iCM40..4FC198808-199201

main35104-30083iYM3#,40..4FC198808-199201

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iCM3#,KM30,31,36,YM3#..ATM; CM40,YM40..4FC198808-199201

T/M CASE SIDE

main90930-03099iCM3#,KM30,31,36,YM3#..ATM198808-199201

BODY SIDE

35104VHOSE (FOR BREATHER PLUG)

main90445-11084iCM3#,KM30,31,36,YM3#..ATM198808

main90447-11018iCM40,YM40..4FC198808-199201

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-14020iKM30,31,36..3FC198808-199008

main35106-14021iKM3#..3FC199008-199201

main35106-27010iYM30..4FC198808-199003

main35106-27011iYM3#..4FC199003-199201

main35106-30050iCM3#..4FC198808-199001

main35106-30051iCM3#..4FC199001-199201

main35107-27010iCM40,YM40..4FC198808-199104

main35107-27011iCM40,YM40..4FC199104-199201

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-12080iKM30,31,36..3FC198808-199008

main35111-27020iYM3#,40..4FC198808-199201

main35111-27030iCM3#,40..4FC198808-199201

main35111-27040iKM3#..3FC199008-199201

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199012

main35144-28010iCM3#,40,KM3#,YM3#,40..ATM199012-199201

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

35395ASTRAINER, GOVERNOR OIL

main35395-40010iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

9011906117

main90119-06117

9011910019

main90119-10019

9011910232

main90119-10232

9011912004

main90119-12004

9011912036

main90119-12036

9017910015

main90179-10015

9017910016

main90179-10016

9017910026

main90179-10026

9111150825

main91111-50825

9111151070

main91111-51070

9161161028

main91611-61028

9322016012

main93220-16012

9411040800

main94110-40800

9453100800

main94531-00800

9613230400

main96132-30400

34 parts on this diagram · 3 diagrams in section
