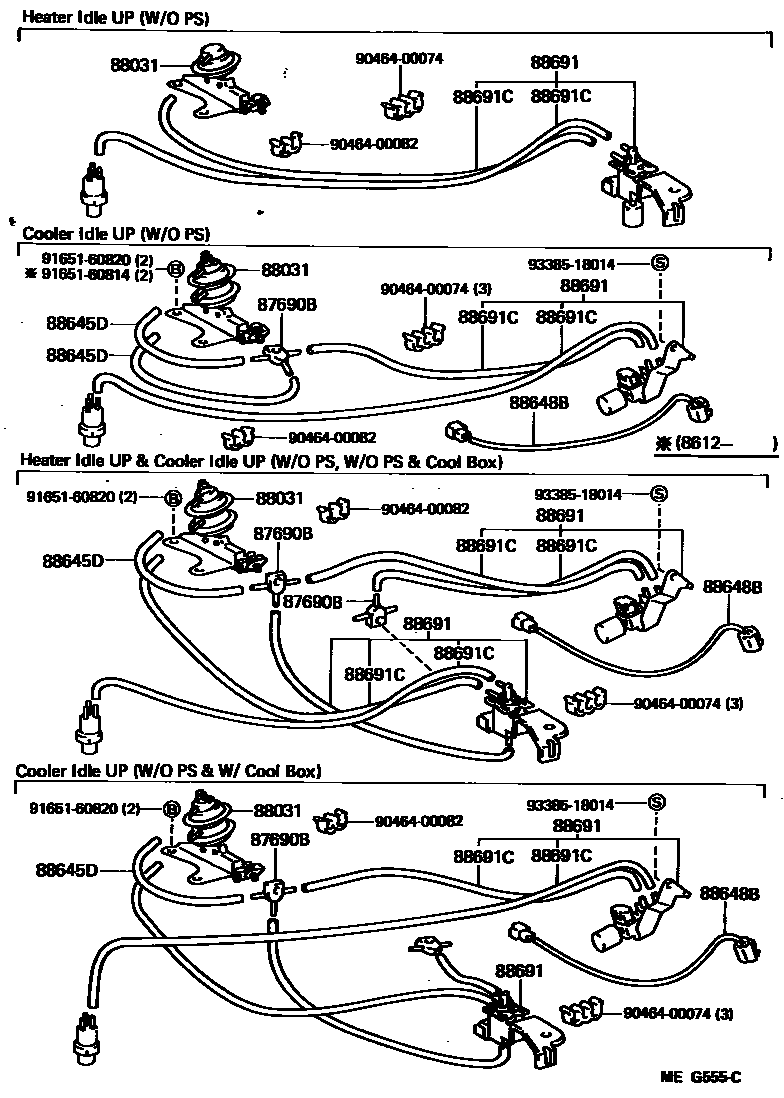

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

87690BWAY, 3

main90413-04005iCM3#; KM3#; KM30,31,36; KM30..MRF198509-198808

*CIU; *HIU,W/PS; COOL BOX

88031ACTUATOR SET, IDLE-UP

main21908-13010iKM30,31,36198509-198808

*HIU,W/O PS

main88031-12081iKM35198509-198808

*CIU

main88031-27020iKM30,31,36198509-198808

*CIU

main88031-27030iKM35198509-198808

*HIU

main88031-28020iCM3#,4#; CM30,36..4FC198509-198808

*CIU; *HIU

88645DHOSE (FOR IDLE UP DEVICE)

main90999-92002×2iKM30,31,36198712-198808

main95411-19930×2iKM30,31,36198509-198712

88648BWIRING, COOLER, NO.1

main88648-95714iKM30198509-198808

*CIU

main88648-95718iKM31,35,36198509-198808

*CIU

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-95728iKM30..3FC..SW198608-198808

COOL BOX

main88690-95729iKM30,31,36198509-198808

*HIU,W/PS

main88690-95730iCM30198608-198808

COOL BOX

main88690-95734iCM3#,40198509-198808

*CIU

main88690-95737iYM30,40198509-198808

*CIU

main88690-95749iYM30,40198509-198808

COOL BOX;*HIU

main88690-95750iKM35198509-198808

*CIU

main88690-95753iKM30,31,36198509-198808

*CIU

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main90445-07066iCM30,36..4FC198509-198708

main90445-08197iCM30,36..4FC198708-198808

*HIU,L=1050

main90999-92002iCM3#,40; YM30,40198712-198808

main90999-92003iCM30,36..4FC; KM3#; KM30,31,36; YM30,40198712-198808

main90999-92004iCM3#,40198712-198808

main95411-10030iYM30,40198509-198712

main95411-10060iKM3#; KM30,31,36198509-198712

main95411-10095iCM3#,40198509-198712

main95411-10160iYM30,40198509-198712

main95411-19930iCM3#,40; YM30,40198509-198712

main95411-19960iCM30,36..4FC; YM30,40198509-198712

9046400074

main90464-00074

9046400082

main90464-00082

9165160814

main91651-60814

9165160820

main91651-60820

9338518014

main93385-18014

11 parts on this diagram · 5 diagrams in section
