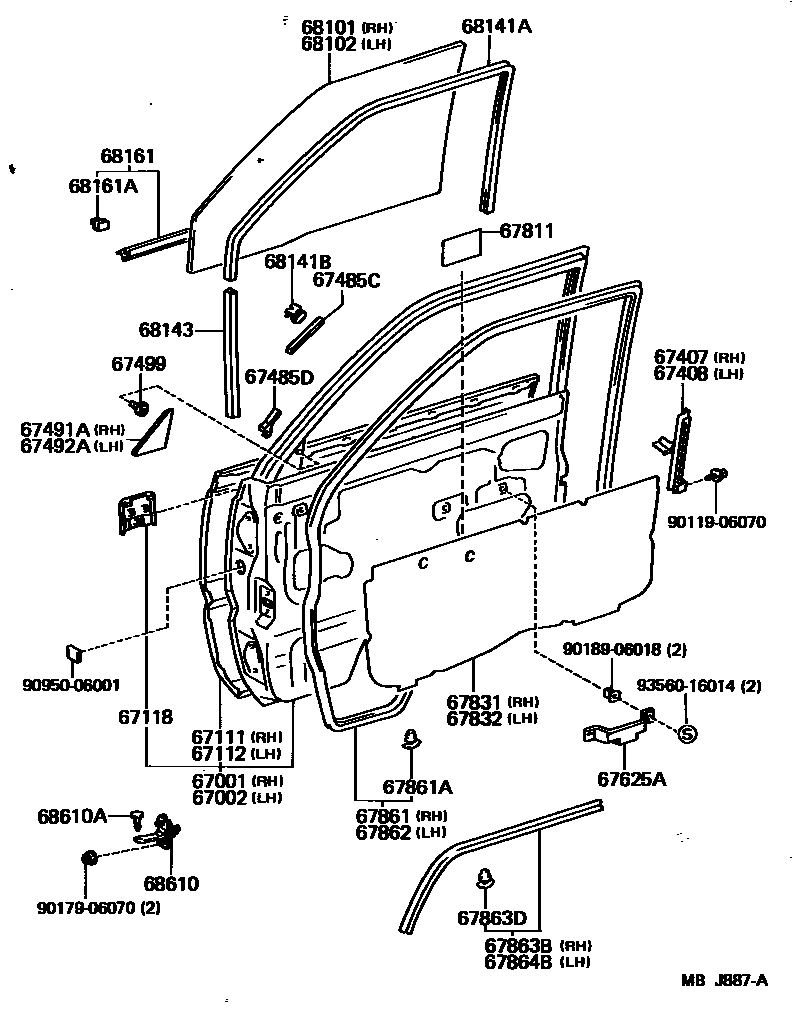

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-95729iKM35198509-198703

main67001-95730iCM3#,4#,KM30,31,36,YM40..DLX,SUP,SW,XL7198509-198703

main67001-95732iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198703

W/LARGE TYPE MIRROR

main67001-95733iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198703

main67001-95734iKM35198703-198808

main67001-95735iCM3#,4#,KM30,31,36,YM40..DLX,SUP,SW,XL7; CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198703-198808

W/LARGE TYPE MIRROR

main67001-95736iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198703-198808

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-95728iKM35198509-198703

main67002-95730iCM3#,4#,KM30,31,36,YM40..DLX,SUP,SW,XL7198509-198703

main67002-95733iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198703

W/LARGE TYPE MIRROR

main67002-95735iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198703

main67002-95736iKM35198703-198808

main67002-95738iCM3#,4#,KM30,31,36,YM40..DLX,SUP,SW,XL7; CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198703-198808

W/LARGE TYPE MIRROR

main67002-95740iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198703-198808

67111PANEL, FRONT DOOR, OUTER RH

main67111-95716iCM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7; CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

W/LARGE TYPE MIRROR

main67111-95717iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

67112PANEL, FRONT DOOR, OUTER LH

main67112-95712iCM3#,4#,KM3#,YM30,40198509-198808

67118RETAINER, OUTER MIRROR

main67118-95700iCM3#,4#,KM3#,YM30,40198509-198808

RH

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-95700iCM3#,4#,KM3#,YM30,40198509-198808

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-95700iCM3#,4#,KM3#,YM30,40198509-198808

67485CSEAL, FRONT DOOR BRACKET, NO.1

main67485-95J01×2iCM3#,4#,KM3#,YM30,40198509-198808

67485DSEAL, FRONT DOOR BRACKET, NO.2

main67485-95700×2iCM3#,4#,KM3#,YM30,40198509-198801

main67485-95701×2iCM3#,4#,KM3#,YM30,40198801-198808

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-95700iCM3#,4#,KM30,31,36,YM30,40198509-198808

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-95700iCM3#,4#,KM30,31,36,YM30,40198509-198808

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67772-95J01×2iCM3#,4#,KM30,31,36,YM30,40198509-198808

67625ABRACKET, FRONT DOOR TRIM, NO.1

main67625-95700×2iCM30,40,YM30,40..FXV,GXL198509-198808

67811PAD, FRONT DOOR SILENCER

main67811-95700×4iCM3#,4#,KM3#,YM30,40198509-198808

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-95703iCM3#,4#,KM3#,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7198509-198808

main67831-95704iCM30,40,YM30,40..FXV198509-198808

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-95703iCM3#,4#,KM3#,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7198509-198808

main67832-95700iCM30,40,YM30,40..FXV198509-198808

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-95703iCM30,40,KM30,YM30,40198509-198808

main67861-95705iCM35,36,41,KM31,35,36198509-198808

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-89103iCM3#,4#,KM3#,YM30,40198509-198511

LH

main67867-95700iCM3#,4#,KM3#,YM30,40198511-198808

RH

main67868-89101iCM3#,4#,KM3#,YM30,40198509-198511

RH

main67868-95700iCM3#,4#,KM3#,YM30,40198511-198808

LH

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-95703iCM30,40,KM30,YM30,40198509-198808

main67862-95705iCM35,36,41,KM31,35,36198509-198808

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-95700iCM3#,4#,KM3#,YM30,40198509-198808

67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-89103iCM3#,4#,KM3#,YM30,40198509-198511

LH

main67867-95700iCM3#,4#,KM3#,YM30,40198511-198808

RH

main67868-89101iCM3#,4#,KM3#,YM30,40198509-198511

RH

main67868-95700iCM3#,4#,KM3#,YM30,40198511-198808

LH

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-95700iCM3#,4#,KM3#,YM30,40198509-198808

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-95705iCM3#,4#,KM30,35,36,YM40..DLX,SW198509-198808

main68111-95706iCM30,40,KM30,31,36,YM30,40..GXL,SCA,SUC,SUP,XL7198509-198808

main68111-95707iCM30,40,YM30,40..FXV,GXL198509-198808

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-95705iCM3#,4#,KM30,35,36,YM40..DLX,SW198509-198808

main68112-95706iCM30,40,KM30,31,36,YM30,40..GXL,SCA,SUC,SUP,XL7198509-198808

main68112-95707iCM30,40,YM30,40..FXV,GXL198509-198808

68141ARUN, FRONT DOOR GLASS, UPPER

main68141-95706×2iCM3#,4#,KM3#,YM30,40198509-198808

68141BCLIP, DOOR GLASS RUN

main62367-10010×2iCM3#,4#,KM3#,YM30,40198509-198808

68143RUN, FRONT DOOR GLASS, LOWER

main68143-95704×2iCM3#,4#,KM3#,YM30,40198509-198808

L=394

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-95701×2iCM3#,4#,KM3#,YM30,40198509-198808

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-30080×14iCM3#,4#,KM3#,YM30,40198509-198808

68610CHECK ASSY, FRONT DOOR

main68610-95701×2iCM3#,4#,KM3#,YM30,40198509-198808

68610APIN(FOR FRONT DOOR CHECK)

main68617-90A00×2iCM3#,4#,KM3#,YM30,40198509-198808

9011906070

main90119-06070

9017906070

main90179-06070

9018906018

main90189-06018

9095006001

main90950-06001

9356016014

main93560-16014

36 parts on this diagram · 3 diagrams in section
