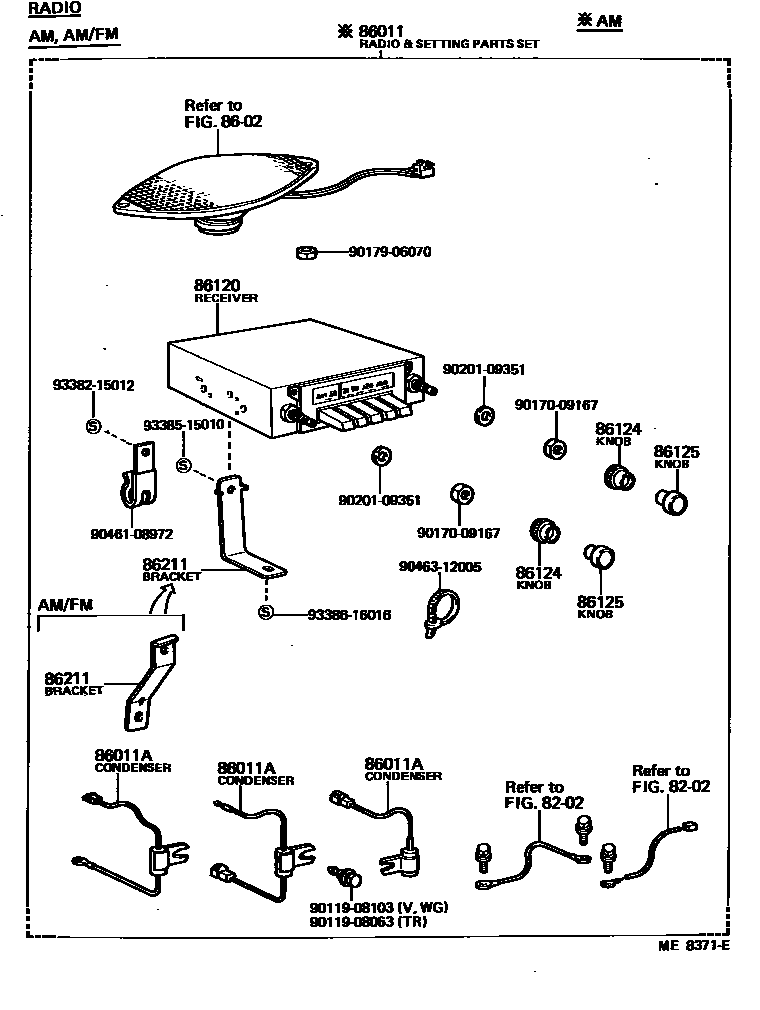

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0009 1 0011 1 0012 1 0013 1

8202WIRING & CLAMP

→ Go to FIG 82-02

86011RADIO & SETTING PARTS SET

main86011-29195iTM20..HRF..MTM..GXL198203-198210

AM,GXL SUPER

main86011-29245iTM20..FXV,GXL198101-198210

AM/FM MULTIPLEX

86011ACONDENSER, RADIO SETTING

main90980-04023iKM21..DLX198508

REGULATOR

main90980-04036iYM20,25198210

IGUNITER

main90980-04037iKM21..DLX,SUP198210

IGNITION COIL

main90980-04038iTM20..DLX,FXV,GXL,XL197910-198210

IGUNITER

main90980-04041iYM21..CS7,DLX,FXV,GXL,MTP,S,SW,XL198210-198508

IGUNITER

8602SPEAKER

→ Go to FIG 86-02

86120RECEIVER ASSY, RADIO

main86120-14420iCM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL198210-198406

AM

main86120-14421iCM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL198406

AM

main86120-19015iCM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL198210-198408

AM/FM MULTIPLEX

main86120-19016iCM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL198408-198508

main86120-95700iKM20,TM20..DLX,SUP,XL197910-198210

AM

main86120-95701iKM20..V4D..SUP..WT198011-198011

AM/FM

main86120-95702iTM20..FXV,GXL198101-198210

AM/FM MULTIPLEX

86124KNOB, RADIO RECEIVER CONTROL

main86124-12010iTM20..FXV,GXL198101-198210

MULTIPLEX-RH

main86124-14040iTM20..FXV,GXL198101-198210

MULTIPLEX-LH

main86124-14110iTM20..DLX,FXV,GXL,XL197910-198210

RH W/STEREO COMPONENT

main86124-14120iTM20..DLX,FXV,GXL,XL197910-198210

LH W/STEREO COMPONENT

86125KNOB, RADIO RECEIVER SWITCH

main86125-12011×2iKM20,TM20..DLX,FXV,GXL,SUP,XL197910-198210

86211BRACKET, RADIO, NO.1

main86211-95701iTM20..FXV,GXL198101-198210

AM/FM

main86211-95703iTM20..HRF..MTM..GXL198203-198210

AM,GXL-SUPER

main86211-95706iCM2#,KM21,YM2#198210

AM

9011908063

main90119-08063

9011908103

main90119-08103

9017009167

main90170-09167

9017906070

main90179-06070

9020109351

main90201-09351

9046108972

main90461-08972

9046312005

main90463-12005

9338215012

main93382-15012

9338515010

main93385-15010

9338616016

main93386-16016

18 parts on this diagram · 11 diagrams in section
