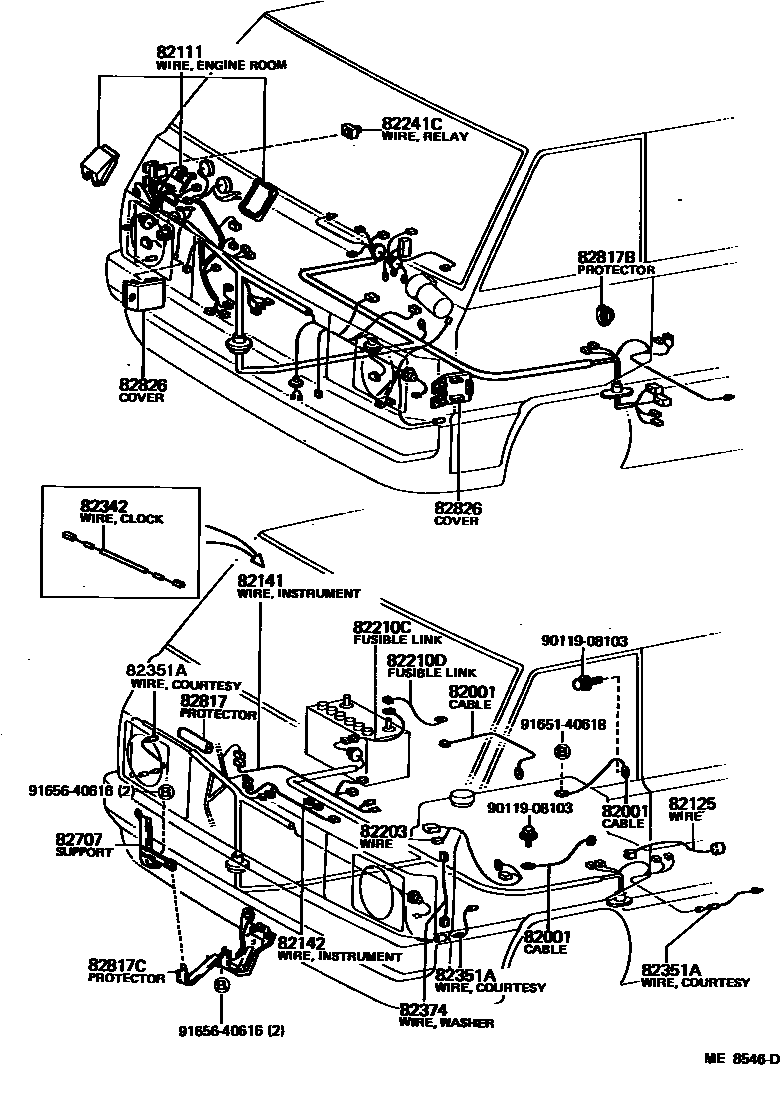

WIRING & CLAMP
82001CABLE, BOND, NO.1
L=280
L=260
L=380&80
L=500
L=380
L=100
L=130
L=140
L=320
L=400
L=540
L=230
L=300
L=500 & 100
L=110
L=260
L=150 & 380
82111WIRE, ENGINE ROOM MAIN
W/*RWD OR *RW
W/*RWD OR *RW
W/*BDEL, *PC OR *RW
W/*DS
W/*BDEL,*PC OR *RW
W/*DS
W/*BDEL,*PC,OR *RW
W/*BDEL,*PC OR *RW
NDK
COLD SPEC;W/*BDEL,*RWD,*IW OR *RW
W/*BDEL,*REH,*RWD OR *RW
W/*BDEL,*REH,*RWD OR *RW
W/*BDEL,*RWD,*IW OR *RW
W/*BDEL,*REH,*RWD OR *RW
SOUND WAGON
PIONEER AUDIO EVENT
W/*PC
W/*PC
W/*PC
W/*PC
82125WIRE, TRANSMISSION
82141WIRE, INSTRUMENT PANEL
W/*RWD OR *RW
W/*BDEL,*PC OR *RW; W/*RW & *REH
82142WIRE, INSTRUMENT PANEL, NO.2
82203WIRE SUB-ASSY, ALTERNATOR
TYPE A
TYPE A
TYPE B
TYPE B
TYPE C
TYPE C
82210CFUSIBLE LINK
0.5GREENX2 & 0.85RED
0.3PINK,0.5GREEN & 1.0YELLOW
0.5GREEN & 1.0YELLOW
82210DFUSIBLE LINK
0.5GREEN
1.0YELLOW & 0.5GREEN
1.25BLACK
82241CWIRE, RELAY
82342WIRE, CLOCK
82351AWIRE, COURTESY LAMP SWITCH (FOR FRONT OR REAR DOOR)
SLIDE DOOR
FR DOOR
82374WIRE, WASHER
82707SUPPORT SUB-ASSY, WIRING HARNESS
82817PROTECTOR, WIRING HARNESS, NO.1
82817BPROTECTOR, WIRING HARNESS, NO.3
82817CPROTECTOR, WIRING HARNESS, NO.4
82826COVER, WIRING HARNESS HOLE
W/*PW
9011908103
main90119-08103
9165140618
main91651-40618
9165640616
main91656-40616
20 parts on this diagram · 9 diagrams in section
