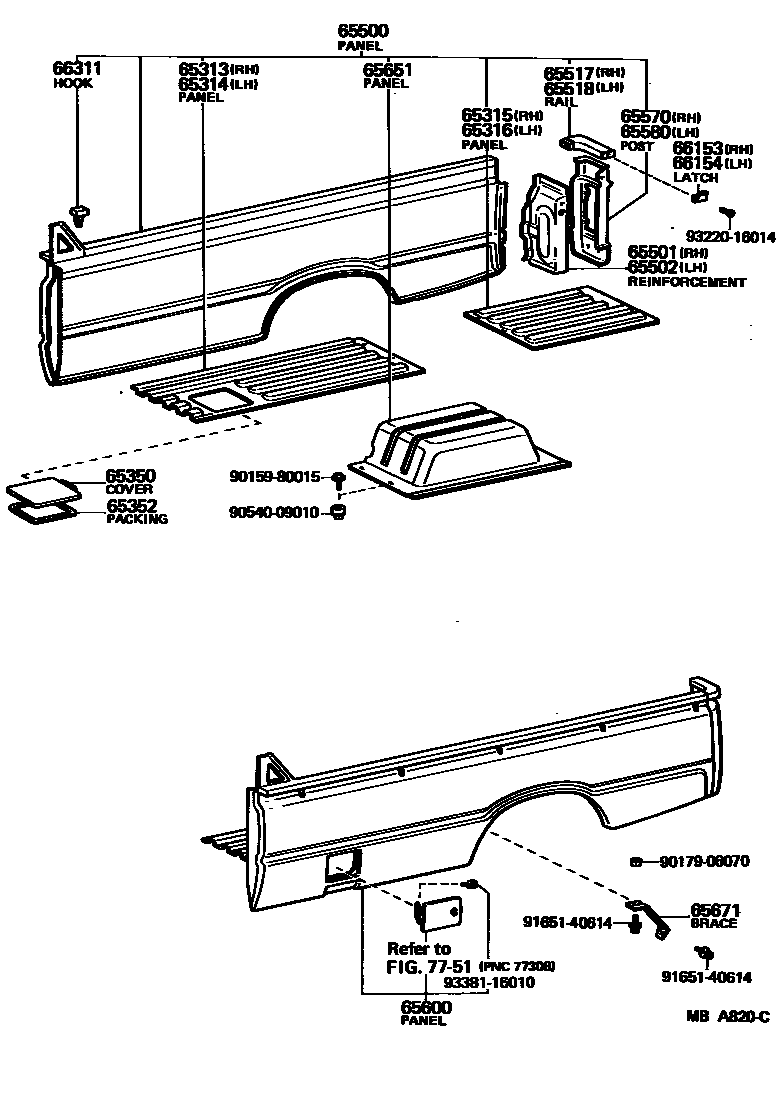

REAR BODY SIDE PANEL

0001 1 0002 1 0003 1 0004 1

65313PANEL, FLOOR FRONT CORNER, RH

main65313-87403iKM20..T1197910-198210

main65313-95700iKM21..T1198210-198609

65314PANEL, FLOOR FRONT CORNER, LH

main65314-87403iKM20..T1197910-198210

main65314-95700iKM21..T1198210-198609

65315PANEL, FLOOR REAR CORNER, RH

main65315-87402iKM20..T1197910-198210

main65315-95700iKM21..T1198210-198609

65316PANEL, FLOOR REAR CORNER, LH

main65316-87402iKM20..T1197910-198210

main65316-95700iKM21..T1198210-198609

65350COVER ASSY, BATTERY SERVICE HOLE

main65305-95010iKM2#..T1197910-198609

65352PACKING, BATTERY SERVICE HOLE COVER

main65307-95A00iKM21..T1198210-198212

main65352-87402iKM20..T1197910-198210

main65352-95A00iKM21..T1198212-198609

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-87406iKM20..T2,T3197910-198101

main65500-87407iKM20..T1197910-198210

main65500-87410iKM20..T2,T3198101-198210

main65500-95700iKM21..T1198210-198609

main65500-95701iKM21..T2,T3198210-198609

main65500-95702iCM25,26,YM25198210-198609

main65500-95703iCM20..TS198210-198609

65501REINFORCEMENT SUB-ASSY, REAR END POST, INNER RH

main65505-87403iKM2#..T1197910-198609

65502REINFORCEMENT SUB-ASSY, REAR END POST, INNER LH

main65506-87403iKM2#..T1197910-198609

65517RAIL, SIDE PANEL TOP, REAR RH

main65517-87401iKM2#..T1197910-198609

65518RAIL, SIDE PANEL TOP, REAR LH

main65518-87401iKM2#..T1197910-198609

65570POST ASSY, SIDE PANEL REAR END, RH

main65553-87401iKM2#..T1197910-198609

65580POST ASSY, SIDE PANEL REAR END, LH

main65554-87401iKM2#..T1197910-198609

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-87406iKM20..T2,T3197910-198101

main65600-87407iKM20..T1197910-198210

main65600-87410iKM20..T2,T3198101-198210

main65600-95700iKM21..T1198210-198609

main65600-95701iKM21..T2,T3198210-198609

main65600-95702iCM25,26,YM25198210-198609

main65600-95703iCM20..TS198210-198609

65651PANEL, WHEEL HOUSE

main65631-87403×2iKM2#..T1197910-198609

65671BRACE, SIDE PANEL SKIRT, FRONT

main65671-87402iKM2#..T1197910-198609

RH

main65672-87402iKM2#..T1197910-198609

LH

66153LATCH, TAIL GATE FEMALE, RH

main66153-87401iKM2#..T1197910-198609

66154LATCH, TAIL GATE FEMALE, LH

main66153-87401iKM2#..T1197910-198609

66311HOOK, ROPE

main66311-87401×10iCM2#,KM2#,YM25..TR197910-198609

main66311-95D00×6iCM25,26,KM21,YM25..TB198210-198609

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9015980015

main90159-80015

9017906070

main90179-06070

9054009010

main90540-09010

9165140614

main91651-40614

9322016014

main93220-16014

9338116010

main93381-16010

26 parts on this diagram · 4 diagrams in section
