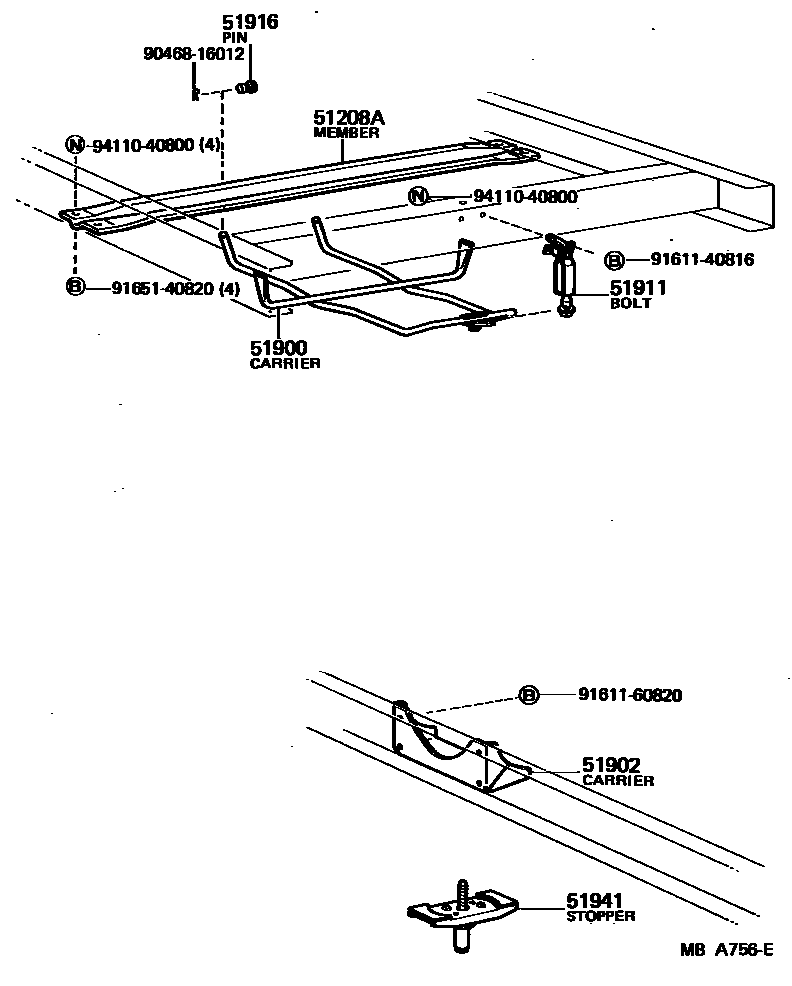

SPARE WHEEL CARRIER

0001 1 0002 1

51208AMEMBER SUB-ASSY, SPARE WHEEL SET

main51273-27010iCM2#,KM21,YM25..TR198210-198609

51900CARRIER ASSY, SPARE WHEEL

main51900-27020iKM20,TM20..(HRF,SRF)..ST197910-198108

main51900-27021iCM20,KM2#,TM20,YM20,21..(V,WG)..ST198108-198508

main51900-27030iCM2#,KM2#,YM25..TR197910-198609

main51900-27070iCM20,KM21,YM20,21..(V,WG)..ST198210-198405

W/165R13 TIRE OR 4.5J-13 WHEEL

main51903-27020iCM20,KM2#,YM20..HRF..WT197910-198508

51902CARRIER SUB-ASSY, SPARE WHEEL

main51903-27010iKM20..T2197910-198210

main51903-27011iCM2#,KM21,YM25..T2198210-198609

main51905-27010iCM20,KM2#,YM20..HRF..WT197910-198508

51911BOLT ASSY, SPARE WHEEL MOUNTING

main51910-27010iKM20..TR197910-198210

5.50-13-8P

main51910-27011iCM2#,KM21,YM25..TR198210-198609

main51910-27020iKM20..TR..ST197910-198001

165R-13-8P

51916PIN, SPARE TIRE CARRIER

main51916-27020×2iCM20,KM2#,TM20,YM20,21..(V,WG)..ST197910-198508

51941STOPPER, SPARE WHEEL CARRIER

main51904-27010iCM2#,KM2#,YM25..T2197910-198609

9046816012

main90468-16012

9161140816

main91611-40816

9161160820

main91611-60820

9165140820

main91651-40820

9411040800

main94110-40800

11 parts on this diagram · 2 diagrams in section
