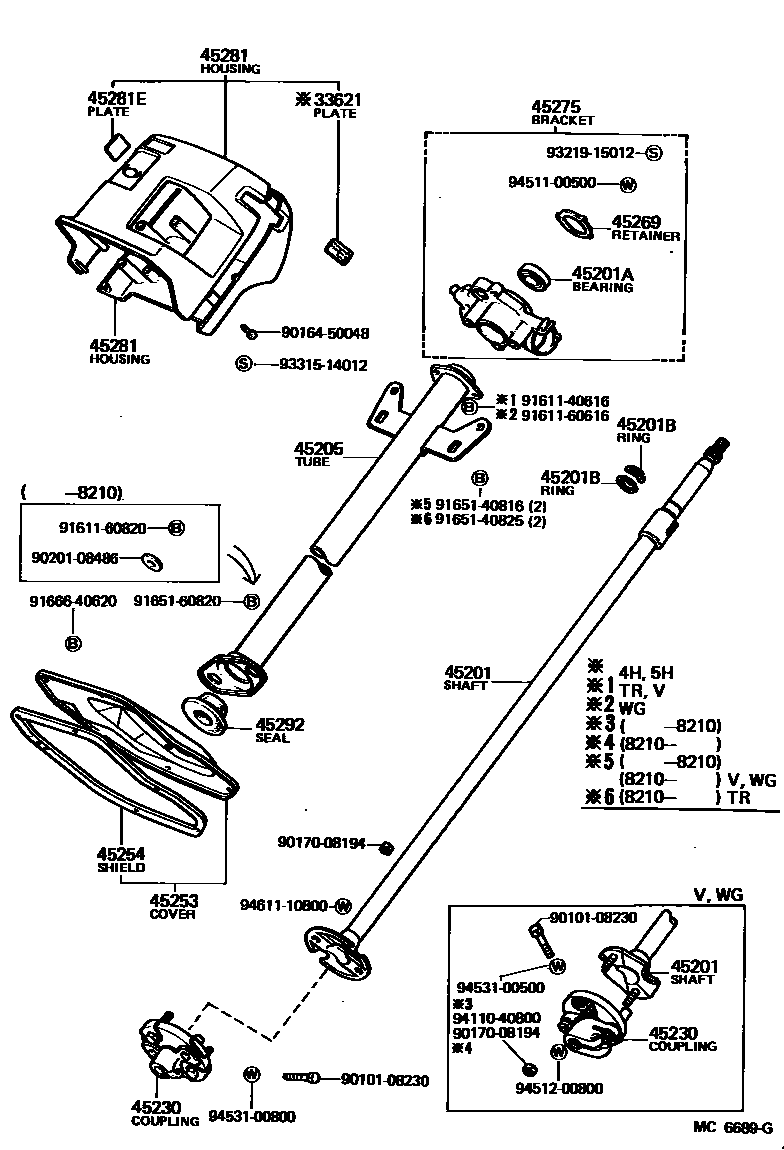

STEERING COLUMN & SHAFT

0001 1 0002 1

33621PLATE, CONTROL LEVER CAUTION

main33621-36020iCM2#,YM20,21..5H198210-198609

main33621-36040iKM2#,TM20,YM25..4H197910-198609

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-27070iKM20,TM20..DLX,GXL,STD,SUP,XL197911-198210

main45201-27071iCM2#,KM21,YM25..TR198210-198609

main45201-27080iKM20,TM20..HRF,SRF197910-197911

main45201-27110iYM25198210-198609

W/POWER STEERING

main45201-27120iCM20,KM21,YM20,21..(V,WG)..(03S,05S,06S,08S,09S)198210-198508

main45201-27130iCM20,YM20..V; CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL198210-198508

W/POWER STEERING

main45210-22050iCM20,YM21..FXV,GXL198210-198508

W/POWER STEERING&TILT STEERING

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iTM20..FXV198101-198210

UPR

main90363-18038iCM2#,KM21,YM2#..03S,05S,06S,08S,09S198210-198609

main90363-28001iCM20,YM21..FXV,GXL198210-198508

LWR,W/TILT STEERING

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iCM2#,KM2#,TM20,YM2#197910-198609

main90520-17269iCM2#,KM2#,TM20,YM2#..CS7,DLX,GXL,S,STD,SUP,SW,XL197910-198609

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-27030iKM20,TM20..DLX,GXL,STD,SUP,XL197910-198210

main45205-27031iCM2#,KM21,YM2#..03S,05S,06S,08S,09S198210-198609

main45205-27060iTM20..FXV198101-198210

main45205-27061iCM20,YM21..FXV,GXL198210-198508

W/TILT STEERING

45230COUPLING ASSY, FLEXIBLE

main45230-27010iKM20..TR197910-198104

main45230-35020iKM20,TM20..HRF,SRF197910-197911

main45230-36010iKM20,TM20..HRF,SRF197911-198104

45253COVER, STEERING COLUMN HOLE

main45253-27010iKM20,TM20..4H197910-198210

main45253-27011iCM2#,KM21,YM2#..4H,5H198210-198609

main45253-27030iTM20..3FC,4F,5F197910-198210

main45253-27031iCM20,YM20,21..3FC,5F198210-198508

45254SHIELD, STEERING COLUMN HOLE

main45254-27010iKM20,TM20197910-198210

main45254-27011iCM2#,KM21,YM2#198210-198609

45269RETAINER, MAIN SHAFT BEARING

main45269-35010iKM20,TM20197910-198101

main45269-36010iKM20198103-198210

45275BRACKET, STEERING COLUMN, UPPER

main45280-22210iTM20..FXV198101-198108

main45280-22211iCM20,YM21..FXV,GXL198210-198508

W/TILT STEERING

main45307-27020iTM20..DLX,GXL,STD,XL197910-198209

main45307-27021iCM20,TM20,YM21..WG..(CS7,DLX,GXL,MTP,S,STD,SW,XL)198209-198508

main45307-28010iKM20197910-198209

main45307-28011iCM2#,KM2#,YM20,25..TR,V198209-198609

45281HOUSING, STEERING COLUMN

main45286-27070iKM20,TM20..4H197910-198210

UPR

main45286-27070-05iKM21,YM25198210-198609

BEIGE,UPR,BEIGE

main45286-27090iTM20..4F197910-198101

UPR

main45286-27090-01iTM20..GXL,XL198101-198210

BLACK,UPR,BLACK

main45286-27090-03iYM21..S198302-198508

SHADOW GRAY,UPR,GRAY

main45286-27090-04iCM20,YM21..5F..(GXL,MTP,S,SW,XL); YM21..3FC198210-198508

BLUE GRAY,UPR,BLUE

main45286-27090-05iYM20..05S198210-198508

BEIGE,UPR,BEIGE

main45286-27090-06iTM20..GXL,XL198101-198210

BROWN,UPR,BROWN

main45286-27090-16iCM20,YM21..5F..(GXL,MTP,S,SW,XL); YM21..3FC198210-198508

BROWN,UPR,BROWN

main45286-27100-01iTM20..FXV198101-198206

BLACK,UPR,BLACK

main45286-27100-06iTM20..FXV198101-198206

BROWN,UPR,BROWN

main45286-27101-01iTM20..FXV198206-198210

BLACK,UPR,BLACK

main45286-27101-04iCM20,YM21..FXV,GXL198210-198508

BLUE GRAY,UPR,W/TILT STEERING,BLUE

main45286-27101-06iTM20..FXV198206-198210

BROWN,UPR,BROWN

main45286-27101-16iCM20,YM21..FXV,GXL198210-198508

BROWN,UPR,W/TILT STEERING,BROWN

main45286-27120-03iYM21..HRF..06S198402-198403

SUPER SW,SHADOW GRAY,UPR,SHADOW GRAY

main45286-27120-04iYM21..5H198210-198508

BLUE GRAY,UPR,BLUE

main45286-27120-05iCM2#,YM20..5H198210-198609

BEIGE,UPR,BEIGE

main45286-27120-16iYM21..5H198210-198508

BROWN,UPR,BROWN

main45287-27030iKM20,TM20..4H198101-198210

LWR

main45287-27030-01iTM20..GXL,XL198101-198210

BLACK,LWR,BLACK

main45287-27030-03iYM21..S198302-198508

SHADOW GRAY,LWR,GRAY

main45287-27030-04iCM20..5F; YM21..CS7,FXV,GXL,MTP,S,XL198210-198508

BLUE GRAY,LWR,BLUE

main45287-27030-05iCM2#,KM21,YM20,25..TR,V198210-198609

BEIGE,LWR,BEIGE

main45287-27030-06iTM20..GXL,XL198101-198210

BROWN,LWR,BROWN

main45287-27030-16iCM20,YM21..WG198210-198508

BROWN,LWR,BROWN

main45287-27050-01iTM20..FXV198101-198206

BLACK,LWR,BLACK

main45287-27050-06iTM20..FXV198101-198206

BROWN,LWR,BROWN

main45287-27051-04iCM20,YM21..FXV,GXL198210-198508

BLUE GRAY,LWR,W/TILT STEERING,BLUE

main45287-27051-16iCM20,YM21..FXV,GXL198210-198508

BROWN,LWR,W/TILT STEERING,BROWN

45281EPLATE, SAFETY CAUTION

main45283-22010iCM2#,KM2#,TM20,YM2#197910-198609

45292SEAL, MAIN SHAFT LOWER DUST

main45292-35021iCM2#,KM21,YM2#198210-198609

main45292-36010iKM20,TM20197910-198210

9010108230

main90101-08230

9016450048

main90164-50048

9017008194

main90170-08194

9020108486

main90201-08486

9161140616

main91611-40616

9161160616

main91611-60616

9161160820

main91611-60820

9165140816

main91651-40816

9165140825

main91651-40825

9165160820

main91651-60820

9166640620

main91666-40620

9321915012

main93219-15012

9331514012

main93315-14012

9411040800

main94110-40800

9451100500

main94511-00500

9451200800

main94512-00800

9453100500

main94531-00500

9453100800

main94531-00800

9461110800

main94611-10800

32 parts on this diagram · 2 diagrams in section
