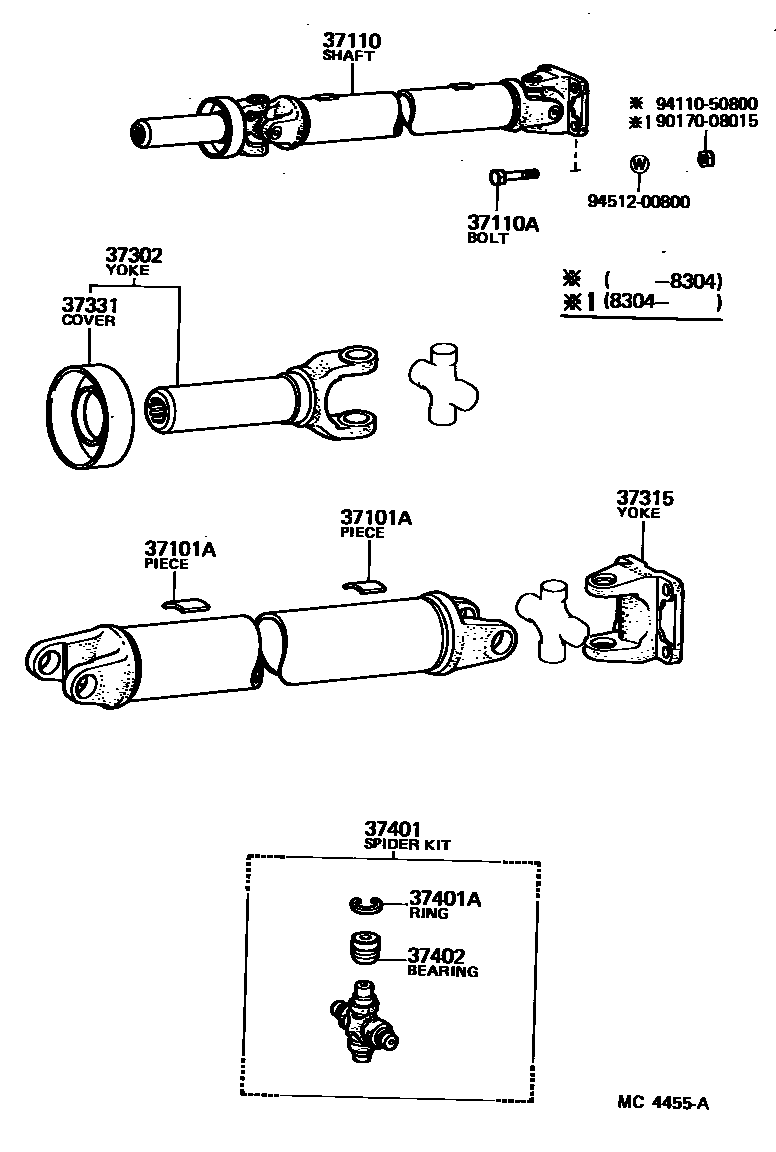

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132×2iCM2#,KM2#,TM20,YM2#197910-198609

main90937-01136×2iCM2#,KM2#,TM20,YM2#197910-198609

main90937-01140×2iCM2#,KM2#,TM20,YM2#197910-198609

main90937-01147×2iCM2#,KM2#,TM20,YM2#197910-198609

main90937-01148×2iCM2#,KM2#,TM20,YM2#197910-198609

main90937-01149×2iCM2#,KM2#,TM20,YM2#197910-198609

main90937-01150×2iCM2#,KM2#,TM20,YM2#197910-198609

main90937-01151×2iCM2#,KM2#,TM20,YM2#197910-198609

main90937-01152×2iCM2#,KM2#,TM20,YM2#197910-198609

main90937-01153×2iCM2#,KM2#,TM20,YM2#197910-198609

main90937-01154×2iCM2#,KM2#,TM20,YM2#197910-198609

main90937-01155×2iCM2#,KM2#,TM20,YM2#197910-198609

main90937-01156×2iCM2#,KM2#,TM20,YM2#197910-198609

main90937-01157×2iCM2#,KM2#,TM20,YM2#197910-198609

main90937-01158×2iCM2#,KM2#,TM20,YM2#197910-198609

37110SHAFT ASSY, PROPELLER

main37110-27040iKM2#197910-198508

main37110-27060iTM20..4F,4H197910-198210

main37110-27070iTM20,YM20,21..3FC198101-198508

main37110-27090iYM25198210-198508

main37110-27110iCM20198210-198508

main37110-27120iCM25198210-198508

main37110-27150iCM20198508-198609

main37110-27230iKM21198508-198609

main37110-27240iYM25198508-198609

main37110-27250iCM26198508-198609

main37110-28070iTM20,YM20,21..5F,5H198101-198508

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08082×4iCM2#,KM21,YM2#198304-198609

main90101-08214×4iCM2#,KM2#,TM20,YM2#197910-198304

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-20040iCM2#,KM2#,TM20,YM2#197910-198508

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-20020iCM2#,KM2#,TM20,YM2#197910-198508

37331COVER, SLIDING SHAFT DUST

main37331-30010iCM2#,KM2#,TM20,YM2#197910-198609

37401SPIDER KIT, UNIVERSAL JOINT

main04371-22010×2iCM2#,KM2#,TM20,YM2#197910-198508

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90521-29070×8iCM2#,KM2#,TM20,YM2#197910-198508

main90521-29071×8iCM2#,KM2#,TM20,YM2#197910-198508

main90521-29072×8iCM2#,KM2#,TM20,YM2#197910-198508

main90521-29073×8iCM2#,KM2#,TM20,YM2#197910-198508

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-22020×8iCM2#,KM2#,TM20,YM2#197910-198508

9017008015

main90170-08015

9411050800

main94110-50800

9451200800

main94512-00800

12 parts on this diagram · 2 diagrams in section
