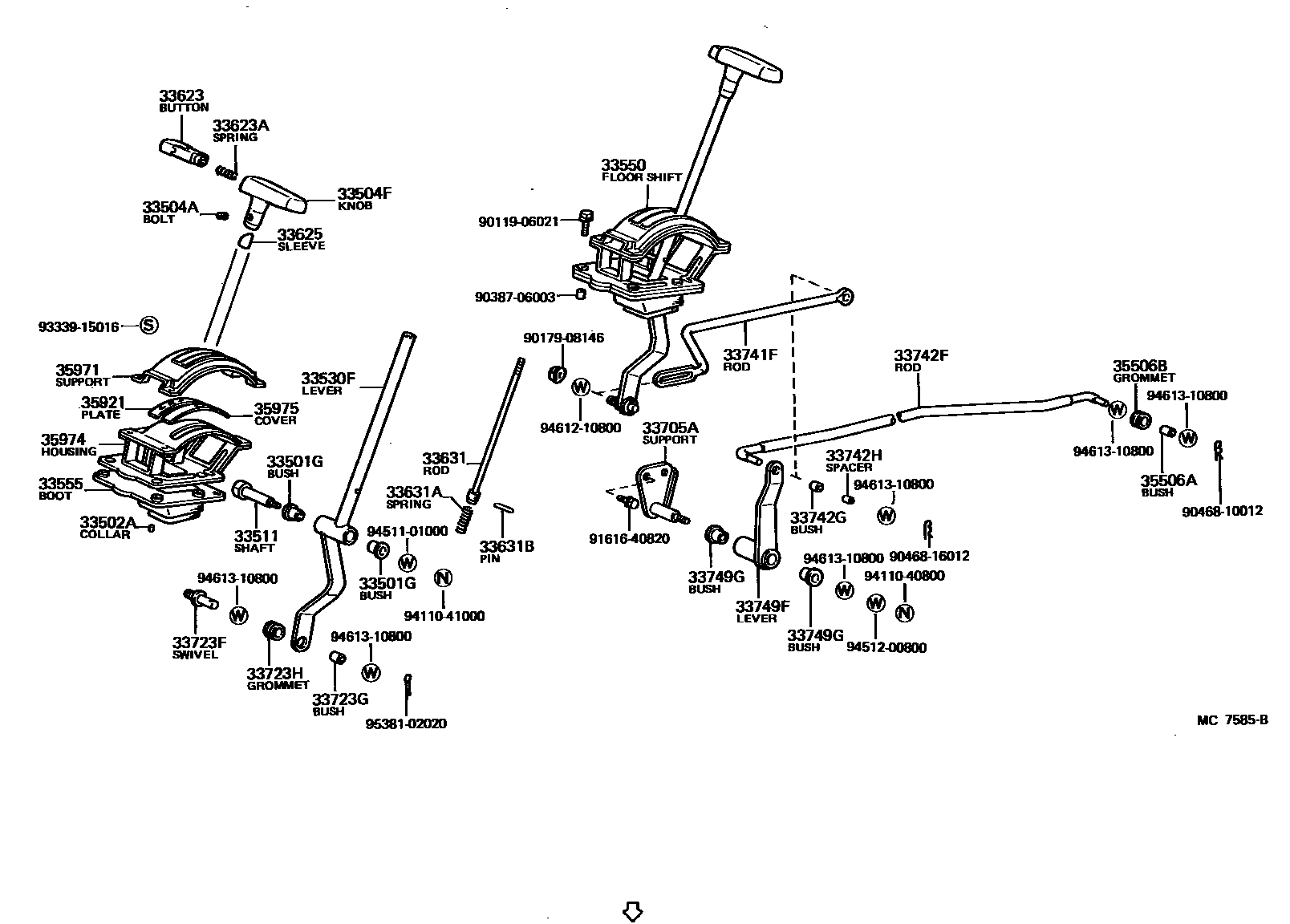

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90386-14001×2iTM20,YM20,21..3FC198101-198508

33502ACOLLAR (FOR FLOOR SHIFT SETTING)

main90387-06065×4iTM20,YM20,21..3FC198101-198508

33504ABOLT OR PIN (FOR SHIFT LEVER KNOB SETTING)

main90113-05034×2iTM20..3FC198101-198210

main90149-40004×2iYM20,21..3FC198210-198508

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-20052iTM20..5F..(FXV,GXL)198101-198210

URETHANE

main33504-20052-13iYM21..S198302-198508

SHADOW GRAY,GRAY

main33504-20052-16iTM20..5F..(FXV,GXL)198101-198210

BROWN,BROWN

main33504-20052-24iCM20,YM21..5F..(FXV,GXL,S)198210-198508

URETHANE,BLUE GRAY,BLUE

main33504-20052-36iCM20,YM21..5F..(FXV,GXL,S)198210-198508

URETHANE,BROWN,BROWN

main33504-20062iTM20..4F..GXL197910-198210

main33504-20062-06iTM20..4F..GXL197910-198210

BROWN,BROWN

main33504-22062iTM20..5F..FXV198101-198201

LEATHER

main33504-22062-14iYM21..5F..(FXV,S)198210-198508

LEATHER,BLUE GRAY,BLUE

main33504-22062-36iYM21..5F..(FXV,S)198210-198508

LEATHER,BROWN,BROWN

main33504-22100iTM20..4F..(DLX,XL)197910-198010

main33504-22101-01iTM20..4F..XL198101-198210

BLACK,BLACK

main33504-22101-06iTM20..4F..XL198101-198210

BROWN,BROWN

main33504-22111-01iTM20..5F..XL198101-198210

BLACK,BLACK

main33504-22111-06iTM20..5F..XL198101-198210

BROWN,BROWN

main33504-22111-24iCM20..XL; YM21..5F..(CS7,MTP)198210-198508

BLUE GRAY,BLUE

main33504-22111-26iCM20..SW,XL; YM21..5F..(CS7,MTP)198210-198508

BROWN,BROWN

main33542-16010-04iYM21..3FC198210-198508

BLUE GRAY,BLUE

main33542-16010-05iYM20..05S198210-198508

BEIGE,BEIGE

main33542-16010-16iYM21..3FC198210-198508

BROWN,BROWN

main33542-30110-01iTM20..3FC198101-198210

BLACK,BLACK

main33542-30110-26iTM20..3FC198101-198210

BROWN,BROWN

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

main33511-22100iTM20,YM20,21..3FC198101-198508

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33503-27040iTM20..3FC198101-198210

main33503-27041iYM20,21..3FC198210-198508

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-27010-01iTM20..3FC198101-198210

BRACK,BLACK

main33550-27010-06iTM20..3FC198101-198210

BROWN,BROWN

main33550-27011-04iYM21..3FC198210-198508

BLUE GRAY,BLUE

main33550-27011-05iYM20..05S198210-198508

BEIGE,BEIGE

main33550-27011-06iYM21..3FC198210-198508

BROWN,BROWN

33555BOOT, SHIFT LEVER

main33555-14030iYM20,21..3FC198210-198508

main33555-22030iTM20..3FC198101-198210

main33555-27010iTM20..4F197910-198009

main33555-27011iTM20..4F,5F198009-198210

main33555-35030×2iCM20,YM21..5F198210-198508

33623BUTTON, SHIFT LEVER KNOB

main33623-12040-15iYM20..05S198210-198508

BEIGE,BEIGE

main33623-12040-24iYM21..3FC198210-198508

BLUE GRAY,BLUE

main33623-12040-36iYM21..3FC198210-198508

BROWN,BROWN

main33623-22060iTM20..3FC198101-198210

main33623-30040-26iTM20..3FC198101-198210

BROWN,BROWN

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-08017iYM20,21..3FC198210-198508

main90501-09009iTM20..3FC198101-198210

33625SLEEVE, SHIFT LEVER KNOB

main33625-22020iTM20,YM20,21..3FC198101-198508

33631ROD, DETENT

main33631-27010iTM20,YM20,21..3FC198101-198508

33631ASPRING, COMPRESSION (FOR DETENT ROD)

main90501-08017iTM20..3FC198101-198210

main90501-09009iYM20,21..3FC198210-198508

33631BPIN, SLOTTED SPRING (FOR DETENT ROD)

main90254-04017iTM20,YM20,21..3FC198101-198508

33705ASUPPORT SUB-ASSY, CROSS SHAFT

main33705-27010iTM20..3FC198101-198210

main33705-27012iYM20,21..3FC198210-198508

33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)

main33723-10020×3iCM20,TM20,YM21..4F,5F197910-198508

main33723-22010iTM20,YM20,21..3FC198101-198508

33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90389-08005iYM20,21..3FC198210-198508

main90999-99017iTM20..3FC198101-198210

33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)

main90480-17177iTM20,YM20,21..3FC198101-198508

33741FROD, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33710-27040iTM20..4F,5F197910-198201

main33710-27041iTM20..4F,5F198201-198210

main33741-27040iTM20..3FC198101-198210

main33741-27041iYM20,21..3FC198210-198508

main33741-27050iCM20,YM21..5F198210-198508

33742FROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT)

main33730-27010iTM20..4F197910-198210

main33730-27020iTM20..5F198101-198210

main33730-27040iCM20,YM21..5F198210-198508

main33742-27060iTM20..3FC198101-198210

main33742-27061iYM20,21..3FC198210-198508

33742GBUSH(FOR SHIFTING, NO.2 ROD)

main90385-10063iTM20,YM20,21..3FC198101-198508

main90389-08005iCM20,TM20,YM21..4F,5F197910-198508

33742HSPACER(FOR SHIFTING, NO.2 ROD)

main90560-08366iTM20,YM20,21..3FC198101-198508

33749FLEVER, GEAR SHIFT, NO.3 (FOR FLOOR SHIFT)

main33749-27020iTM20..4F,5F197910-198201

main33749-27021iTM20..4F,5F198201-198210

main33749-27040iTM20..3FC198101-198210

main33749-27041iYM20,21..3FC198210-198508

main33749-27050iCM20,YM21..5F198210-198508

33749GBUSH (FOR FLOOR SHIFT GEAR SHIFTING LEVER)

main90386-15110×2iCM20,TM20,YM20,21..3FC,4F,5F197910-198508

35506ABUSH (FOR MANUAL VALVE LEVER SHAFT)

main90389-08005iTM20,YM20,21..3FC198101-198508

35506BGROMMET (FOR MANUAL VALVE LEVER SHAFT)

main90480-17177iTM20,YM20,21..3FC198101-198508

35921PLATE, CONTROL POSITION INDICATOR

main35921-22081iTM20,YM20,21..3FC198101-198508

35971SUPPORT, POSITION INDICATOR

main35971-22040iTM20,YM20,21..3FC198101-198508

35974HOUSING, POSITION INDICATOR, LOWER

main35974-22020iTM20,YM20,21..3FC198101-198508

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-22030iTM20,YM20,21..3FC198101-198508

9011906021

main90119-06021

9017908146

main90179-08146

9038706003

main90387-06003

9046810012

main90468-10012

9046816012

main90468-16012

9161640820

main91616-40820

9333915016

main93339-15016

9411040800

main94110-40800

9411041000

main94110-41000

9451101000

main94511-01000

9451200800

main94512-00800

9461210800

main94612-10800

9461310800

main94613-10800

9538102020

main95381-02020

44 parts on this diagram · 9 diagrams in section
