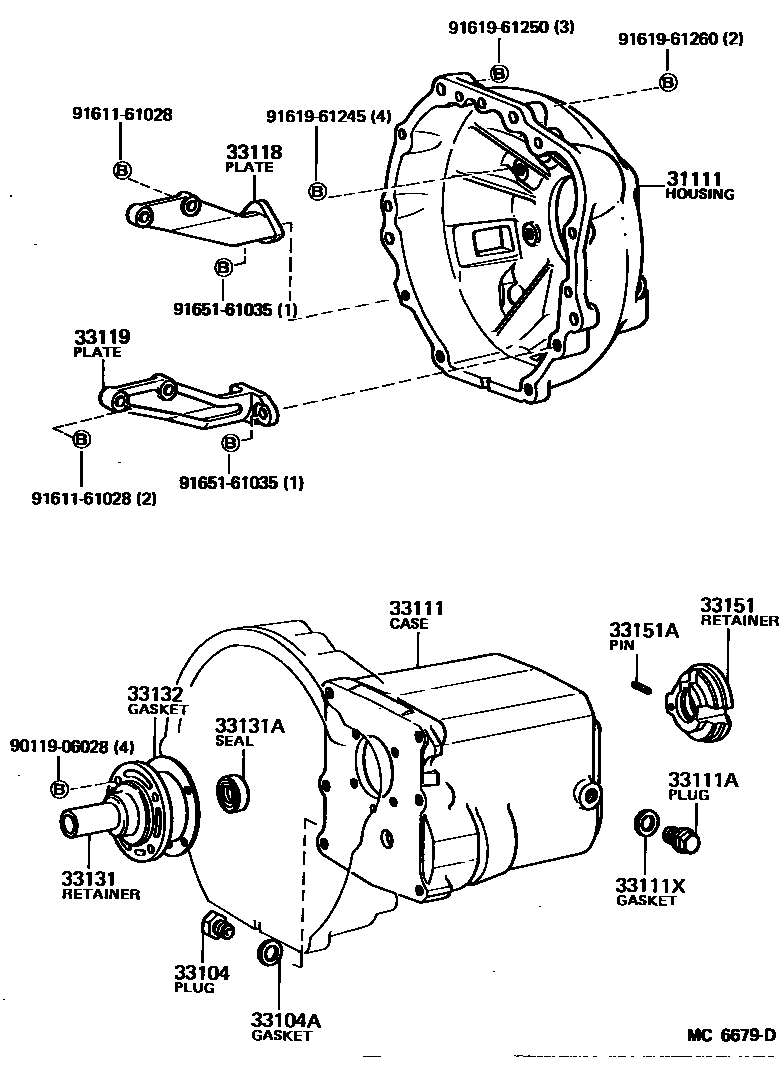

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

31111HOUSING, CLUTCH

main31111-20060iTM20197910-198007

main31111-20100iTM20197910-198007

REDUCTION STARTER

main31111-20190iTM20..4F,4H198007-198210

main31111-22120iCM2#198210-198609

main31111-27020iKM2#197910-198609

main31111-28010iYM25198210-198609

main31111-30180iYM20,21..MTM198210-198508

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18021iCM2#,YM20,21..MTM198312-198609

main90341-18057iCM2#,KM2#,TM20,YM2#..MTM197910-198312

33104AGASKET, DRAIN PLUG(MTM)

main12157-10010iKM20,TM20..MTM197910-198109

main90430-18007iCM2#,KM2#,TM20,YM2#..MTM198109-198410

main90430-18008iCM2#,KM21,YM2#..MTM198410-198609

33111CASE, MANUAL TRANSMISSION

main33101-28010iCM2#,YM20,21..MTM198210-198609

main33111-28010iTM20..5F198101-198210

main33111-35031iKM2#,TM20,YM25..4F,4H197910-198609

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iKM2#,TM20,YM25..MTM197910-198212

main90341-18006iKM21,YM25198212-198609

33111XGASKET, TRANSMISSION CASE PLUG

main12157-10010iKM20,TM20..MTM197910-198109

main90430-18007iCM2#,KM2#,TM20,YM2#..MTM198109-198410

main90430-18008iCM2#,KM21,YM2#..MTM198410-198609

33118PLATE, STIFFENER, RH(MTM)

main33118-10010iKM21..DLX,SUP198210-198609

W/COOLER

main33118-12020iTM20..MTM197910-198210

main33118-12050iKM20197910-198210

main33118-14030iCM2#198210-198410

main33118-14031iCM2#198410-198508

main33118-14032iCM2#198508-198609

main33118-28010iYM2#..MTM198210-198609

33119PLATE, STIFFENER, LH(MTM)

main33119-12011iTM20..MTM197910-198210

main33119-14050iCM2#198210-198609

main33119-28010iYM2#..MTM198210-198609

33131RETAINER, BEARING, FRONT(MTM)

main33131-20050iKM2#,TM20,YM25..4F,4H197910-198609

main33131-26020iCM2#,YM20,21..MTM198401-198609

main33131-28010iCM2#,YM20,21..MTM198210-198401

main33131-35021iTM20..5F198101-198210

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30115iCM2#,TM20,YM20,21..5F,5H198101-198609

main90311-32106iKM2#,TM20,YM25..4F,4H197910-198609

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iCM2#,YM20,21..MTM198210-198609

main33132-30030iKM2#,TM20,YM25..4F,4H197910-198609

main33132-35021iTM20..5F198101-198210

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-26010iKM2#,TM20,YM25..4F,4H197910-198609

main33151-28010iCM2#,YM20,21..MTM198210-198609

main33151-35011iTM20..5F198101-198210

33151APIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAINER)

main90254-05005iKM2#,TM20,YM25..4F,4H197910-198609

9011906028

main90119-06028

9161161028

main91611-61028

9161961245

main91619-61245

9161961250

main91619-61250

9161961260

main91619-61260

9165161035

main91651-61035

19 parts on this diagram · 6 diagrams in section
