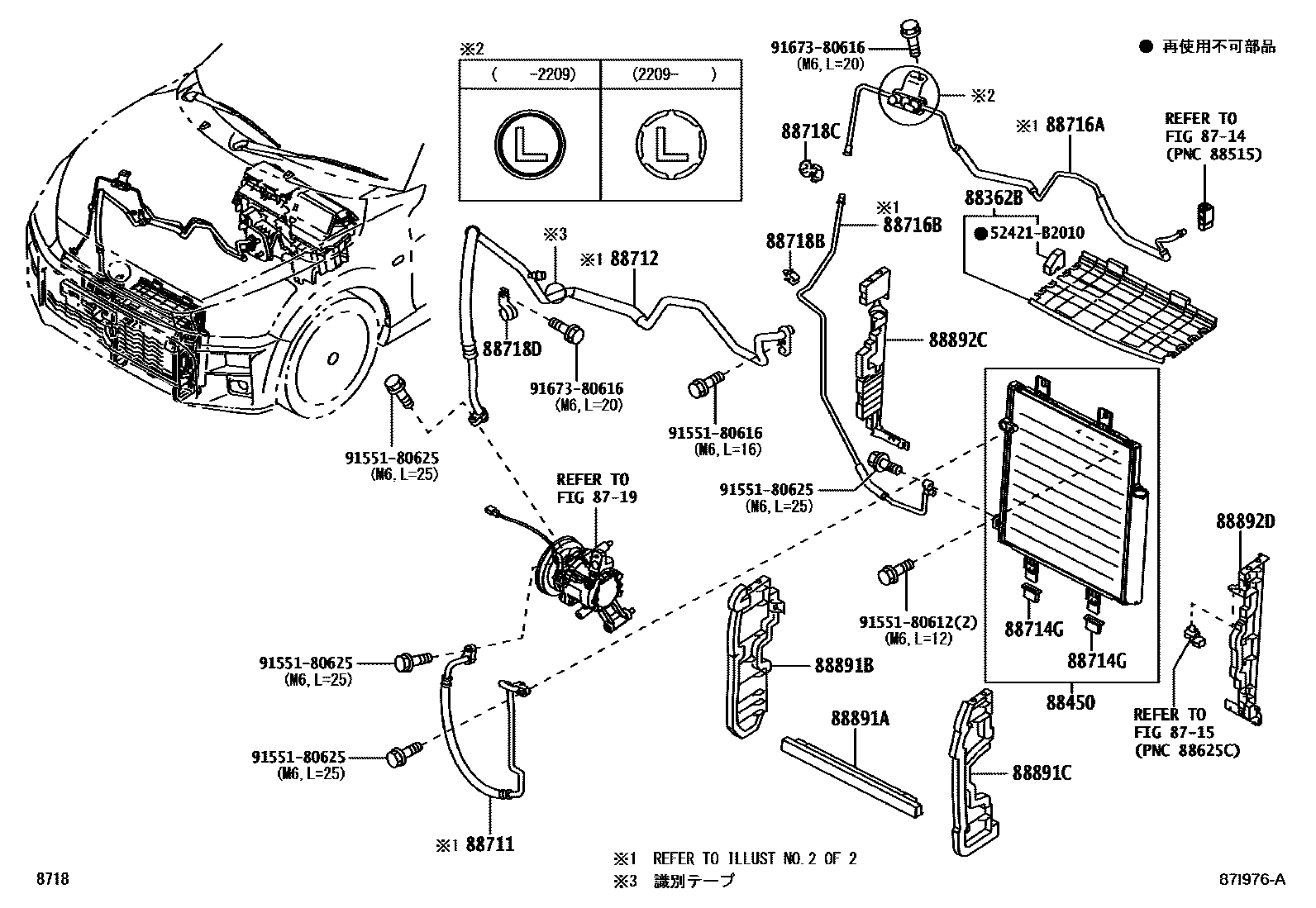

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88362BPLATE, SEAL

main88362-B2570iLA400201910

88450CONDENSER ASSY, W/RECEIVER

main88450-B2140iLA400201910

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-B2250iLA400201910

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-B2450iLA400201910-202209

main88712-B2451iLA400202209

88714GINSULATOR, COOLER REFRIGERANT PIPE, NO.1

main88714-B2010×2iLA400201910

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-B2450iLA400201910-202209

main88716-B2451iLA400202209

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-B2560iLA400201910

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-50330iLA400201910

88718CCLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)

main88718-87125iLA400201910

88718DCLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)

main88718-B2190iLA400201910

88891APACKING A (FOR COOLER)

main88362-B2580iLA400201910

88891BPACKING B (FOR COOLER)

main88362-B2630iLA400201910

88891CPACKING C (FOR COOLER)

main88362-B2640iLA400201910

88892CPLATE, CONDENSER, NO.1

main88362-B2590iLA400201910

88892DPLATE, CONDENSER, NO.2

main88362-B2600iLA400201910

52421B2010FILLER, FRONT BUMPER MOULDING, RH

main52421-B2010

9155180612

main91551-80612

9155180616

main91551-80616

9155180625

main91551-80625

9167380616

main91673-80616

23 parts on this diagram · 2 diagrams in section
