Toyota 652150 — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

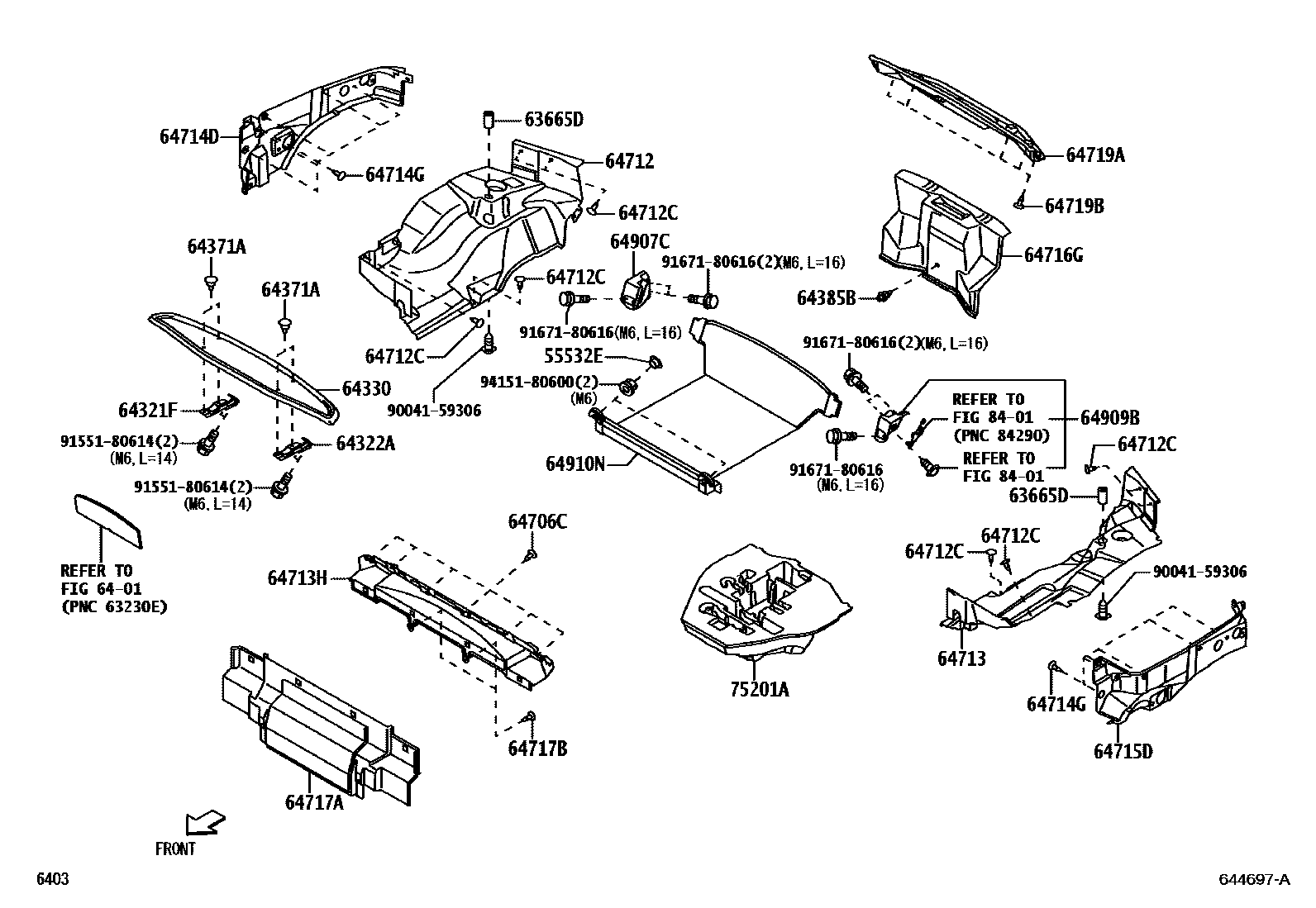

Parts diagram
55532ECOVER, CIGAR LIGHTER HOLE
63665DCUSHION, REMOVABLE ROOF STAY
6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
→ Go to FIG 64-01
64321FBRACKET, PACKAGE TRAY TRIM, RH
64322ABRACKET, PACKAGE TRAY TRIM, LH
64330PANEL ASSY, PACKAGE TRAY TRIM
64330-B2140
64371ACLIP(FOR PACKAGE TRAY TRIM)
64385BCLIP
64706CCLIP
64712COVER, LUGGAGE COMPARTMENT TRIM, RH
64712-B2010
90044-67579
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
64713COVER, LUGGAGE COMPARTMENT TRIM, LH
64713-B2010
64712-B2020
64713HCOVER, LUGGAGE COMPARTMENT UPPER, RH
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
64719ACOVER, LUGGAGE COMPARTMENT DOOR
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64907CSTOPPER SUB-ASSY, TONNEAU COVER, RH
64909BSTOPPER SUB-ASSY, TONNEAU COVER, LH
64910NCOVER ASSY, TONNEAU
75201ABOX, TOOL
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
9004159306
90041-59306
9155180614
91551-80614
9167180616
91671-80616
9415180600
94151-80600

30 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota 652150

This section contains 30 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota 652150. Key components include: COVER, CIGAR LIGHTER HOLE, CUSHION, REMOVABLE ROOF STAY, INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING, BRACKET, PACKAGE TRAY TRIM, RH, BRACKET, PACKAGE TRAY TRIM, LH.
