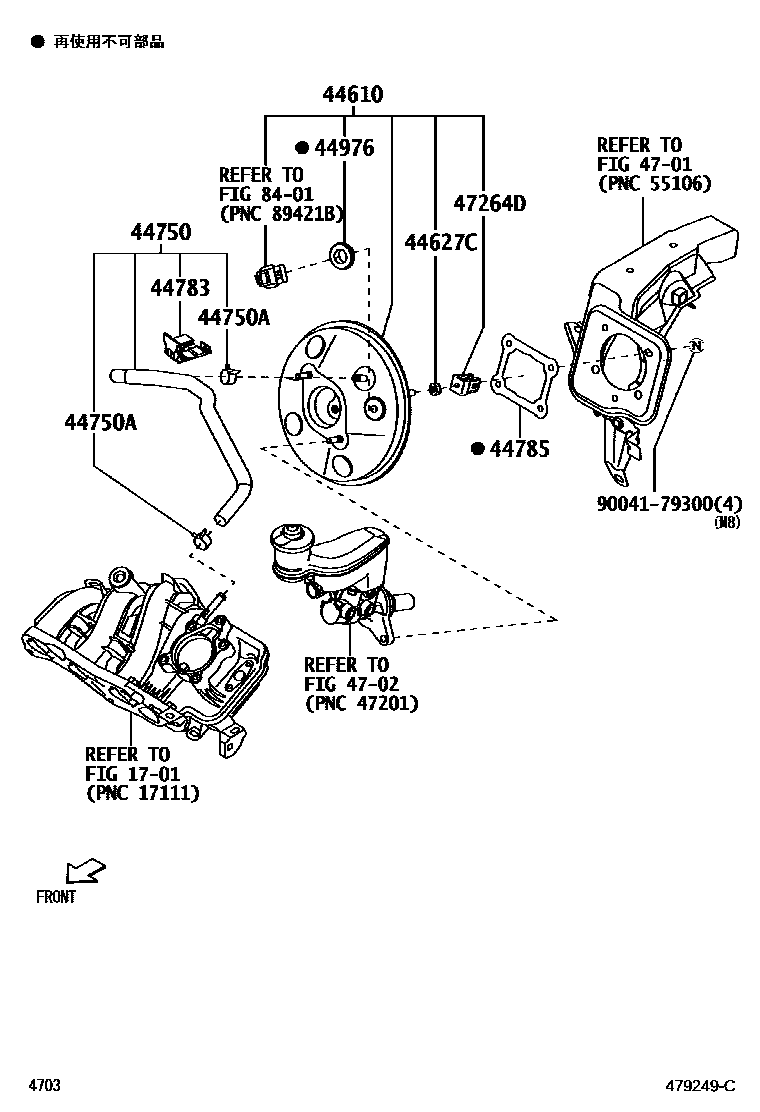

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-B2650iLA400..CVT201910-202004

main44610-B2651iLA400..CVT202005

main44610-B2660iLA400..5FC201910-202004

main44610-B2661iLA400..5FC202005

44627CNUT, BOOSTER SLEEVE CYLINDER

main94120-40800iLA400201910

44750HOSE ASSY, VACUUM

main44750-B2240iLA400201910

44750ACLIP(FOR VACUUM HOSE ASSY)

main90044-67161×2iLA400201910

44783CLAMP, VACUUM HOSE

main44783-B2010iLA400201910

44785GASKET, BRAKE BOOSTER

main47278-87703iLA400201910

44976SEAL, BOOSTER

main44685-B2010iLA400201910

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-B2020iLA400201910

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004179300

main90041-79300

13 parts on this diagram · 1 diagram in section
