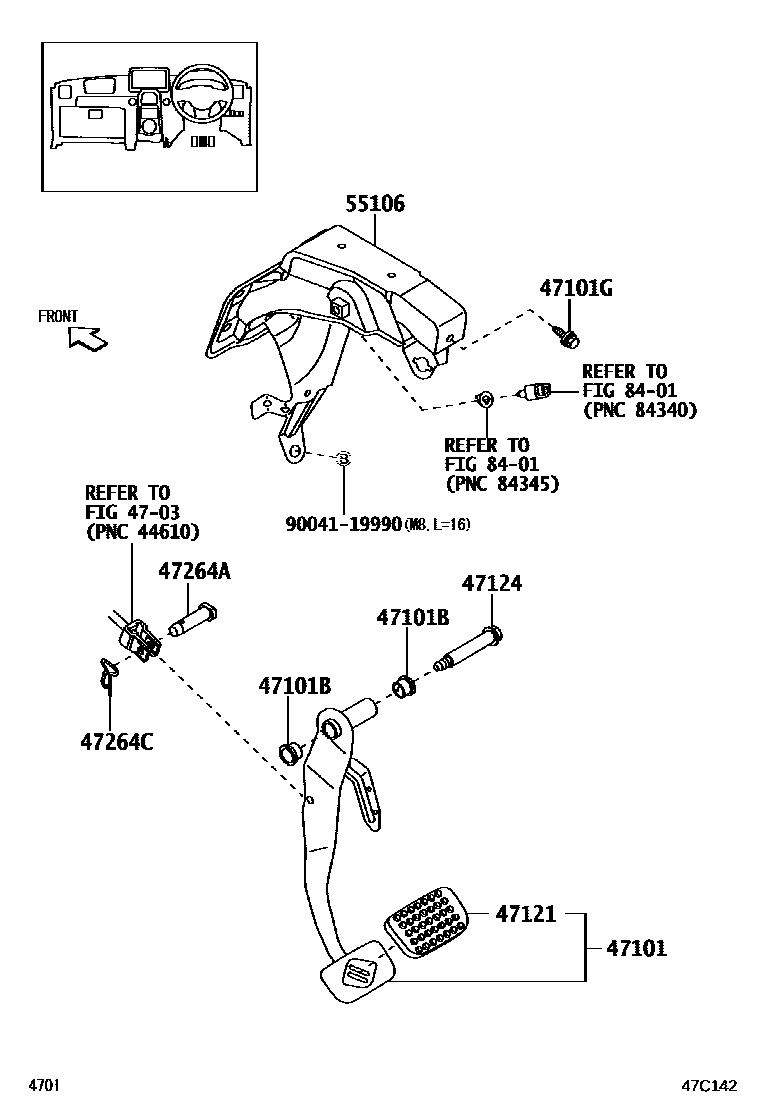

BRAKE PEDAL & BRACKET

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47101PEDAL SUB-ASSY, BRAKE

main47110-B2320iLA400..CVT201910

main47110-B2330iLA400..5FC201910

47101BBUSH(FOR BRAKE PEDAL)

main90043-86121×2iLA400201910

47101GBOLT, BRAKE PEDAL STOP, NO.1

main45898-B2010iLA400201910

47121PAD, BRAKE PEDAL

main31321-87204iLA400..5FC201910

main47121-87202iLA400..CVT201910

47124SHAFT, BRAKE PEDAL

main31324-B2010iLA400201910

47264APIN(FOR PUSH ROD)

main90042-40151iLA400201910

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90044-68076iLA400201910

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-B2330iLA400201910

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004119990

main90041-19990

11 parts on this diagram · 1 diagram in section
