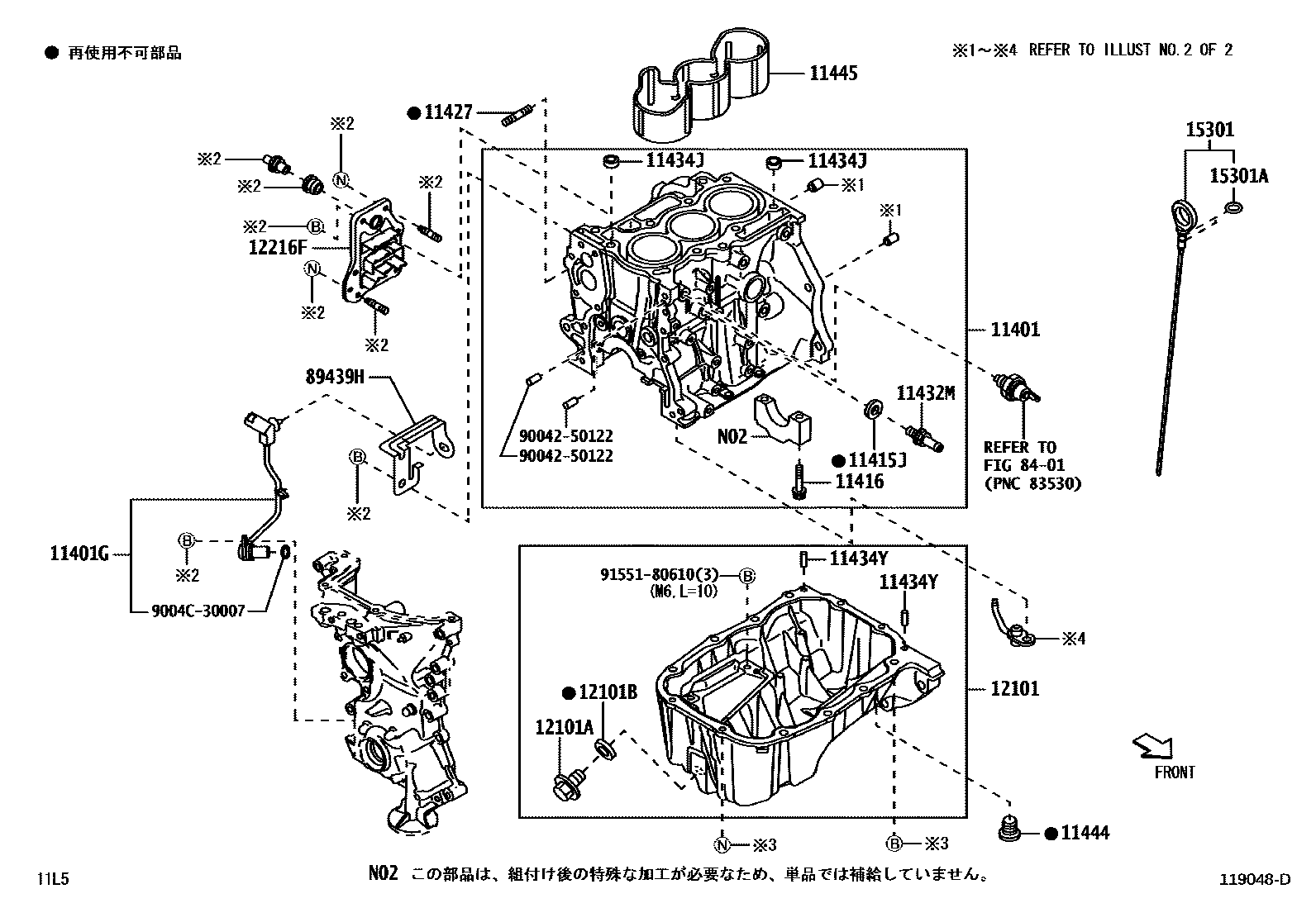

CYLINDER BLOCK

0001 1���������� 0002 1��������

11401BLOCK SUB-ASSY, CYLINDER

main11401-B2143iKFVET..LA400201910

11401GSENSOR, CRANK POSITION

main19311-B2030iKFVET..LA400201910

11415JGASKET(FOR DRAIN COCK)

main90044-30279iKFVET..LA400201910

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90041-05368×8iKFVET..LA400201910

11427BOLT, STUD(FOR TIMING CHAIN COVER SET)

main90041-16498iKFVET..LA400201910

11432MUNION(FOR CYLINDER BLOCK)

main90044-04158iKFVET..LA400201910

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90042-53013×2iKFVET..LA400201910

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-06003×2iKFVET..LA400201910

11444PLUG, HOLE

main11444-B2010×2iKFVET..LA400..CVT201910

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-B2030iKFVET..LA400201910

12101PAN SUB-ASSY, OIL

main12101-B2025iKFVET..LA400201910

12101APLUG(FOR OIL PAN DRAIN)

main90043-41087iKFVET..LA400201910

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90044-30281iKFVET..LA400201910

12216FPLATE, VENTILATION BAFFLE

main12216-B2021iKFVET..LA400201910

15301GAGE SUB-ASSY, OIL LEVEL

main15301-B2061iKFVET..LA400201910

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005×2iKFVET..LA400201910

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89439HBRACKET, SENSOR

main89439-B2071iLA400201910

9004250122

main90042-50122

9004C30007

main9004C-30007

9155180610

main91551-80610

21 parts on this diagram · 2 diagrams in section
