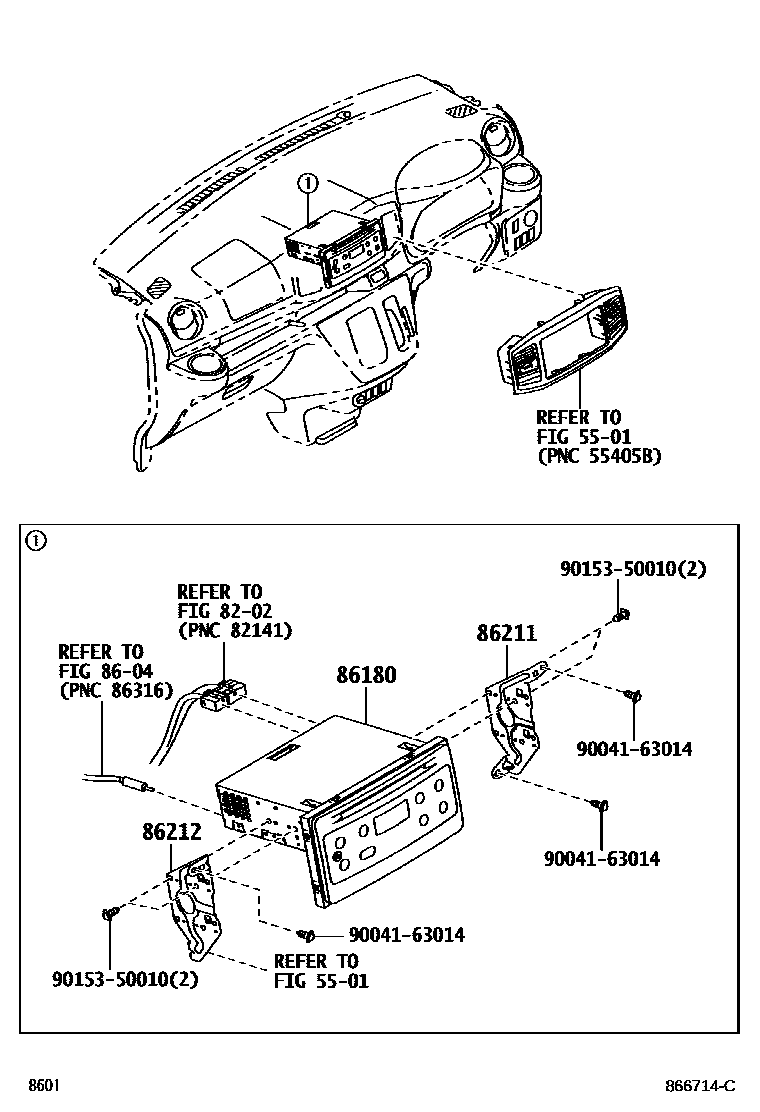

RADIO RECEIVER & AMPLIFIER & CONDENSER

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

8202WIRING & CLAMP

→ Go to FIG 82-02

8604ANTENNA

→ Go to FIG 86-04

86180TUNER ASSY, STEREO COMPONENT

main86180-B2770iLA350,360201705-201809

main86180-B2771iLA350,360201810-202204

86211BRACKET, RADIO, NO.1

main86211-B2460iLA350,360201705-202204

86212BRACKET, RADIO, NO.2

main86212-B2460iLA350,360201705-202204

9004163014

main90041-63014

9015350010

main90153-50010

8 parts on this diagram · 1 diagram in section
