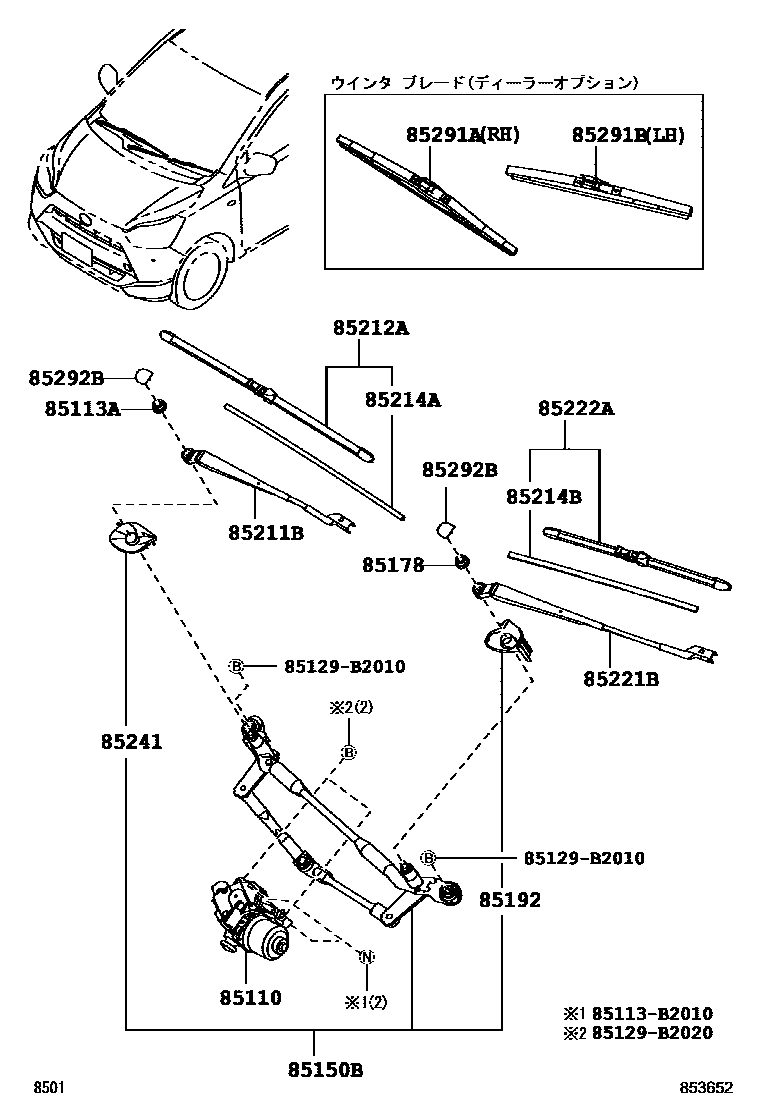

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-B5010iLA350,360201705

85113ANUT, FR WIPER

main81128-87205iLA350,360201705-202112

main90041-79379iLA350,360202201

85150BLINK ASSY, WIPER

main85150-B2410iLA350,360201705

85178NUT (FOR FRONT WIPER ARM SETTING)

main81128-87205iLA350,360201705-202112

main90041-79379iLA350,360202201

85192COVER, WINDSHIELD WIPER ARM

main85228-B2010iLA350,360201705

85211BARM, FRONT WIPER, RH

main85211-B2360iLA350,360201705

85212ABLADE, FR WIPER, RH

main85212-B2230iLA350,360201705

85214ARUBBER, WIPER, RH

main85214-B2350iLA350,360201705

85214BRUBBER, WIPER, LH

main85214-B2280iLA350,360201705

85221BARM, FRONT WIPER, LH

main85221-B2360iLA350,360201705

85222ABLADE, FR WIPER, LH

main85222-B2260iLA350,360201705

85241COVER, WINDSHIELD WIPER

main85218-B2050iLA350,360201705

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-B2330iLA350,360201705

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-B2410iLA350,360201705

85292BCAP, FRONT WIPER ARM HEAD

main85292-12020×2iLA350,360201705

85113B2010FRAME, WINDSHIELD WIPER MOTOR END

main85113-B2010

85129B2010COIL, WINDSHIELD WIPER MOTOR FIELD

main85129-B2010

85129B2020COIL, WINDSHIELD WIPER MOTOR FIELD

main85129-B2020

18 parts on this diagram · 1 diagram in section
