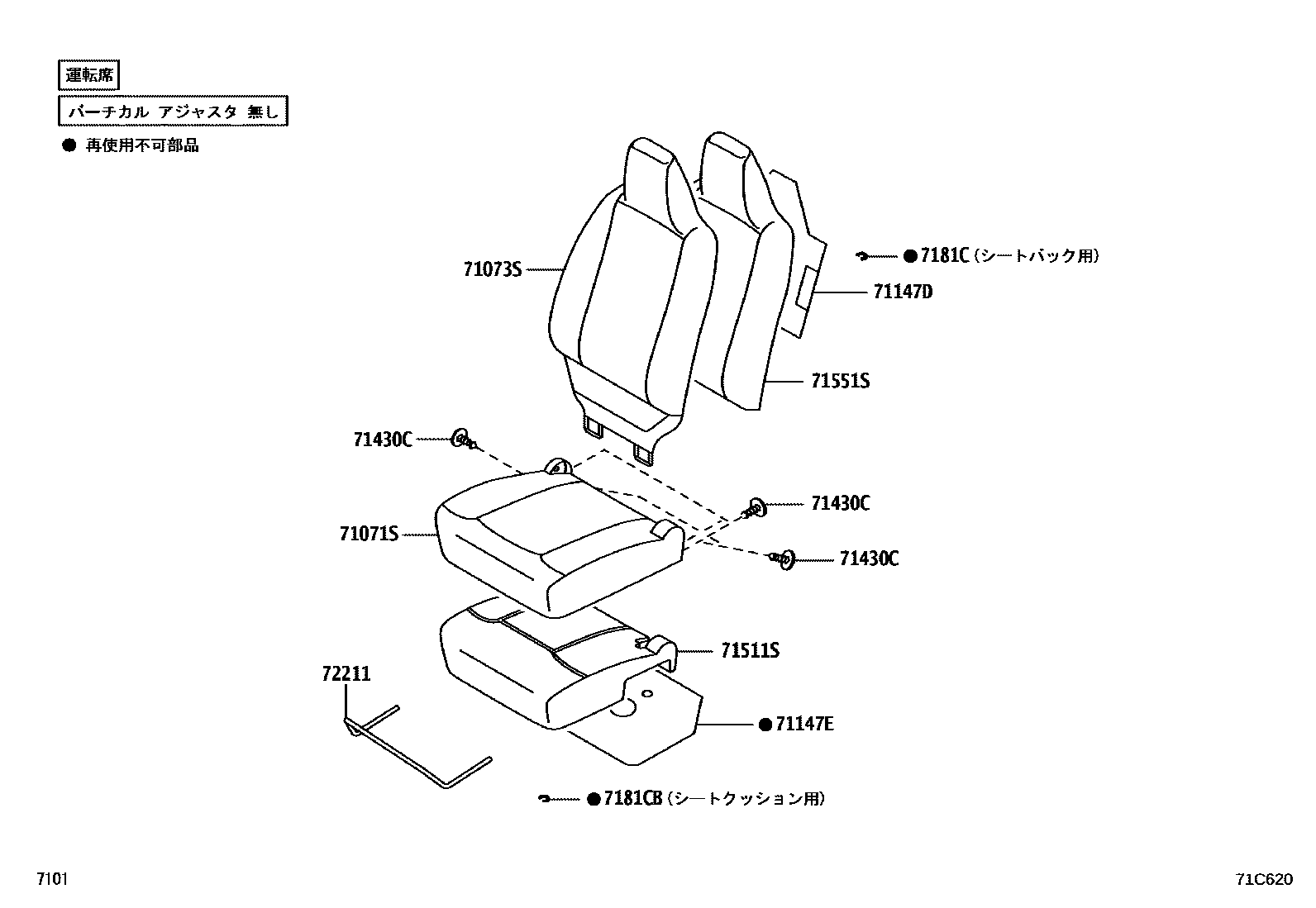

FRONT SEAT & SEAT TRACK

0001 1������(������������ ��) 0002 1������(������������ ��) 0003 1������(������������ ��) 0004 1������(������������ ��) 0005 1������� 0006 1�������

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-B2P30-B1iLA350,360..B,L,X201705

LT. GRAY,TRIM2#

main71071-B2P40-B1iLA350,360..G201705

LT. GRAY,TRIM2#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71027-B2E20-B1iLA350,360..B,L,X201705

LT. GRAY,TRIM2#

main71027-B2E30-B1iLA350,360..G201705

LT. GRAY,TRIM2#

71147DSILENCER, SEAT SPRING, RH(FOR SEATBACK)

main71147-B2110iLA350,360201705

71147ESILENCER, SEAT SPRING, RH(FOR SEAT CUSHION)

main71147-B2130iLA350,360201705

71430CCLIP

main90044-68185-B1×6iLA350,360..B,L,X; LA350,360..G201705

DK.GRAY

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-B2A50iLA350,360201705

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-B2C50iLA350,360..B,L,X201705

main71505-B2C60iLA350,360..G201705

7181CRING, HOG, SMALL (FOR FRONT SEATBACK)

main71812-87201×5iLA350,360..B,L,X201705

7181CBRING, HOG, SMALL (FOR FRONT SEAT CUSHION)

main71812-87201×3iLA350,360..G201705-201805

72211HANDLE, SEAT TRACK ADJUSTING

main72211-B2140iLA350,360201705

10 parts on this diagram · 6 diagrams in section
