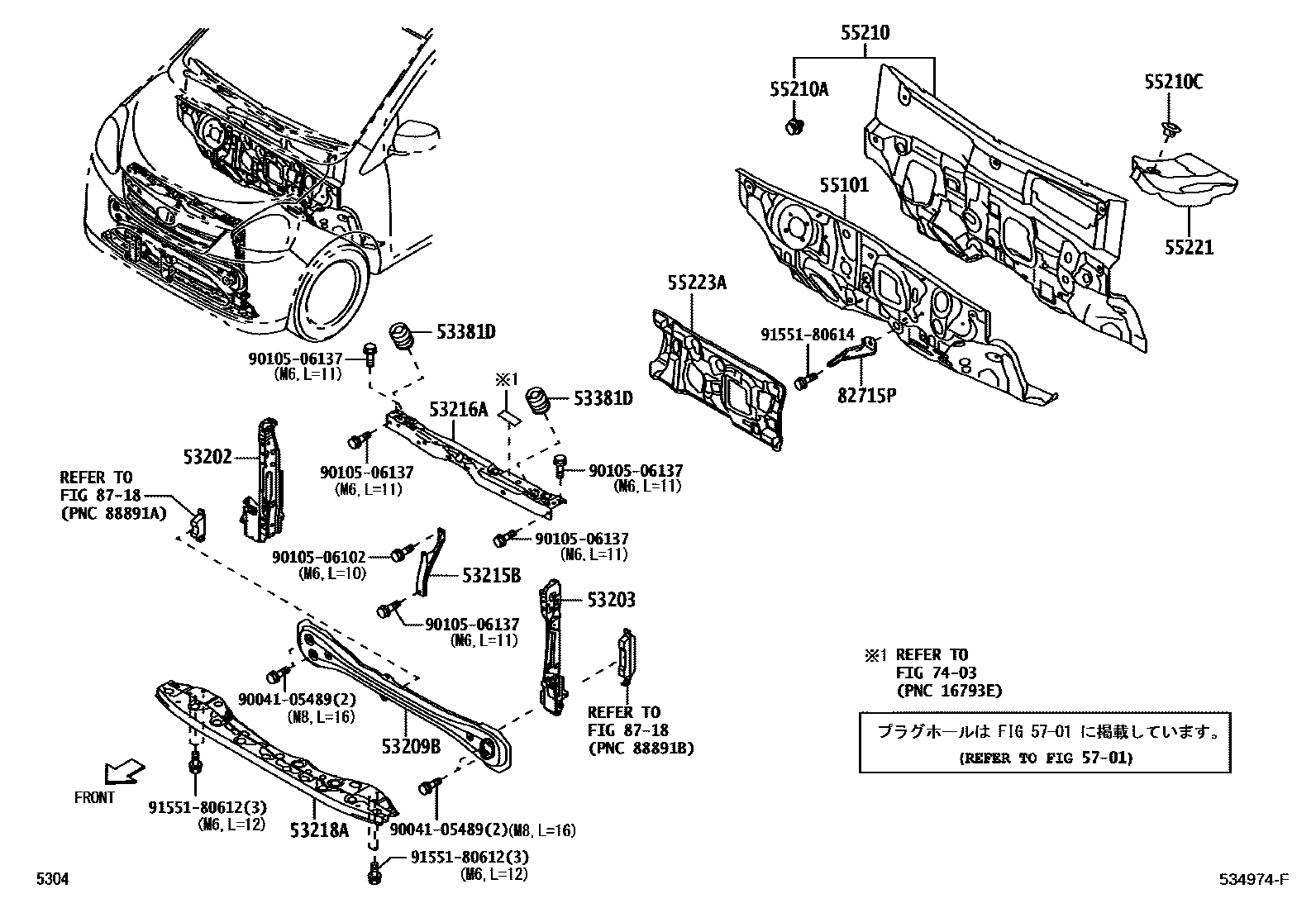

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-B2221iLA300,310201204-201307

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-B2191iLA300,310201204-201307

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-B2020iLA300,310201204-201307

53215BSUPPORT, HOOD LOCK

main53215-B2160iLA300,310201204-201307

53216ASUPPORT, RADIATOR, UPPER

main53216-B2171iLA300,310201204-201307

53218ASUPPORT, RADIATOR, LOWER

main53028-B2081supersedes 53028-B2251iLA300; LA310201204-201307

53381DBUMPER, HOOD TO FRONT SHROUD

main53381-97205×2iLA300,310201307

55101PANEL SUB-ASSY, DASH

main55101-B2670iLA300,310201204-201307

55210INSULATOR ASSY, DASH PANEL

main55210-B2270iLA300,310201205-201304

main55210-B2300iLA300,310201204-201205

main55210-B2360iLA300,310201305-201307

55210ACLIP

main90467-11122×5iLA300,310201204-201307

55210CCLIP

main58199-B2010-C0iLA300,310201204-201307

BLACK

55221BOARD, DASH PANEL SILENCER

main55221-B2010iLA300,310201204-201307

55223AINSULATOR, DASH PANEL, OUTER

main55223-B2110iLA300,310..G,GF,L,LF,X,XF201204-201307

5701HOLE PLUG

→ Go to FIG 57-01

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

82715PBRACKET, WIRING HARNESS CLAMP

main82715-B2160iLA300,310201204-201307

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

9004105489

main90041-05489

9010506102

main90105-06102

9010506137

main90105-06137

9155180612

main91551-80612

9155180614

main91551-80614

22 parts on this diagram · 2 diagrams in section
