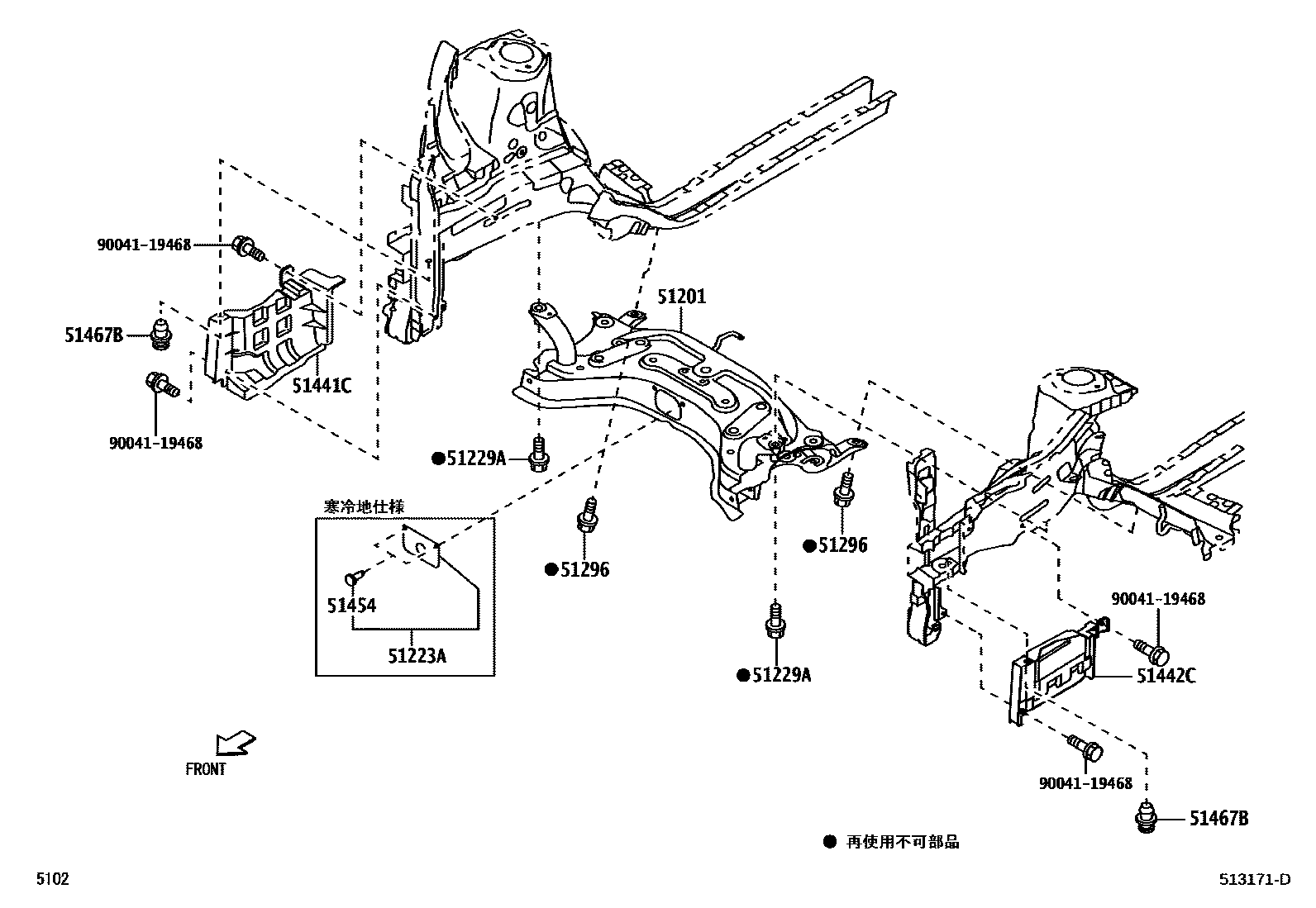

SUSPENSION CROSSMEMBER & UNDER COVER

0001 12WD 0002 14WD

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-B2051iLA310201204-201307

main51201-B2100iLA300201204-201206

main51201-B2150iLA300201206-201307

main51201-B2170iLA300201307-201704

main51201-B2210iLA310201607-201704

51223ACOVER, ENGINE MOUNTING HOLE

main51223-B2070iLA300201204-201307

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main90041-20053×2iLA310201204-201307

main90041-20263×2iLA300201307-201704

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main90041-19948×2iLA300,310201204-201307

51441CCOVER, ENGINE UNDER, RH

main51441-B2030iLA300,310201204-201307

51442CCOVER, ENGINE UNDER, LH

main51442-B2030iLA300,310201204-201307

51454CLIP

main90044-67517×2iLA300201204-201307

51467BRETAINER, ENGINE UNDER COVER

main51467-B2020×2iLA300,310201204-201307

9004119468

main90041-19468

9 parts on this diagram · 2 diagrams in section
