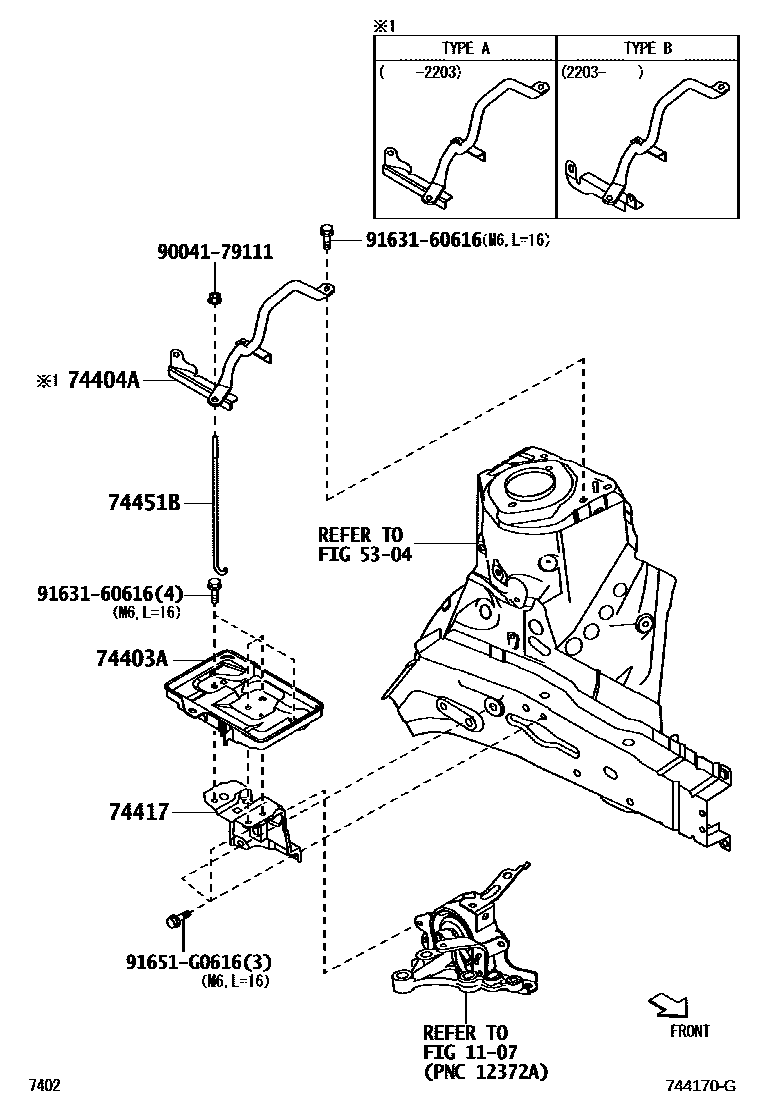

BATTERY CARRIER

1107MOUNTING

→ Go to FIG 11-07

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

74403ACARRIER SUB-ASSY, BATTERY

main74403-B2100iLA250,260..CG,CGT,CX,S201609-202001

74404ACLAMP SUB-ASSY, BATTERY

main74404-B2190iLA250,260201609-202203

main74404-B2230iLA250,260202203

74417BRACKET, BATTERY CARRIER

main74417-B2040iLA250,260..CG,CGT,CX,S201609-202001

74451BBOLT, BATTERY CLAMP

main74451-B2010iLA250,260..CG,CGT,CX,S201609-202001

9004179111

main90041-79111

9163160616

main91631-60616

91651G0616

main91651-G0616

9 parts on this diagram · 1 diagram in section
