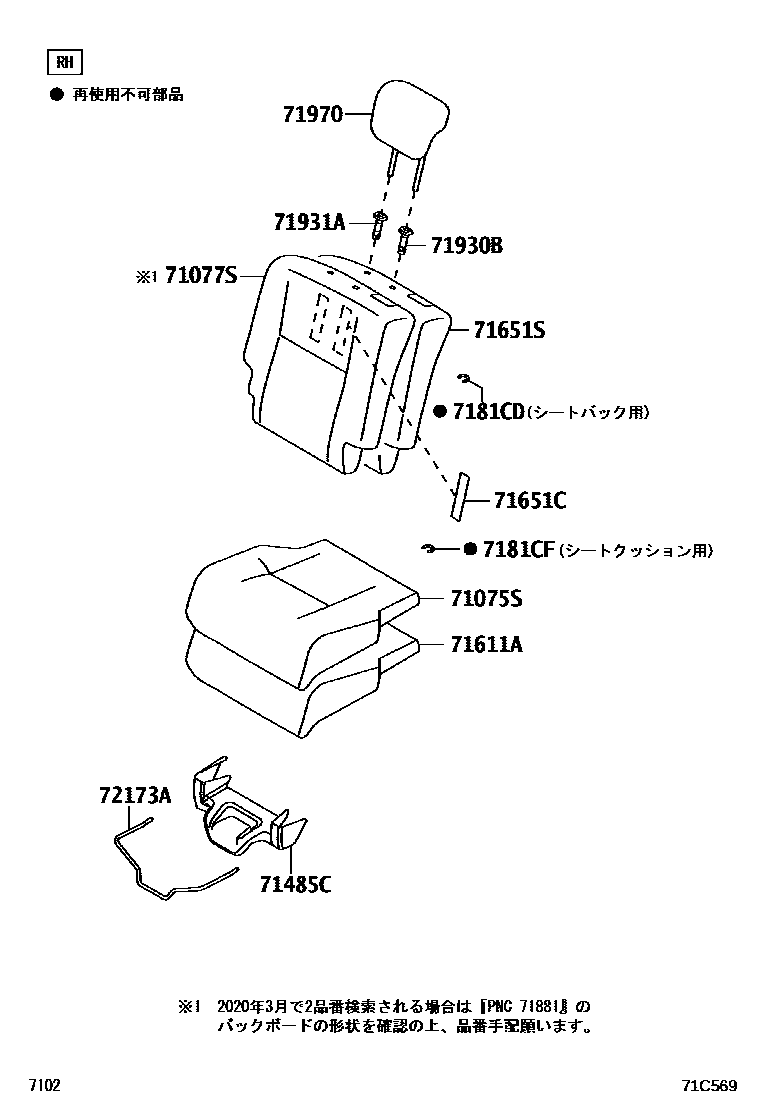

REAR SEAT & SEAT TRACK

0001 1RH 0002 1RH 0003 1RH 0004 1LH 0005 1LH 0006 1LH

71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

main71075-B2J50-C0iLA250,260..CG,CGT,CX; LA250,260..FG,FGT,FX201609-201706

main71075-B2J51-C0iLA250,260..CG,CGT,CX; LA250,260..FG,FGT,FX201707-201709

main71075-B2J52-C0iLA250,260..CG,CGT,CX201709-202001

BLACK,TRIM1#,2#

main71075-B2J60-E0iLA250,260..FG,FGT,FX201609-201709

GREGE,TRIM4#

main71075-B2J61-E0iLA250,260..FG,FGT,FX201709

GREGE,TRIM4#

main71075-B2J70-C1iLA250,260..CG,CGT; LA250,260..S201609-201709

main71075-B2K90iLA250,260..CG,CGT; LA250,260..S201709-201710

main71075-B2K90-C1iLA250,260..CG,CGT; LA250,260..S201710-202001

main71075-B2J80-A0iLA250,260..FG,FGT; LA250,260..S201609-201710

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-B2G90-C2iLA250,260..CG,CGT,CX; LA250,260..FG,FGT,FX201609-201706

main71077-B2G91-C2iLA250,260..CG,CGT,CX201707-202001

BLACK,TRIM1#,2#

main71077-B2L60-E2iLA250,260..FG,FGT,FX201609-202003

main71077-B2L61-E2iLA250,260202003

main71077-B2L70-C3iLA250,260..CG,CGT; LA250,260..S201609-201709

main71077-B2N20iLA250,260..CG,CGT; LA250,260..S201709-201710

main71077-B2N20-C1iLA250,260..CG,CGT; LA250,260..S201710-202001

main71077-B2L80-A2iLA250,260..FG,FGT; LA250,260..S201609-201710

main71077-B2N21-C1iLA250,260..FG,FGT202003

71485CCOVER, REAR SEAT HINGE, RH

main71485-B2190-B0iLA250,260..CG,CGT,CX; LA250,260..FG,FGT,FX; LA250,260..S201609-201611

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,2#; DK.GRAY,TRIM1#,4#

main71485-B2190-C0iLA250,260..FG,FGT,FX201611-201710

BLACK,TRIM1#,4#

71611APAD, REAR SEAT CUSHION, RH

main71503-B2590iLA250,260201609

71651CPAD, REAR SEATBACK, A

main71618-B2010×2iLA250,260..CG,CGT,CX,S201609-202001

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71507-B2620iLA250,260201609

7181CDRING, HOG, SMALL (FOR REAR SEATBACK)

main71812-87201×3iLA250,260201609

7181CFRING, HOG, SMALL (FOR REAR SEAT CUSHION)

main71812-87201×6iLA250,260201609

71930BSUPPORT ASSY, REAR SEAT HEADREST

main71930-B2010-A0×2iLA250,260..FG,FGT; LA250,260..S201609-201710

WHITE,TRIM15; WHITE,TRIM17

main71930-B2010-B0×2iLA250,260..CG,CGT,CX; LA250,260..FG,FGT; LA250,260..FX; LA250,260..S201609-201611

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,2#; DK.GRAY,TRIM14; DK.GRAY,TRIM16

main71930-B2010-C1×2iLA250,260..CG,CGT,CX; LA250,260..S..PS2;LA250,260..FX..PS1201611-202001

BLACK,TRIM1#; BLACK,TRIM1#,2#

main71930-B2010-E1×2iLA250,260..FG,FGT,FX201609

LINEN BEIGE,TRIM4#

71931ASUPPORT, REAR SEAT HEADREST

main71931-B2010-A0×2iLA250,260..FG,FGT; LA250,260..S201609-201710

main71931-B2010-B0×2iLA250,260..CG,CGT,CX; LA250,260..FG,FGT; LA250,260..FX; LA250,260..S201609-201611

main71931-B2010-C1×2iLA250,260..CG,CGT,CX; LA250,260..S..PS2;LA250,260..FX..PS1201611-202001

main71931-B2010-E1×2iLA250,260..FG,FGT,FX201609

71970HEADREST ASSY, REAR SEAT

main71940-B2A40-C2×2iLA250,260..CG,CGT,CX201609-202001

BLACK,TRIM1#,2#

main71940-B2A50-E0×2iLA250,260..FG,FGT,FX201609

GREGE,TRIM4#

main71940-B2A60-C1×2iLA250,260..CG,CGT; LA250,260..S201609-201709

main71940-B2B70×2iLA250,260..CG,CGT; LA250,260..S201709-201710

main71940-B2B70-C1×2iLA250,260..CG,CGT; LA250,260..FG,FGT; LA250,260..S201710-201812

main71940-B2B70-C2×2iLA250,260..CG,CGT; LA250,260..S201812-202001

main71940-B2A70-A0×2iLA250,260..FG,FGT; LA250,260..S201609-201710

72173AHANDLE, REAR SEAT TRACK ADJUSTING, RH

main72173-B2100iLA250,260201609

12 parts on this diagram · 6 diagrams in section
