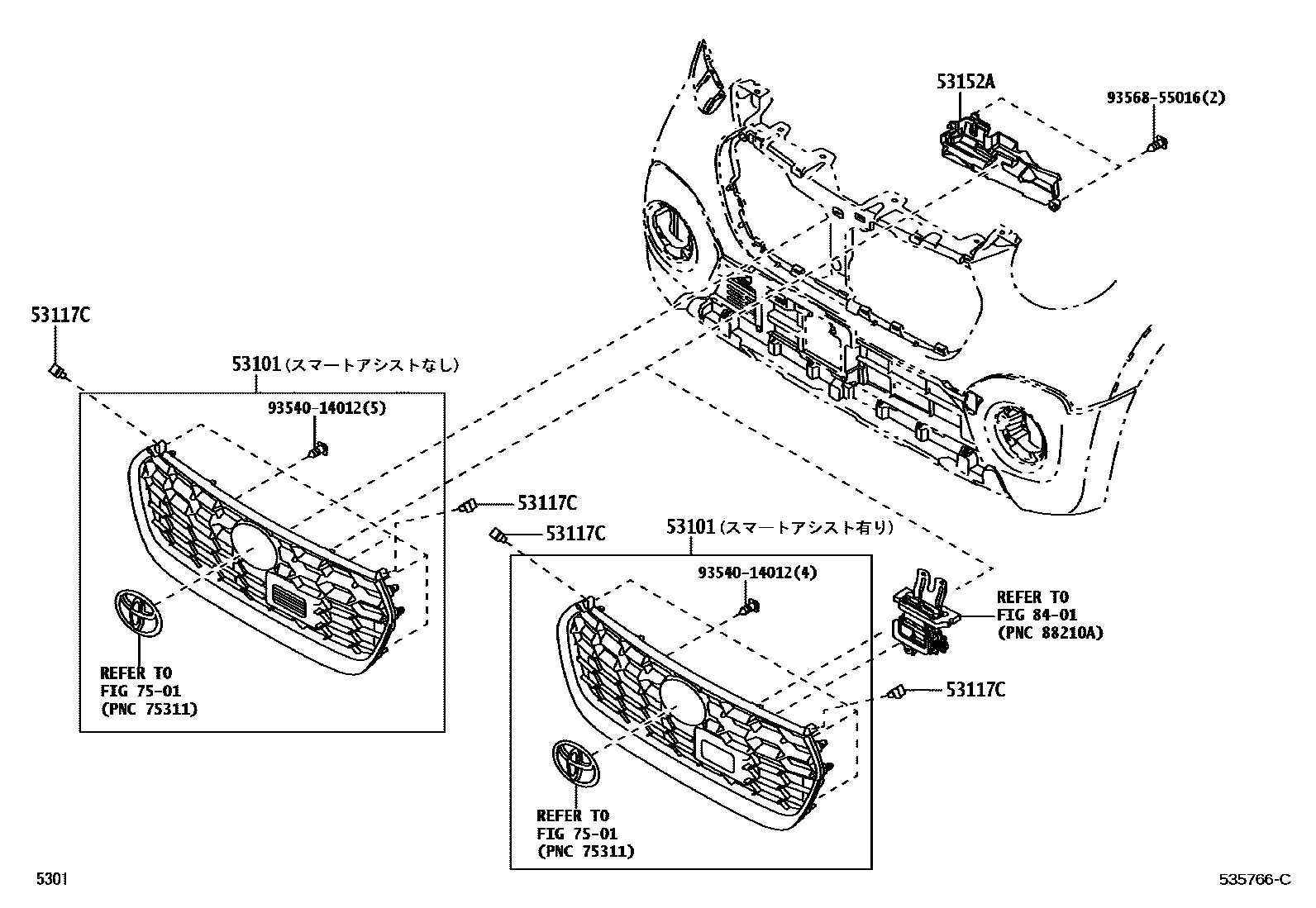

RADIATOR GRILLE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

53101GRILLE SUB-ASSY, RADIATOR

main53101-B2310-C0iLA250,260..S201609-201710

main53101-B2480-B0iLA250,260..CG,CGT,CX201609-201710

main53101-B2501iLA250,260..FG,FGT,FX201609-201710

main53101-B2550iLA250,260..CG,CGT,CX201710-202001

main53101-B2590iLA250,260..FG,FGT,FX201710-202306

main53101-B2630iLA250,260..S201710-202001

main53101-B2490-B0iLA250,260..CX201609-201710

main53101-B2511iLA250,260..FX201609-201710

53117CRETAINER, RADIATOR GRILLE, NO.1

main76854-87401×2iLA250,260..CG,CGT,CX,FG,FGT,FX201609

53152AGUIDE, RADIATOR GRILLE AIR

main53152-B2070iLA250,260..FG,FGT,FX,S201710-202306

main53152-B2090iLA250,260..CG,CGT,CX; LA250,260..FG,FGT,FX,S201609-201710

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9354014012

main93540-14012

9356855016

main93568-55016

7 parts on this diagram · 6 diagrams in section
