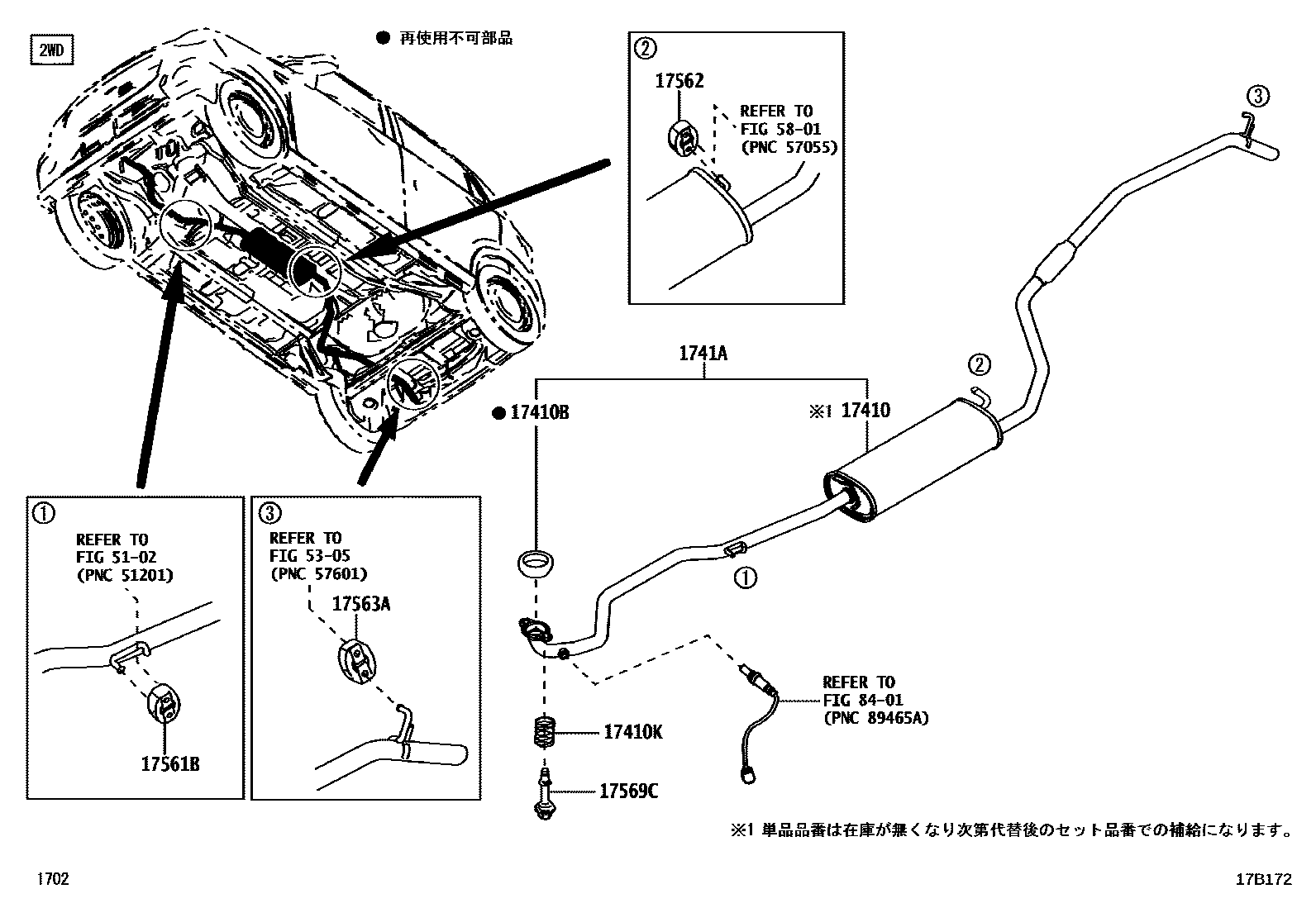

EXHAUST PIPE

0001 12WD 0002 14WD

17410PIPE ASSY, EXHAUST, FRONT

main17410-B2460iKFVE..LA250201609-201808

main17410-B2461iKFVE..LA250201809-201810

main17410-B2462iKFVE..LA250201810

main17410-B2470iKFVET..LA250201609-201906

main17410-B2471iKFVET..LA250201907

main17410-B2860iKFVE..LA260201609

main17410-B2870iKFVET..LA260201609

17410BGASKET, EXHAUST PIPE

main17451-B1020iKFV#..LA250,260..CG,CGT,CX,S201609-202001

17410KSPRING, EXHAUST PIPE

main17152-97201×2iKFV#..LA250,260..CG,CGT,CX,S201609-202001

1741APIPE SET, EXHAUST

main17410-B9030iKFVE..LA250..CG,CX201609-202001

main17410-B9040iKFVET..LA250..CGT,S201609-202001

main17410-B9200iKFVE..LA260..FG,FX201609

main17410-B9210iKFVET..LA260..CGT,S201609-202001

17561BSUPPORT, EXHAUST PIPE, NO.1

main17567-B2020iKFV#..LA250,260201609-202306

17562SUPPORT, EXHAUST PIPE, NO.2

main17567-B2020iKFV#..LA250,260201609-202306

17563ASUPPORT, EXHAUST PIPE, NO.3

main17567-B2020iKFV#..LA250,260201609-202306

17569CBOLT, EXHAUST PIPE SUPPORT

main17569-97201×2iKFV#..LA250,260..CG,CGT,CX,S201609-202001

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

12 parts on this diagram · 2 diagrams in section
