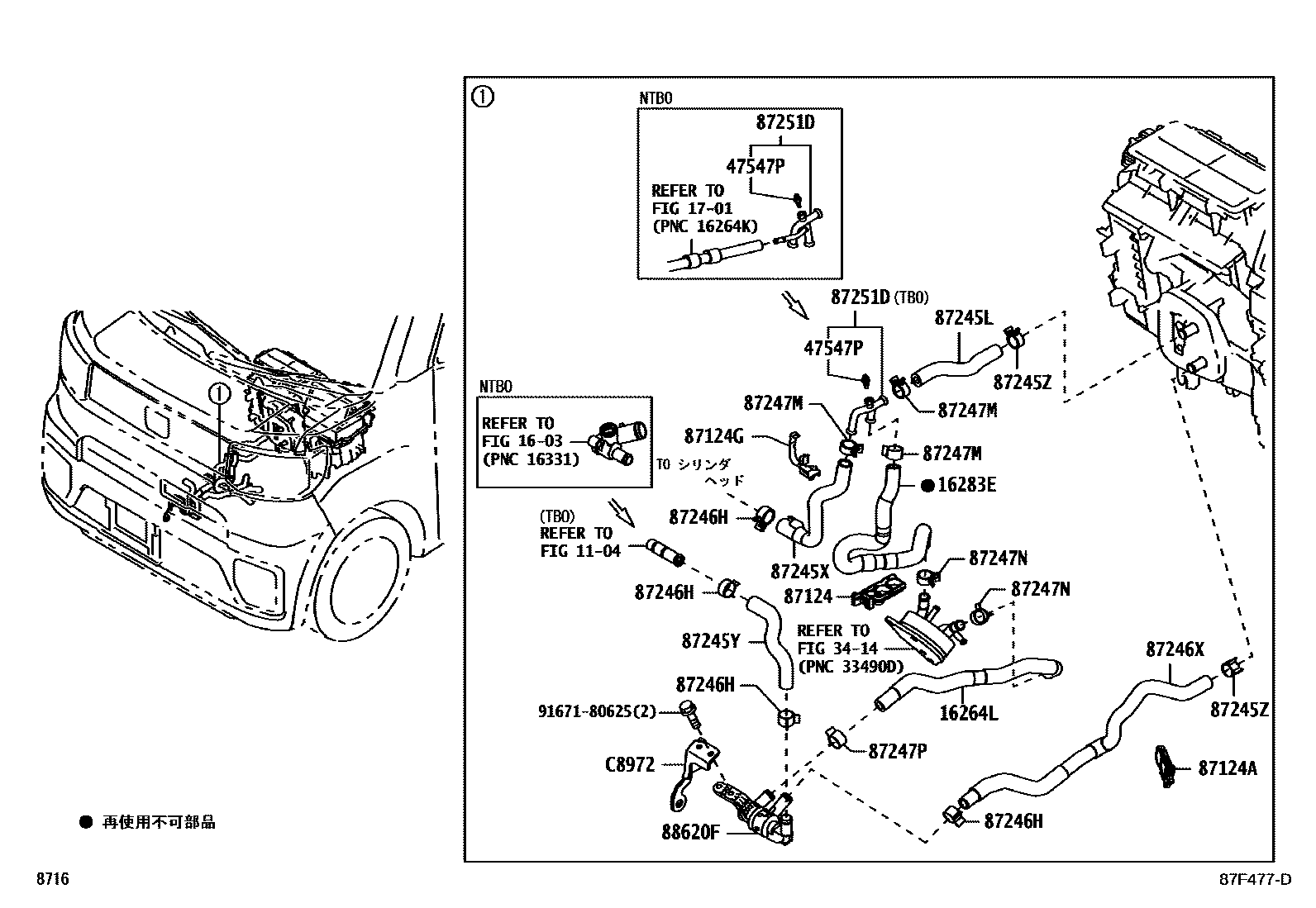

HEATING & AIR CONDITIONING - WATER PIPING

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16264LHOSE, WATER BY-PASS, NO.2

main16264-B2100iKFV#..LA700,710201507-201605

16283EHOSE, WATER BY-PASS, NO.6

main16261-B2160iKFV#..LA700,710201605

1701MANIFOLD

→ Go to FIG 17-01

3414OIL COOLER & TUBE(CVT)

→ Go to FIG 34-14

47547PPLUG, BLEEDER(FOR WATER JOINT)

main47547-B2030iLA700,710201605

87124CLAMP, HEATER

main87124-B2070iLA700,710201605

87124ACLAMP, HEATER

main87124-B2080iLA700,710201605

87124GCLAMP, HEATER HOSE, NO.2

main87124-B2060iLA700,710201605

87245LHOSE, HEATER WATER, L

main87245-B2220iLA700,710201507-201605

main87245-B2240iLA700,710201605

87245XHOSE, HEATER WATER

main87242-B2060iLA700,710..NTBO201605

main87242-B2070iLA700,710..TBO201507-201605

main87242-B2090iLA700,710..NTBO201507-201605

main87242-B2150iLA700,710..TBO201605

87245YHOSE, HEATER WATER

main87242-B2110iLA700,710..NTBO201605

main87242-B2140iLA700,710..TBO201507-201605

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main96136-42101×2iLA700,710201605

87246HCLIP OR CLAMP(FOR HEATER WATER HOSE)

main96136-42501×4iLA700,710201605

87246XHOSE, HEATER WATER

main87246-B2170iLA700,710201507-201605

main87246-B2270iLA700,710201605

87247MCLIP, HOSE

main90044-67472×3iLA700,710201605

87247NCLIP, HOSE

main96136-42101×2iLA700,710201605

87247PCLIP, HOSE

main96136-42501iLA700,710201605

87251DJOINT, WATER, NO.1

main16035-B2030iLA700,710..TBO201605

main16035-B2040iLA700,710..NTBO201605

88620FTHERMOSTAT ASSY

main88620-B2030iLA700,710201605

C8972BRACKET, THERMOSTAT

mainC8972B2020iLA700,710201605-201905

mainC8972B2021iLA700,710201906

9167180625

main91671-80625

23 parts on this diagram · 1 diagram in section
